American Dryer Corporation

88 Currant Road / Fall River, MA 02720-4781

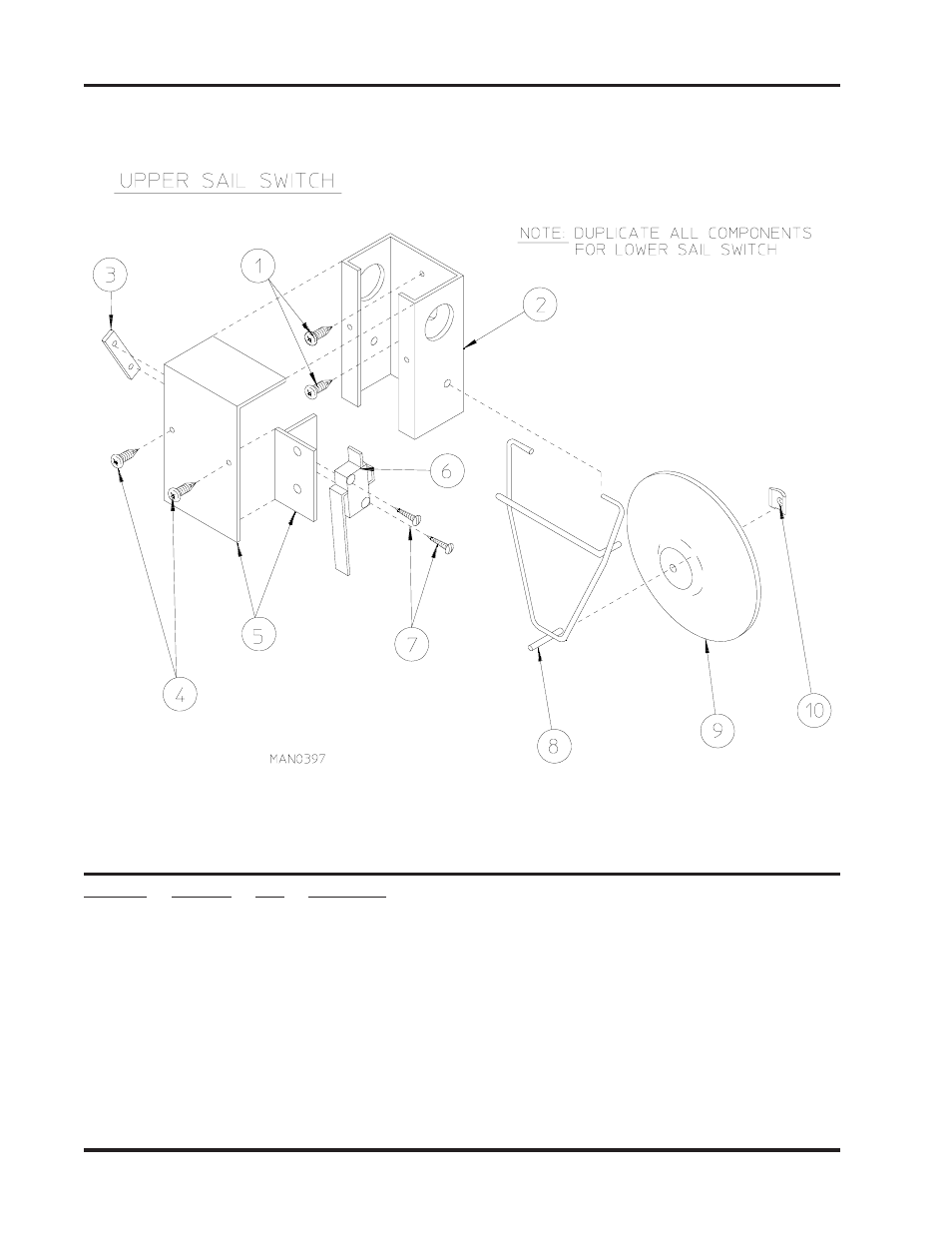

Sail Switch Assembly

Illus. No.

Part No.

Qty.

Description

1

150301

2

#8-18 x 7/16” Phillips Pan Head TEK Screw

2

802803

1

Sail Switch Box Assembly
(includes illus. nos. 2 through 10)

3

154004

1

Twin Speed Nut

4

150300

2

#10-16 x 1/2” Hex Washer TEK Screw

5

802799

1

Sail Switch Box Cover and Bracket

6

122200

1

Sail Switch

7

150303

2

#4 x 3/4” Pan Head Machine Screw

8

105500

1

Sail Switch Actuator Rod

9

319202

1

Sail Switch Damper

10

154002

1

1/8” Push On Fastener
