4
2.3 The rear ports
Power
(jack) Connect the supplied power adapter to this jack
Console
(port) Connect the supplied Null type RS-232 cable to this
port when connecting to a PC’s RS-232 port (9-pin
serial port).
ISDN So
(RJ-45
connector) Connect an RJ-45 cable to this port when
connecting to the ISDN.
LAN
(RJ-45
connector) Connect an UTP Ethernet cable to this port when
connecting to a LAN such as an office or home
network.

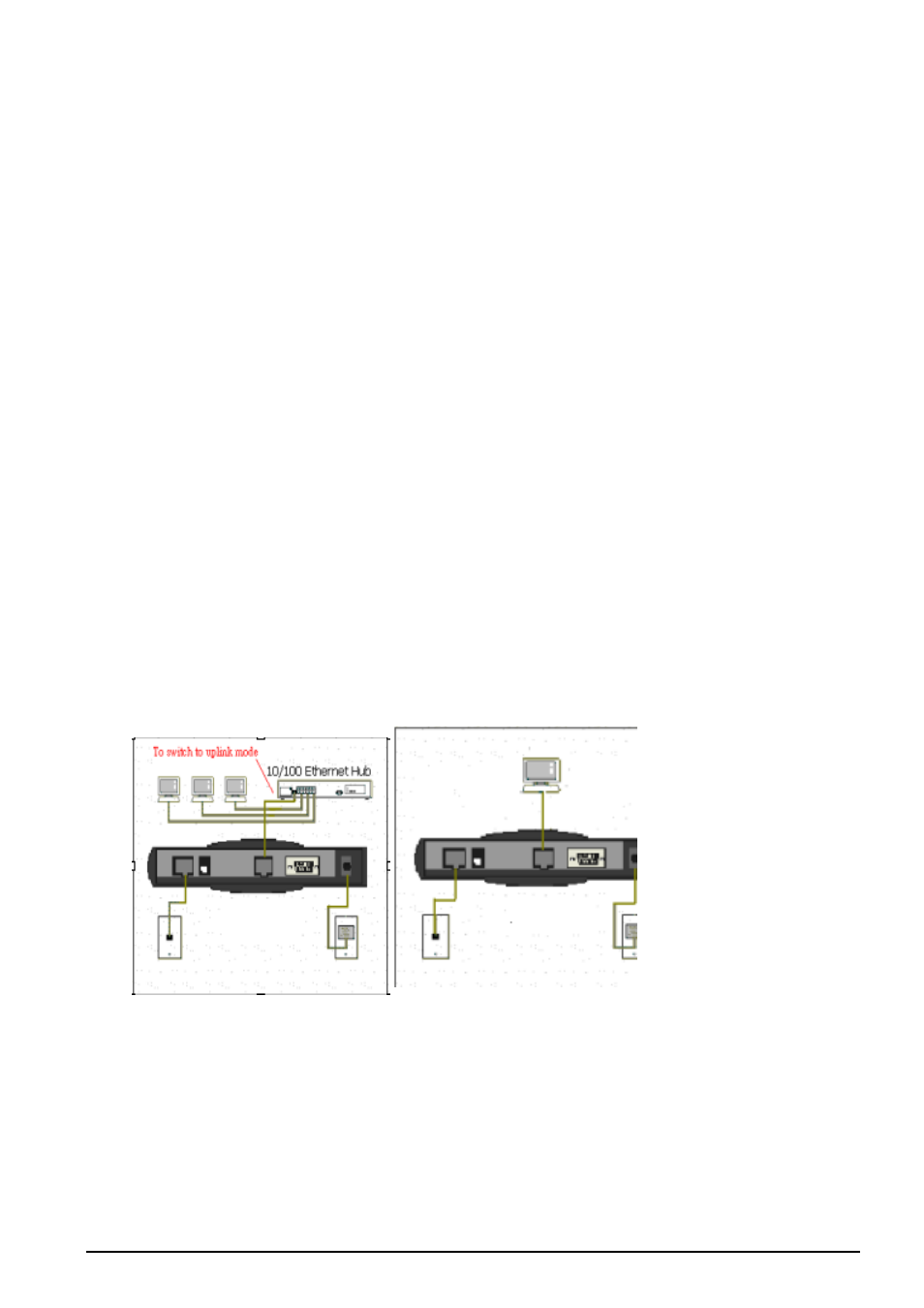

2.4 Cabling
Now you should be ready to connect your ISDN Router on your LAN and ISDN wall jacks. Follow these
steps to install:
˙ Attach the ISDN line to the ISDN connector (S/T interface).
˙
Connect the PC to the RJ-45 LAN connector. Two or more PCs can connect to a multi-port Hub first and
then uplink (cascade) port on the hub must be connected to ISDN Router port.
˙Plug the power adapter into a wall outlet and into the AC connector on the back of ISDN Router.
˙ The Auxiliary connector is only used to connect a terminal to run the Command Line Interface using
the null modem cable. (This is an optional connection.)
