18
3.2.9 Add or Edit IP Address Translation

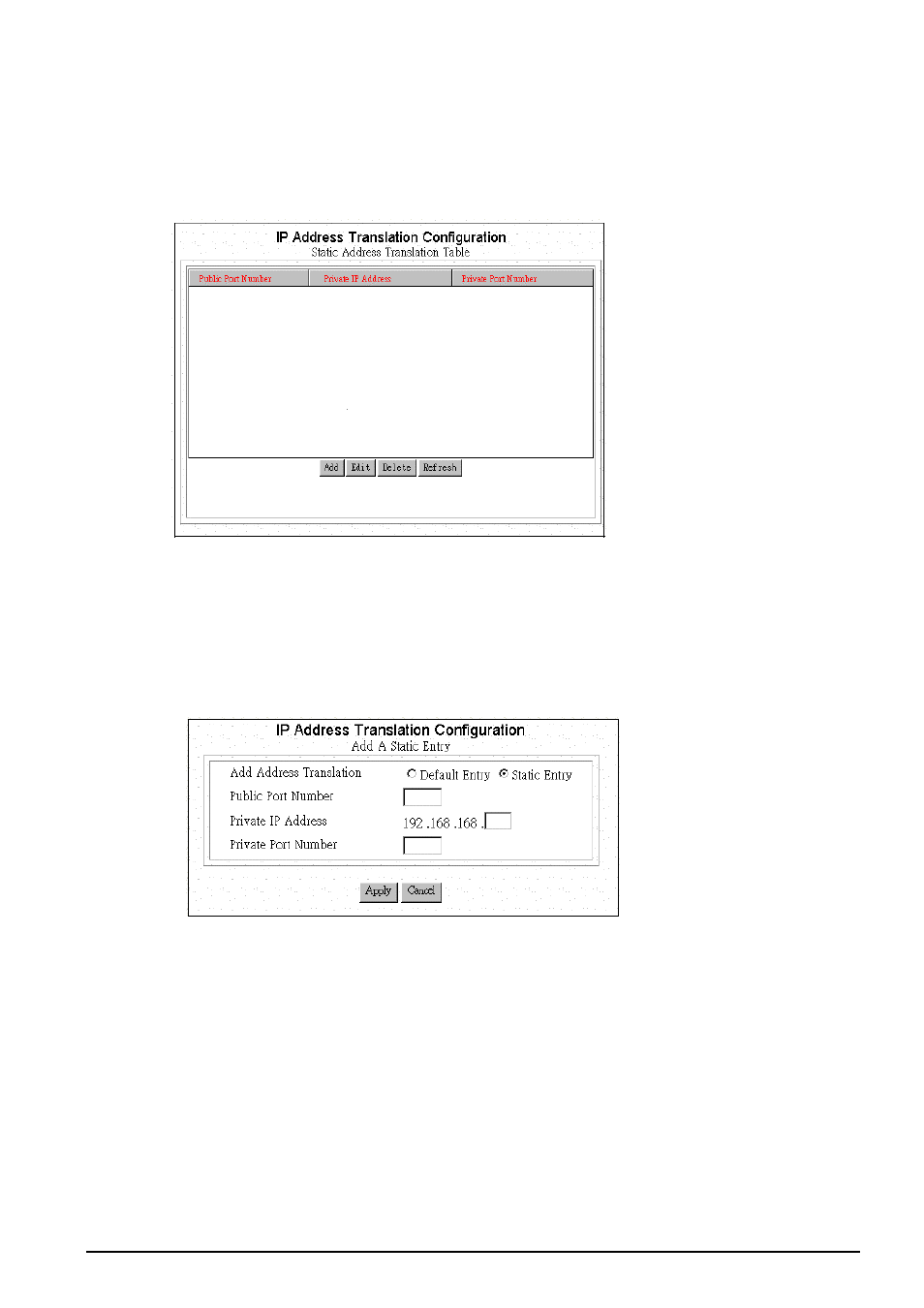

Step 1: Click Address Translation button in the Advanced Internet Access Setup screen. The following
IP Address Translation Configuration screen will appear.
Step 2: Click Add for adding a set of IP address translation, or click Edit for editing an existing set of IP
address translation after selecting the set of IP address translation that you want to edit. The Following
screen will appear.
Step 3: Enter the following parameters.
Add Address Translation: Available options are Default Enter and Static Entry.
Public Port Number: The public port number corresponding to the service that the specific server
provides.
Private IP Address: The private IP address that you want to assign to the server.
