Atlantis Land ISDN Router with 10/100 LAN port ATLMMR MNE01 User Manual

Page 27

STAC Compression: allows outgoing data to be compressed to achieve higher throughput, and
compressed incoming data to be recognized. The ability to use compression depends on the capabilities of
the ISP.

Idle Timeout: the number of seconds of inactivity over the connection. When this value is reached, it
will disconnect the call. You can set the idle timeout from 0 to 3600 seconds. The default setting is 120
seconds. If you select 0, the connection will never time out.

Enable IP:

IP RIP:

Remote IP Address:

Remote IP Netmask:

Enable Bridging:

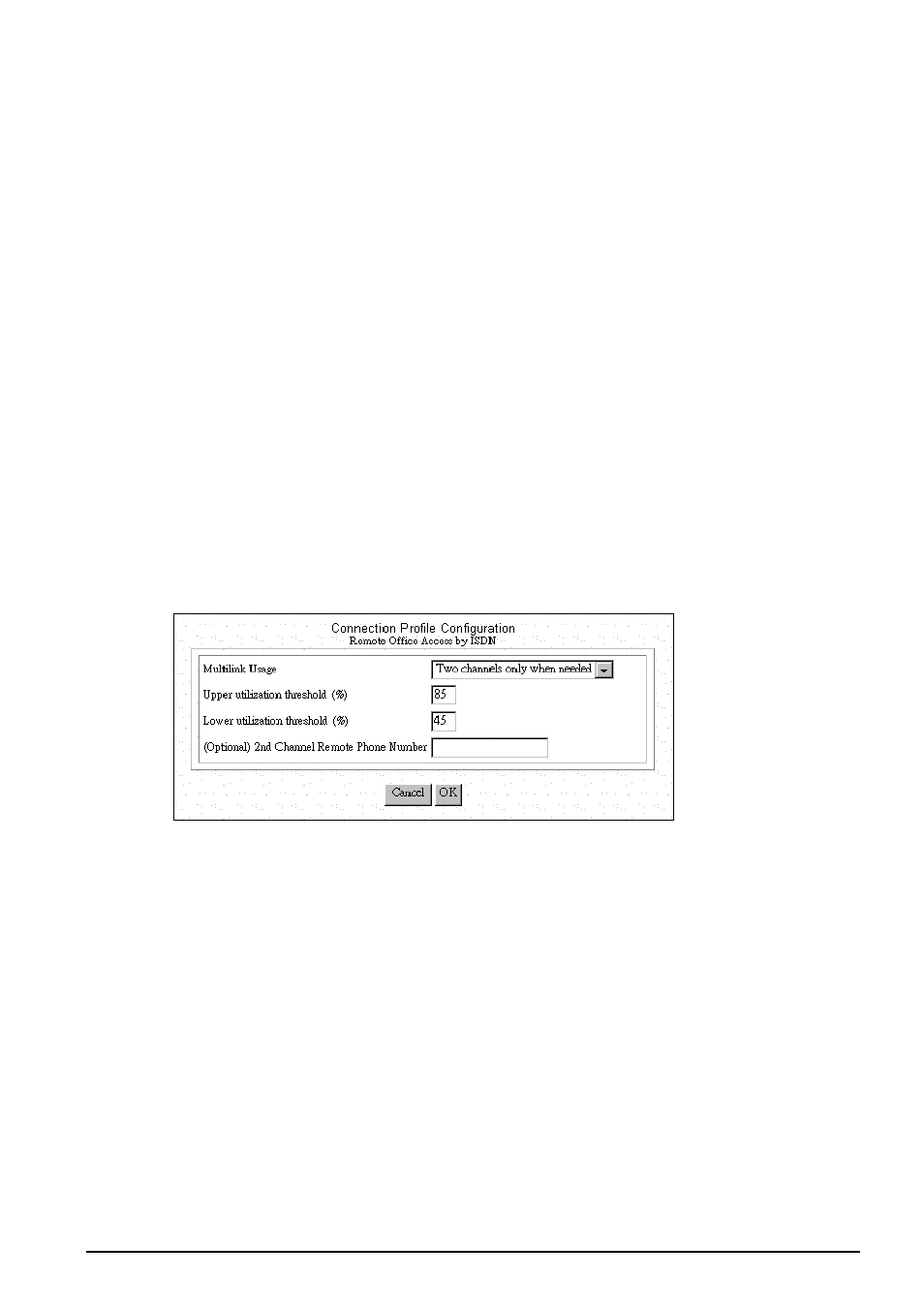

Step 2: If advanced configuration is required for the operation on the ISDN, and its load sharing
capabilities, then click Multilink. Alternatively skip to step 4.

Step 3: Click OK after completing the parameters in the following windows.

Step 4: Skip to step 6 or click Alternative Numbers if it is required to set more than one choice of
remote phone numbers. The screen will appears as follows,
