19
Private Port Number: The private port number corresponding to the service that the specific server
provides. Public Port Number and Private Port Number should be the same.
Step 4: Click Apply.
Delete a Set of IP Address Translation

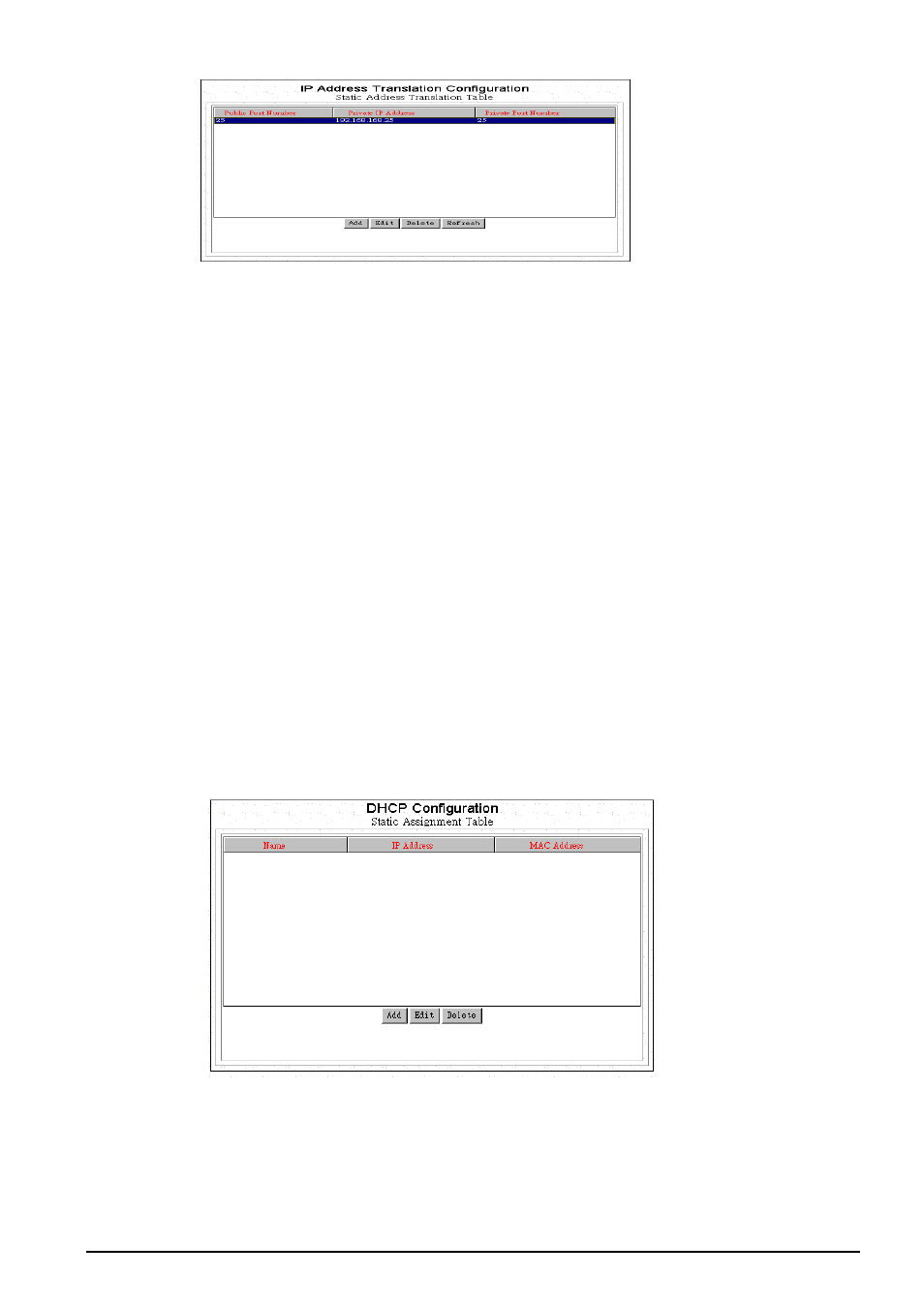

Step 1: Select the set of IP address translation that you want to delete from the IP Address Translation
Configuration screen.
Step 2: Click Edit.
3.2.10 Static DHCP Configuration
By built-in DHCP feature, the device can automatically assign a private IP address to each PC or
workstation in the LAN. But under some situations, you need to set a static private IP address for certain PCs or
workstations. Follow the steps to assign a static private IP address to a PC or a workstation.
Add or Edit a Set of static private IP address
Step 1: Click Static DHCP from Advanced Internet Access Setup Screen. The following screen will
appear.
Step 2: Click Add for adding a set of static private IP address, or click Edit for editing a existing set of
static private IP address after selecting the set of static private IP address. The following screen will
appear.
