Installing and Configuring the 82350B
20
82350B Installation and Configuration Guide

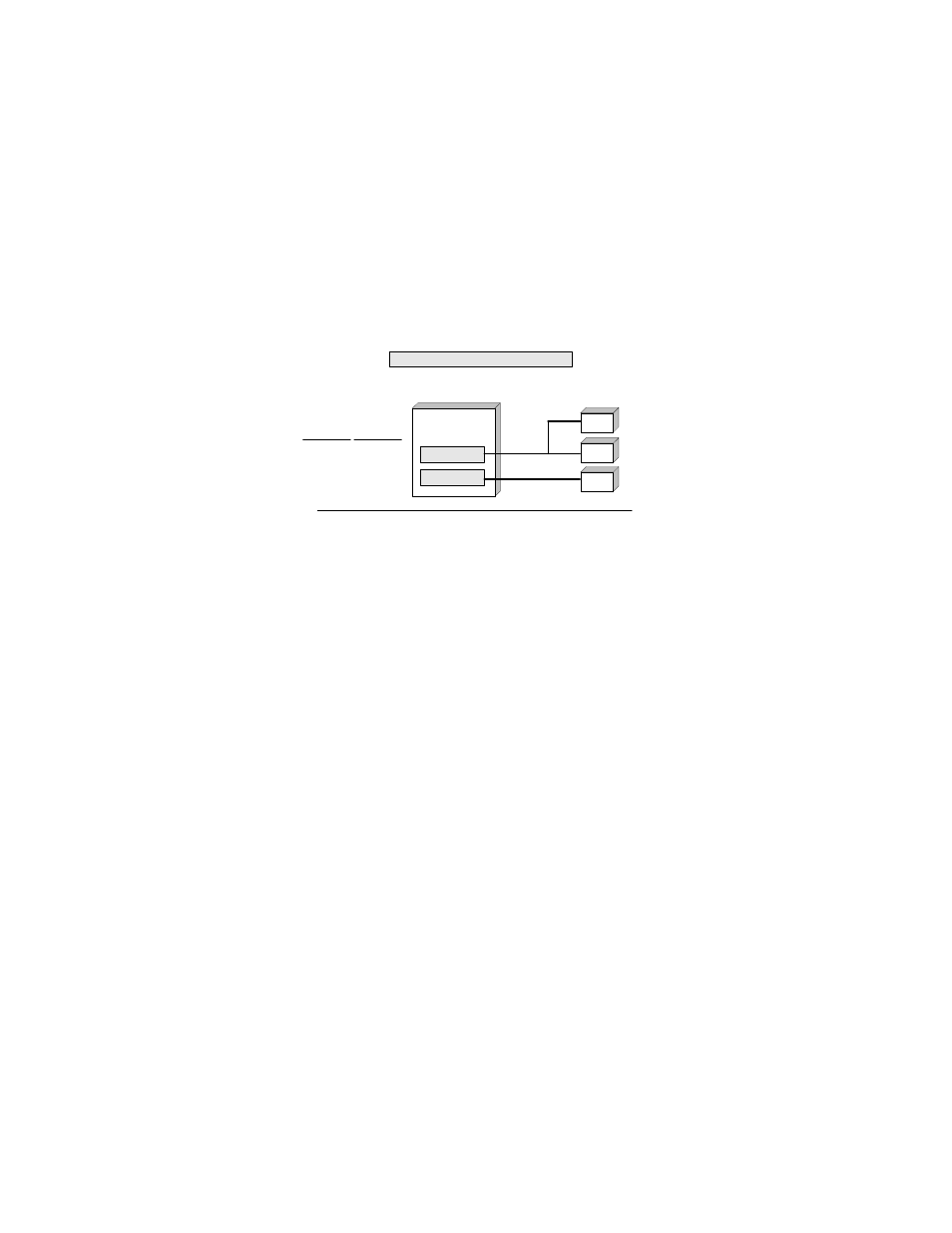

Figure 1-14 Interface configuration for multiple instruments
5
82350 GPIB Card #1
Windows PC
3
3
GPIB Instruments
GPIB Cable
Interface VISA/SICL IDs
82350 GPIB Card #2
VISA Interface ID SICL Interface ID
"GPIB0" "gpib0"
"GPIB1" "gpib1"
VISA/SICL Addressing
VISA: viOpen (... "GPIB0::5::INSTR"...)
viOpen (... "GPIB0::3::INSTR"...)
viOpen (... "GPIB1::3::INSTR"...)
SICL: iopen ("gpib0, 5")
iopen ("gpib0,3")
iopen ("gpib1,3")
GPIB Interface (82350 PCI GPIB Cards)
Open IO path to GPIB instrument at address 5 using 82350 Card #1
Open IO path to GPIB instrument at address 3 using 82350 Card #1
Open IO path to GPIB instrument at address 3 using 82350 Card #2
Open IO path to GPIB instrument at address 5 using 82350 Card #1
Open IO path to GPIB instrument at address 3 using 82350 Card #1
Open IO path to GPIB instrument at address 3 using 82350 Card #2
