1 Installing and Configuring the 82350B
2 82350B Installation and Configuration Guide
Getting Started
In this guide, an 82350B GPIB Interface System is defined as a
system in which GPIB instruments are connected via GPIB
cables to an 82350B PCI GPIB Interface Card that is installed in
a Windows PC.

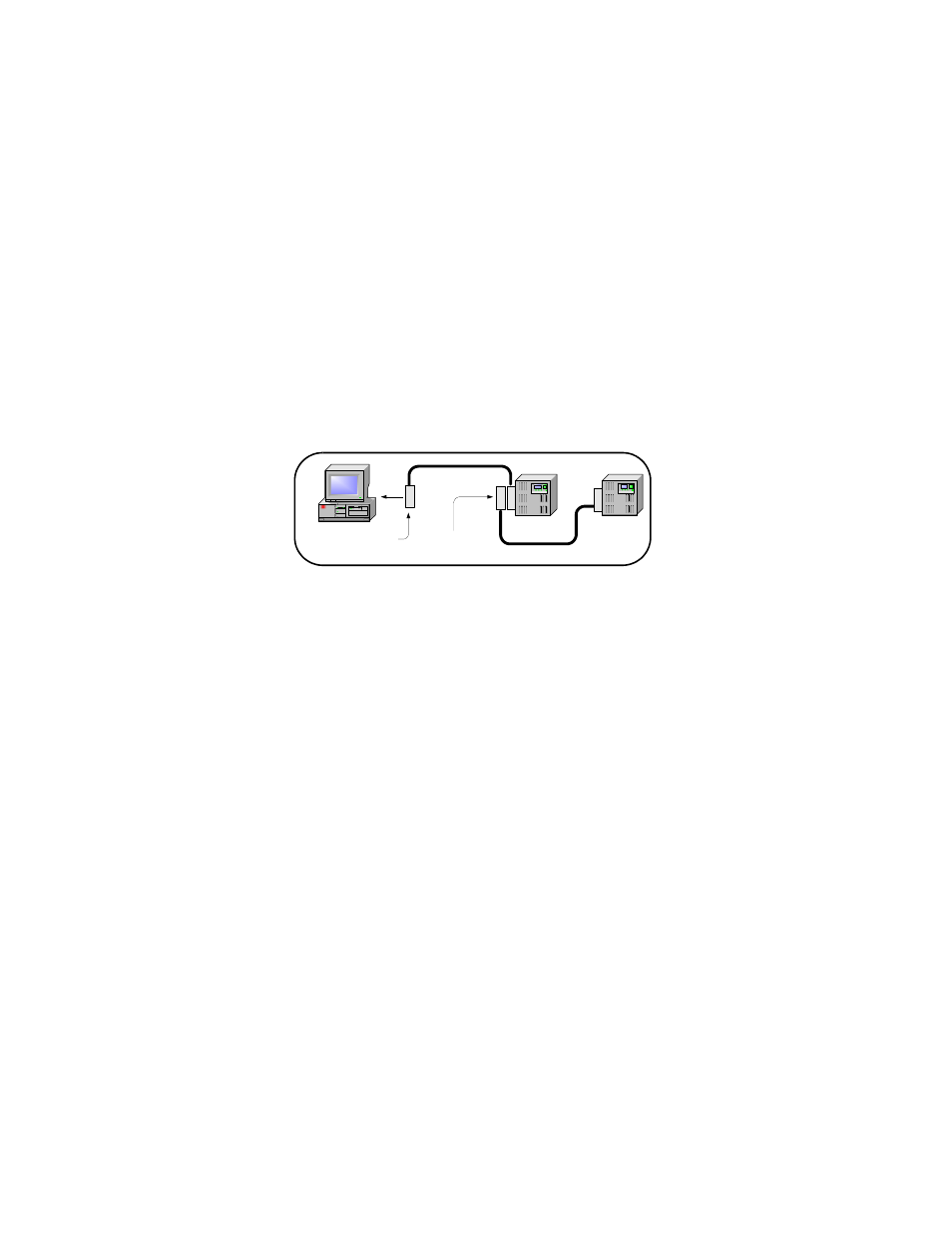

Figure 1-1 shows a typical system.
Figure 1-1 Typical configuration system
Use the following sequence of steps as a guide as you set up
your GPIB system. See the associated steps if you need more
details. See
Chapter 2 , “Troubleshooting Overview“ if you need
additional information on setting up the 82350B or
GPIB instruments.
PC Instrument
GPIB Cable
Connect to 82350B GPIB
Interface Card installed in PC.
Instrument
Connect to GPIB
port on instrument.
