3.1 Physical Setup
Attach an antenna to the NL240’s antenna connector. Using the supplied serial
cable, connect the NL240’s CS I/O port to the datalogger’s CS I/O port.
Alternatively, power the NL240 through the barrel-connector jack located on
the edge of the device. Ensure that the device is powered up by inspecting the
Power LED.

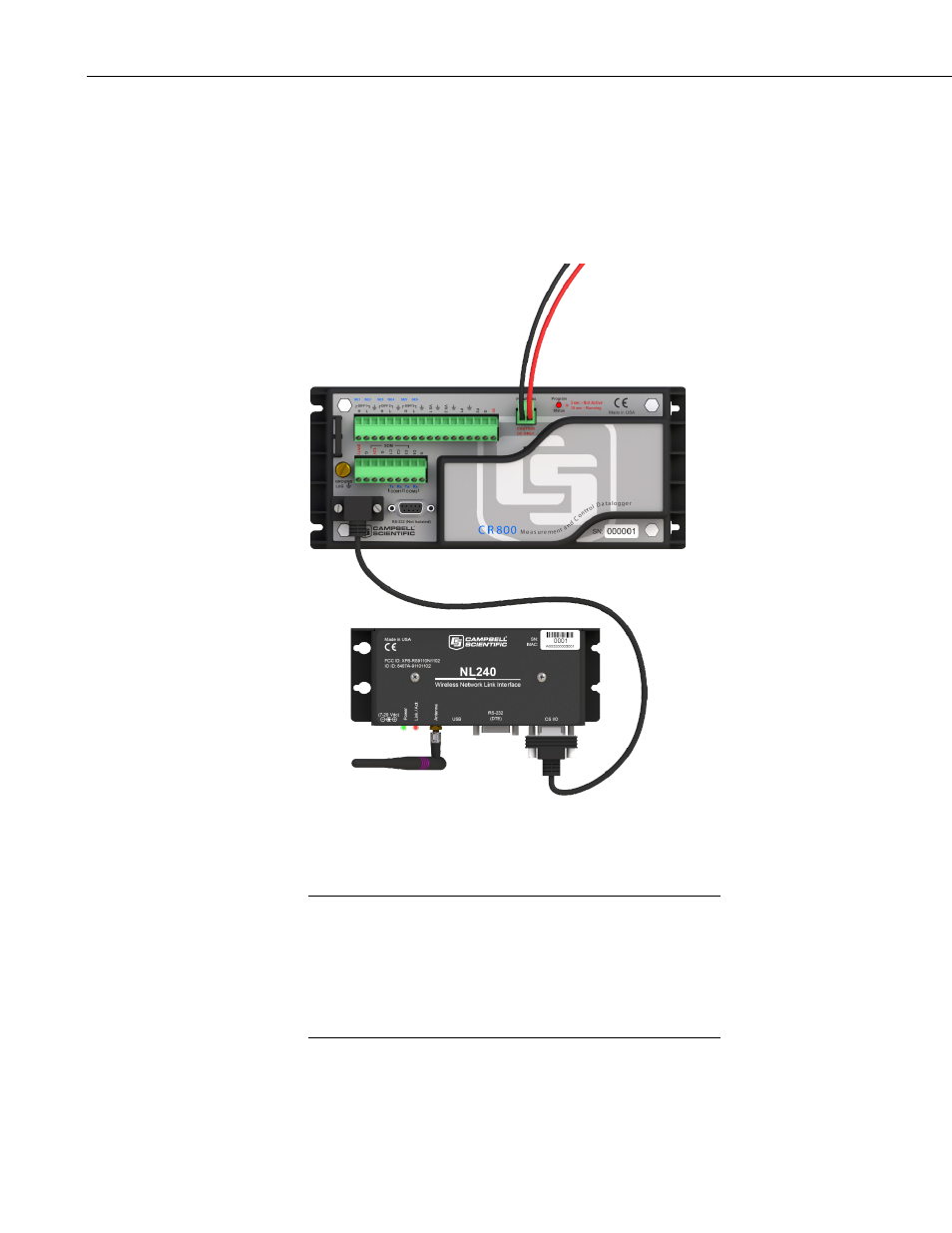

FIGURE 3-1. NL240 with CR800 (powered through CS I/O port)
3.2 Configuring the NL240
INSTALL THE DEVICE DRIVER BEFORE plugging the
NL240 into your PC for the first time. You will need the device
driver properly installed before you can connect to the NL240 via
USB. To install the device driver, download the latest version of
DevConfig from our website. Under Device Type, select Network
Peripheral | NL240. Click the
Install the device driver for the
NL240 link and follow the prompts.
