B.1.1 water content only – Campbell Scientific EnviroSCAN Sentek Water Content Profile Probe User Manual
Page 26
Appendix B. Normalization and Function Test
Start the IPConfig Utility (Intelligent Probe Utility Software, P/N SEN06025)
on the PC by clicking on the IPConfig Utility icon (shown in Figure B-3).

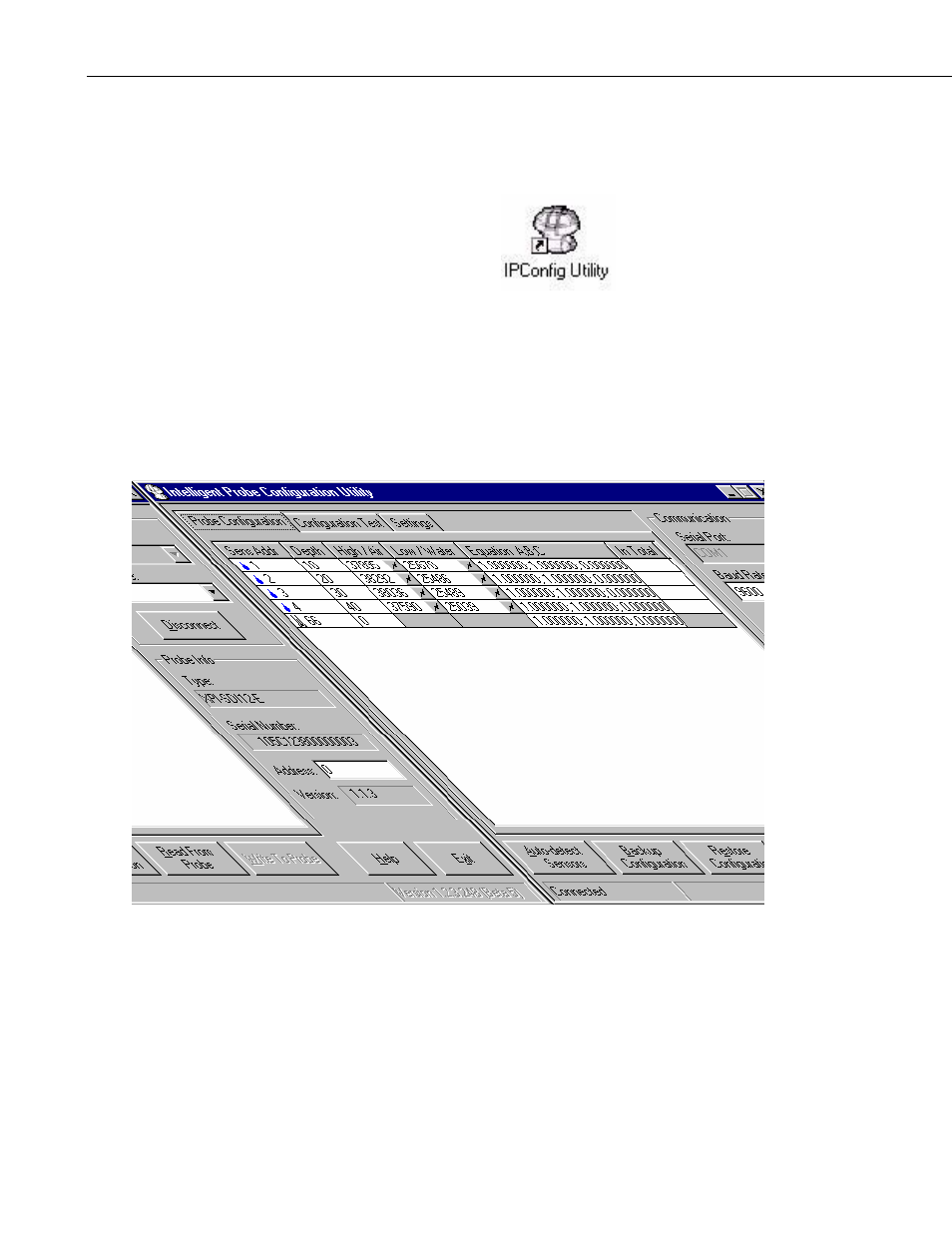

FIGURE B-3. IPConfig Utility Icon
Click “Connect” in the upper right area of the IPConfig window. The software
will connect to the probe and set up a configuration window.
B.1.1 Water Content Only
FIGURE B-4. IPConfig Probe Configuration Window
Figure B-4 shows an IPConfig Utility Probe Configuration window after
normalization is complete on a three-sensor probe with sensors placed at 10,
20, and 30 cm. Complete the following operations for a new probe:
B-2
