Campbell Scientific EnviroSCAN Sentek Water Content Profile Probe User Manual
Page 20
Appendix A. Probe Assembly
“Loosely” attach the handle to the rod with two of the large screws that came
with the assembly as shown in Figure A-3.

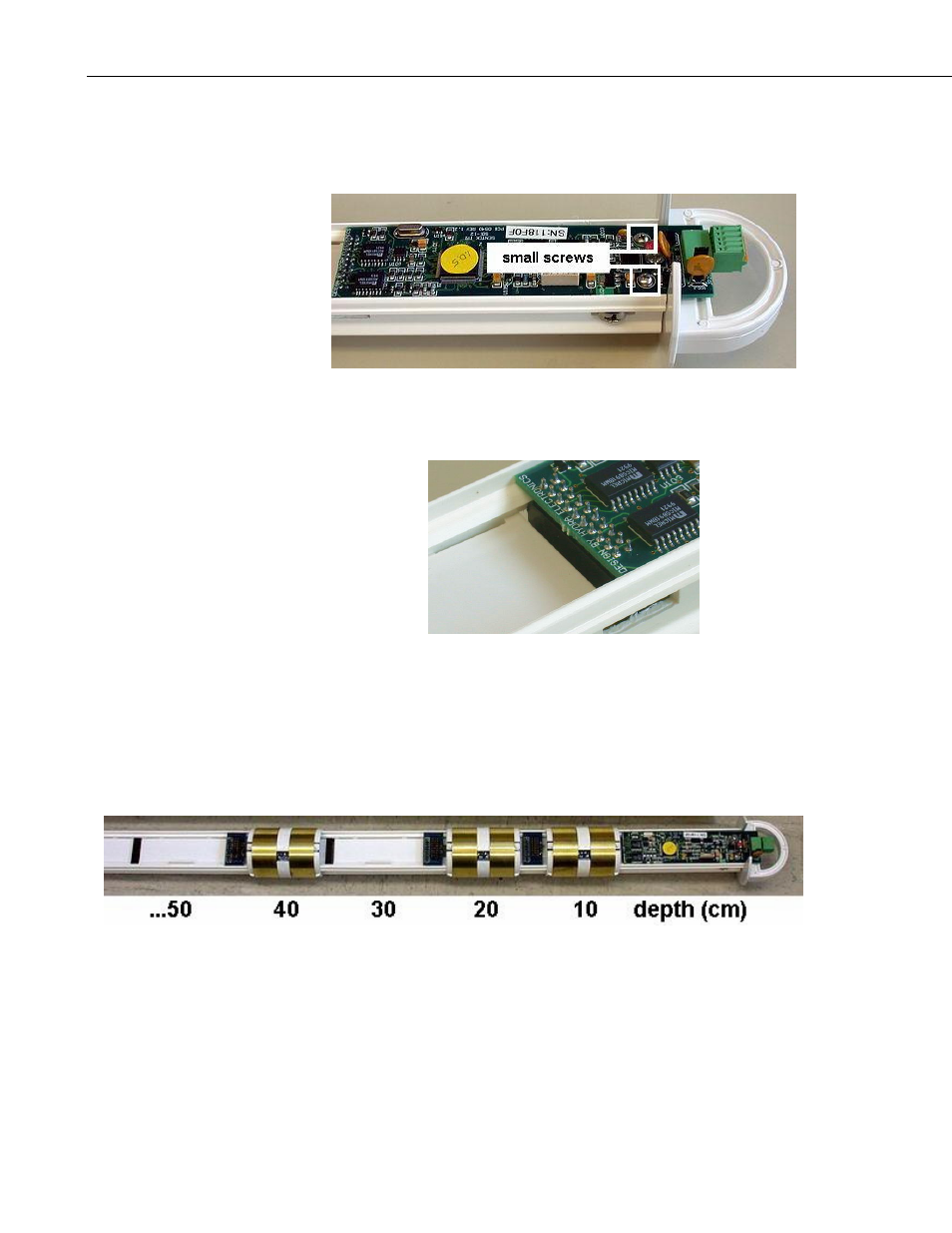

FIGURE A-4. Location of Small Main Board Screws
FIGURE A-5. Securing Main Board Electrical Connection
Install the main board assembly as shown in Figure A-4 between the two sides of
the mounting rail. The header is plugged into the first connector in the rail as
shown in Figure A-5. Secure the main board to the probe with two of the small
screws that came with the assembly. Tighten the two large screws.
FIGURE A-6. Possible Sensor Positions
A-2
