Campbell Scientific EnviroSCAN Sentek Water Content Profile Probe User Manual
Page 24
Appendix A. Probe Assembly

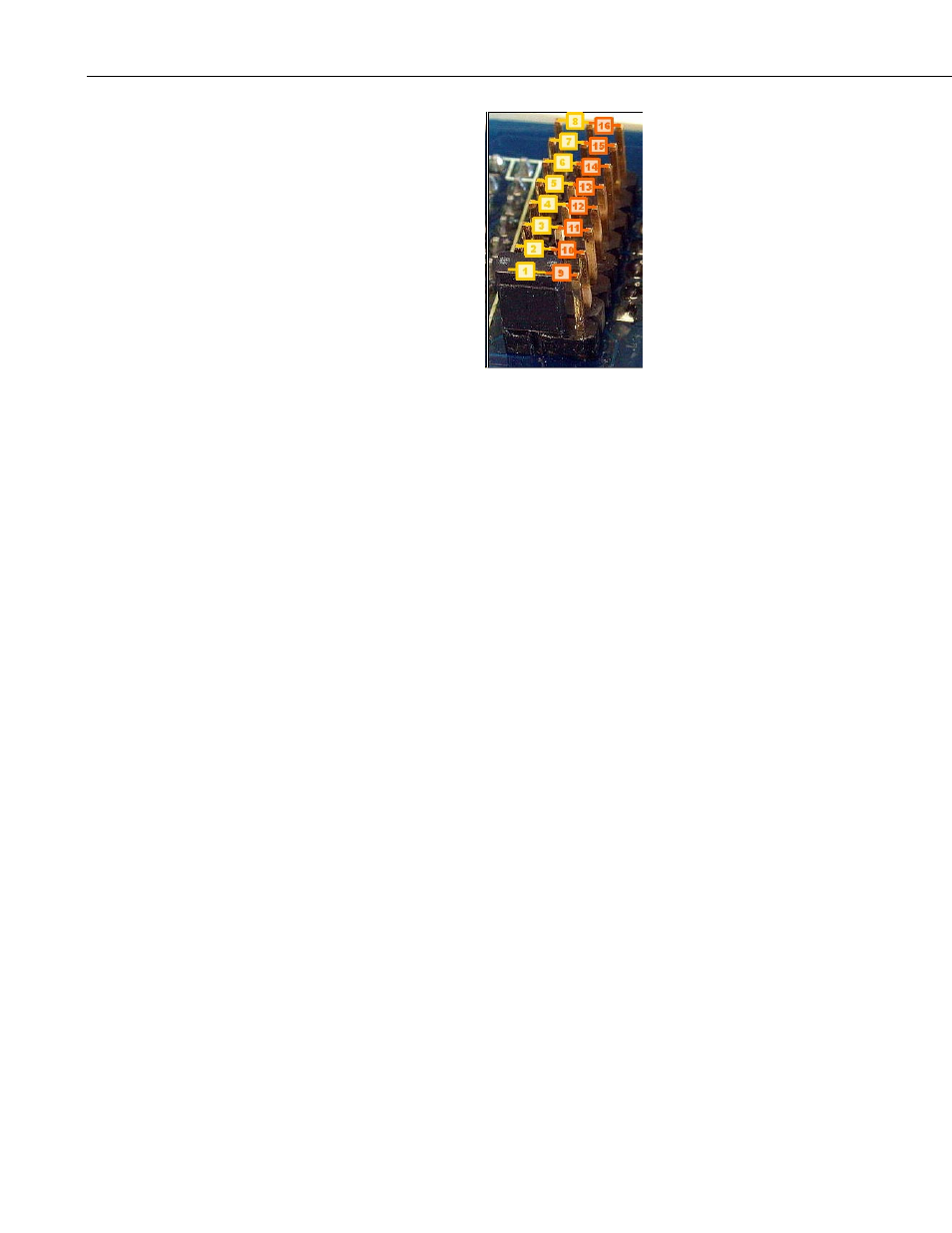

FIGURE A-16. Location of Jumpers 1..16
After positioning and securing each sensor in its proper location, install the
jumpers on the ribbon cable boards. Begin at the main board end and install the
jumpers on each sensor board in numeric sequence as shown in Figure A-12.
Locate the sensor jumper pins as shown in Figure A-13. Set sensor 1 jumper to
the first position as shown in Figure A-14. Set sensor 2 jumper to the second
position as shown in Figure A-15. Set subsequent jumpers as indicated in Figure
A-16. The position of the jumper on the header and the location of the sensor on
the rail are NOT related and may or may not be the same.
A-6
