Campbell Scientific EnviroSCAN Sentek Water Content Profile Probe User Manual
Page 21
Appendix A. Probe Assembly

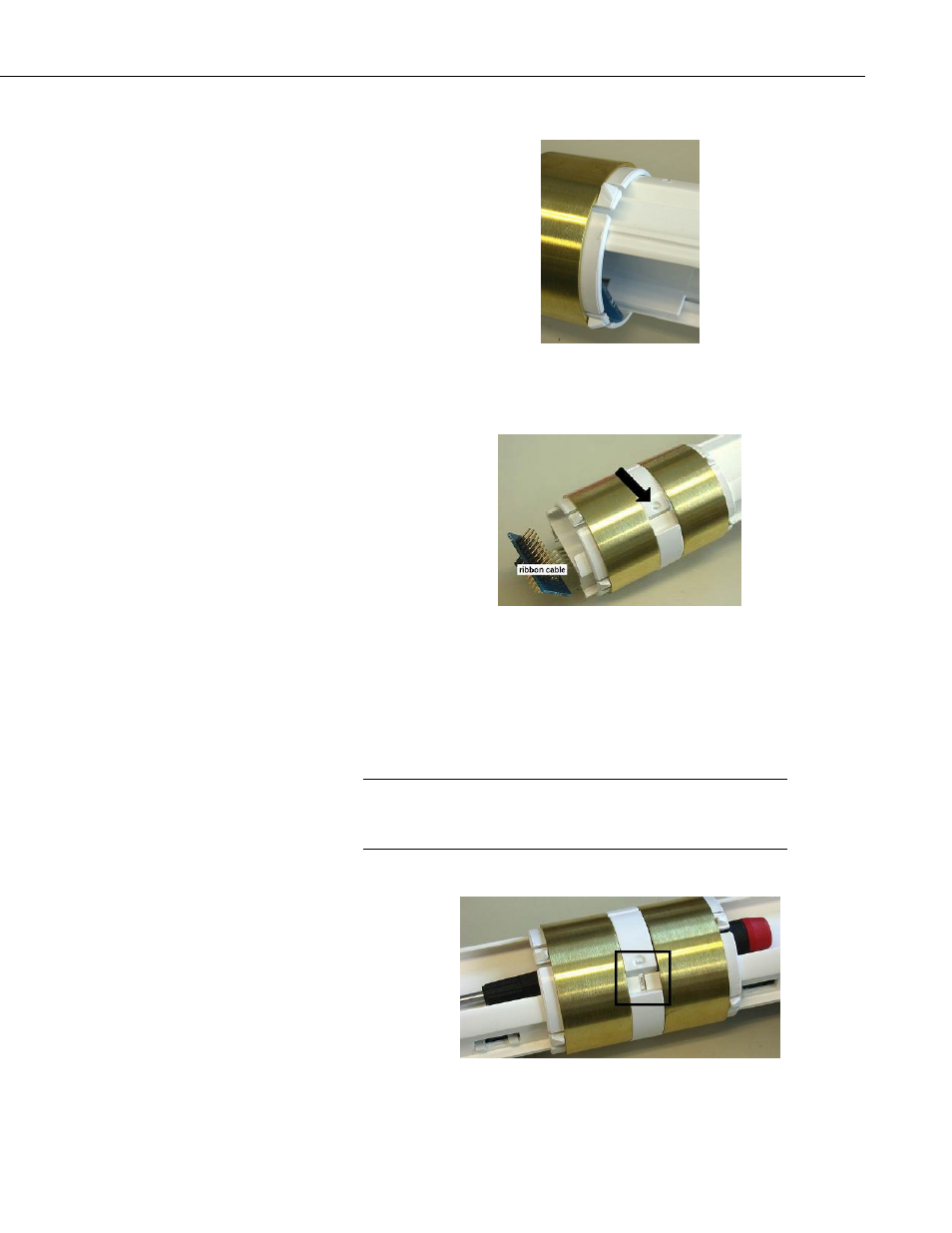

FIGURE A-7. Sensor Orientation
FIGURE A-8. Sensor Ribbon Cable
Determine the number and locations of sensors that are to be installed. They
may or may not be as indicated in the example in Figure A-6. Place the first
sensor carefully over the rail, oriented as shown in Figure A-7. To advance the
sensor assembly to its location on the rail, press and hold the spot indicated by
the arrow in Figure A-8.
As you advance the sensor, carefully position the ribbon
cable to prevent breaking it, as it will tend to catch, especially
when first starting.
CAUTION
FIGURE A-9. Locking Sensor in Place
A-3
