Campbell Scientific EnviroSCAN Sentek Water Content Profile Probe User Manual
Page 22
Appendix A. Probe Assembly

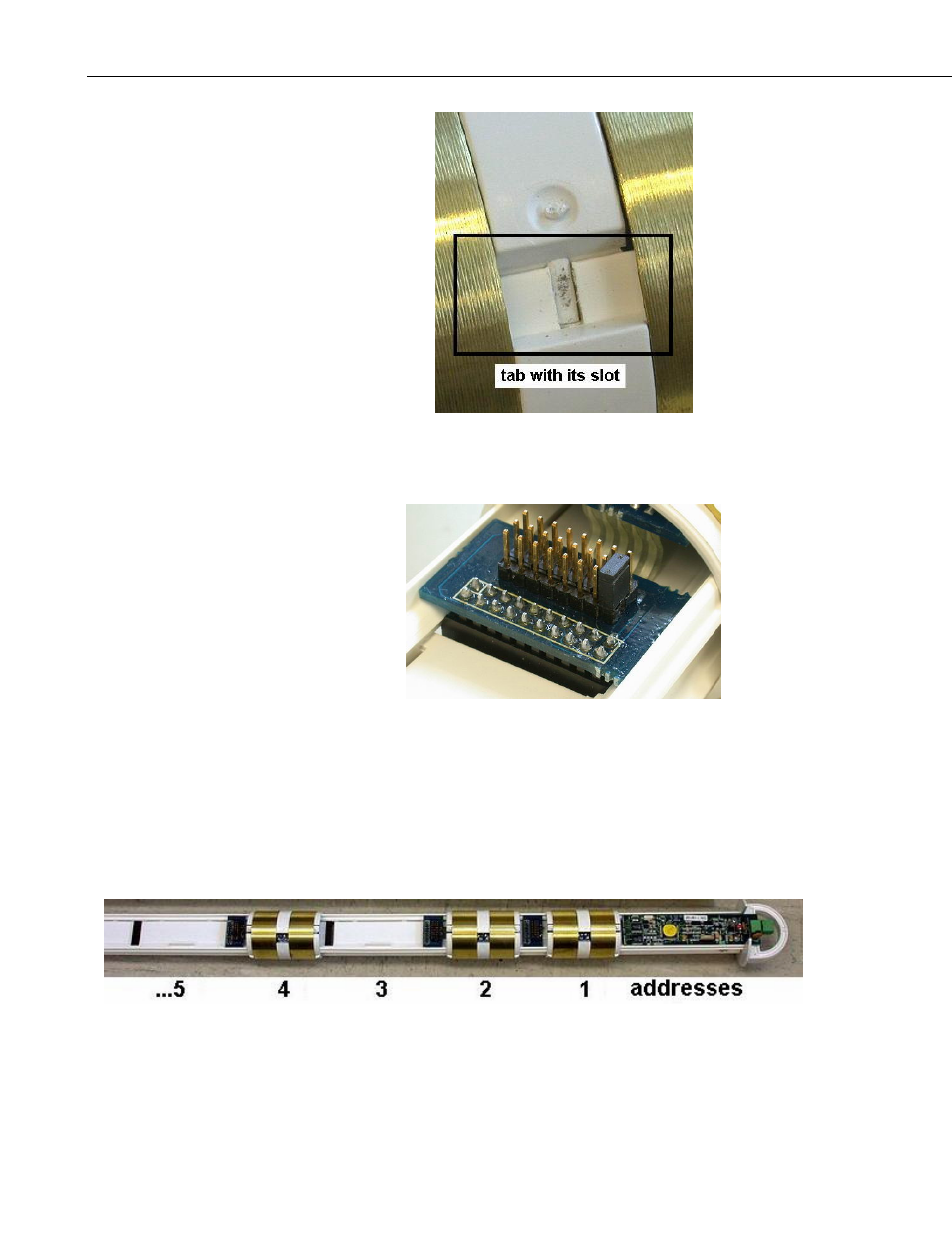

FIGURE A-10. Aligning Sensor Tab with Probe Slot
FIGURE A-11. Plugging in Ribbon Cable Header
Advance the sensor to its proper location. Align and snap the lock ring in place.
Insert a screwdriver as shown in Figure A-9 and pull outward on the screwdriver
after carefully aligning the tab with its slot in the rail, as shown in Figure A-10.
After snapping in place, carefully plug the header on the ribbon cable into its
proper connector in the rail as shown in Figure A-11.
FIGURE A-12. Sensor Addresses
