CNR4 Net Radiometer
The properties of the CNR4 are mainly determined by the properties of the
individual probes. Generally the accuracy of the CNR4 will be higher than that
of competitive net-radiometers, because the solar radiation measurement
performed by the pyranometer is accurate, and offers a traceable calibration.
Also the optionally integrated heater/ventilator unit improves the accuracy.
Due to the fact that the net short-wave radiation can be very intense, 1000
W/m
2 compared to a typical –100 W/m 2 net long-wave radiation, the accuracy
of the short-wave radiation measurement is critical. Wind corrections, as
applied by less accurate competitive instruments are not necessary. The robust
materials used imply that the CNR4 will not suffer damages inflicted by birds.
FIGURE 6-1 and FIGURE 6-2 show the CNR4 with and without the CNF4
heater/ventilator. From a spectral point of view, the pyranometer and
pyrgeometer are complementary, and together they cover the full spectral
range.

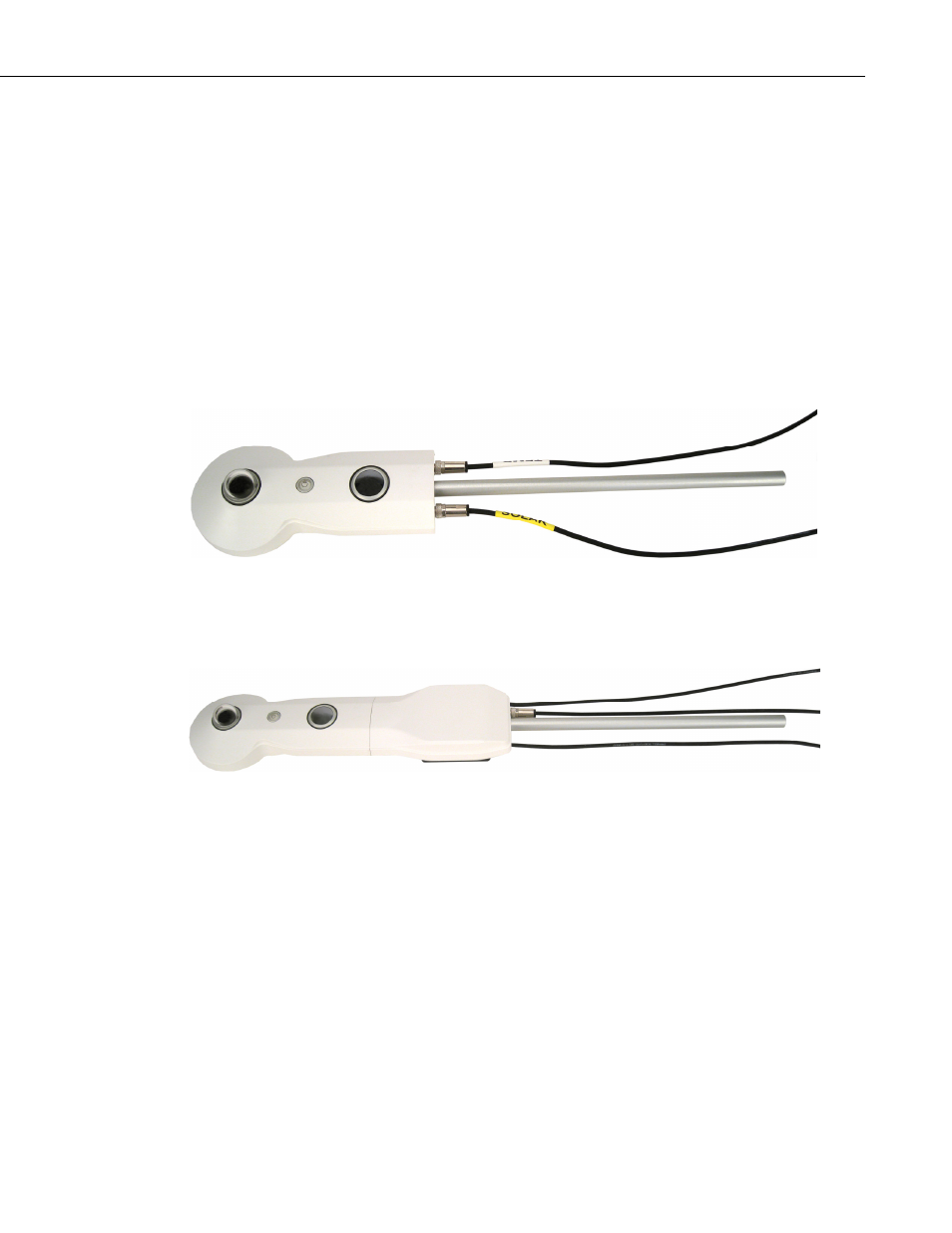

FIGURE 6-1. The CNR4 net radiometer with cables and mounting rod,
top view
FIGURE 6-2. The CNR4 net radiometer with CNF 4 heater/ventilator
unit, top view
