Campbell Scientific CM6/CM10 Tripod Weather Station Installation User Manual
Page 34
Section 3. Instrumentation Installation
3. Route the cable from the remote SRM-5A, and the cable from the SRM-
5A attached to the computer to the 6361. Connect the cables as shown in
Figure 3.3-5. Strain relief the cables using cable ties and tabs.

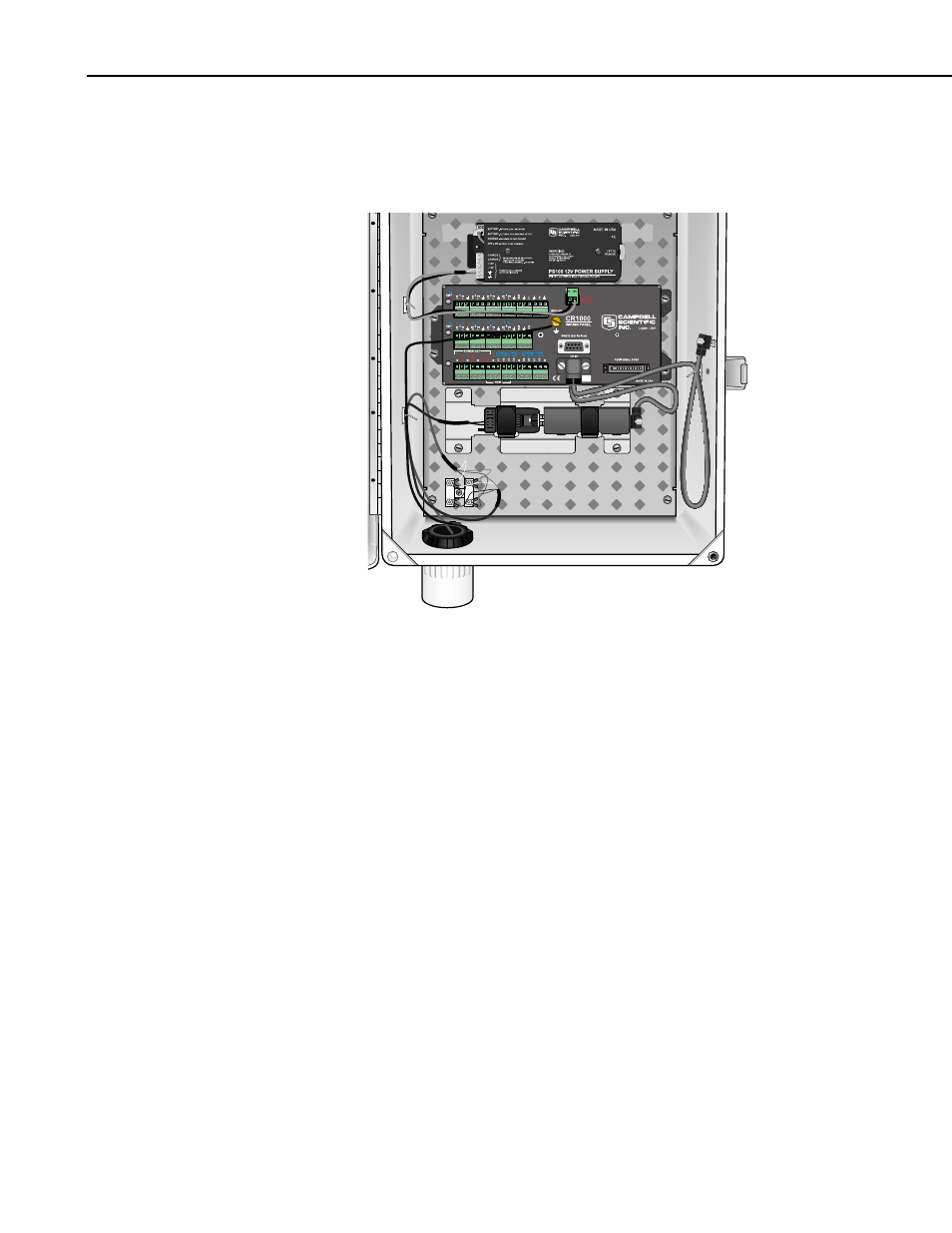

FIGURE 3.3-3. SRM-5A Rad Modem and SC932A Interface
