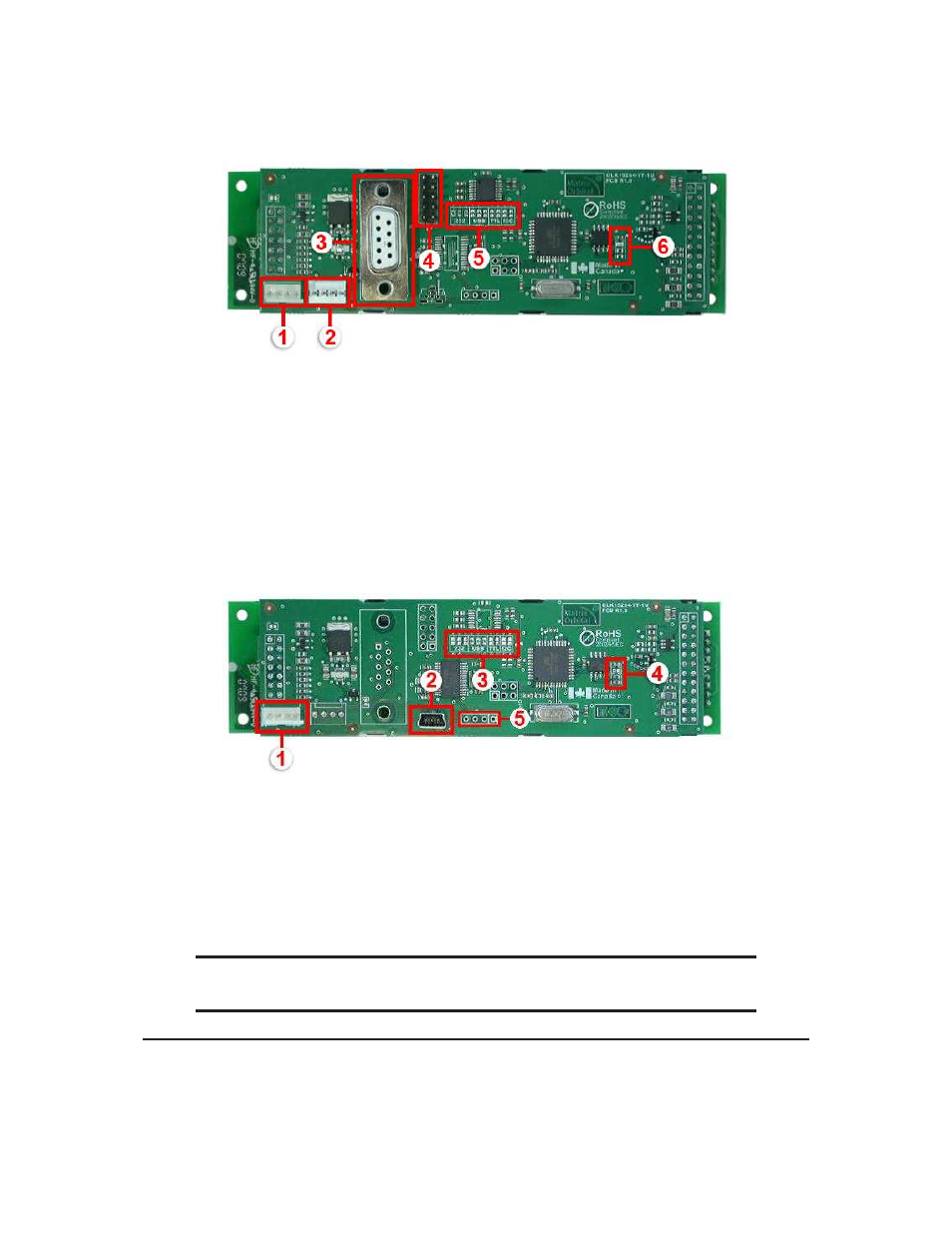

1 Power Cable Standard Connector 4 Serial Header
2 Power/Data Connector 5 Protocol Select Jumpers
3 DB9 Connector 6 Filesystem Lock Jumper
Figure 11: GLK19264-7T-1U Non-USB
1 Power Cable Standard Connector 4 Filesystem Lock Jumper
2 USB mini-B Connector 5 Location for optional internal USB cable header*
3 Protocol Select Jumpers
Figure 12: GLK19264-7T-1U USB
NOTE * The USB module can have a header populated at your request to allow for an
internal USB cable, talk to a Sales representitive for details.
