3

CH+

CH–

GC52

In H

2

O

M

Differential pressure

unit monitor

Test Terminals

MODE key

DOWN key

UP key

Scaling - Arbitrary

unit monitor

No function

Measured data

display

8.8.8.8.8.8.

Total flow volume
display (X100)

Total flow volume

display (X1000)

Linear scaling mode

Total flow volume

display (X10)

Total flow volume

display (X1)

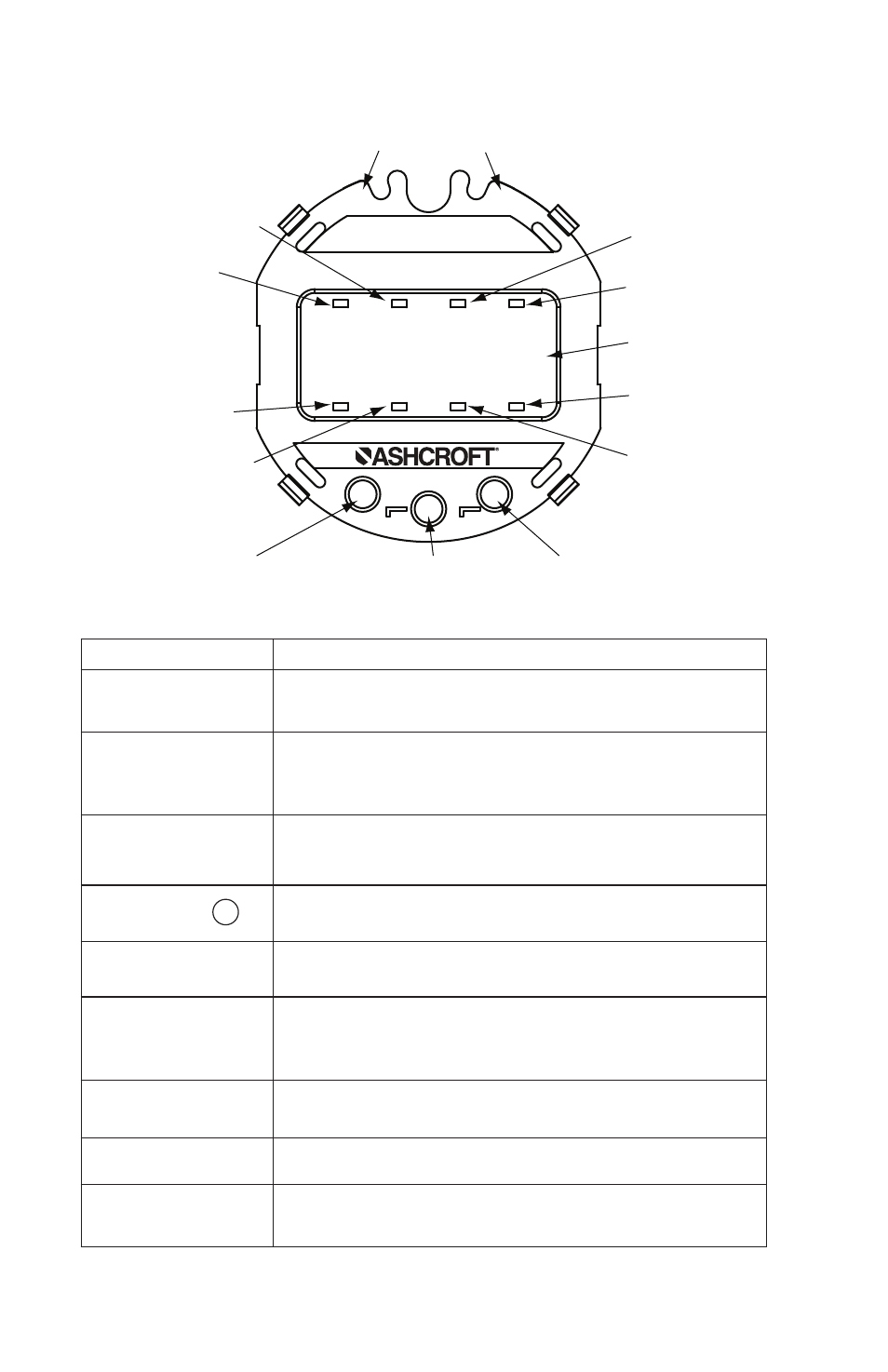

DISPLAY OVERVIEW

¾

µ

¹

¸

º

DESIGNATION

FUNCTION

Measured data

display

Differential pressure, linear scaling value are displayed.

Differential

pressure unit
monitor

When this unit monitor is ON, the differential pressure

(in H

2

O) is indicated on the measured data display.

Scaling; arbitrary

unit monitor

When this unit monitor is ON, the scaling value of an
arbitrary unit (linear scaling), is indicated on the
measured data display.

MODE key M

This key is used to switch the setting mode and the
measurement mode and to change the setting item.

DOWN key S

This key is used to change (decrease) and select the
set value.

UP key T

This key is used to change (increase) and select the set
value and to shift from the measurement mode to the
zero adjustment mode.

Linear scaling

mode

Change differential pressures into quantity

º No function

None

¾ to ¹ Total flow

volume display

Accumulated volume calculated based on flow rate
