Ashcroft 1036 Gauge with 1037 Fitting - Manual (Page 10)

10
(1) Formerly 1206T Tool Kit.
(2) Formerly some parts in 1205T Tool Kit.
(3) Both parts must be purchased together.
(4) Previous and current design.
(5) Previous design only.
(6) Current design only.
9.4 2 1 ⁄
2
& 3 1 ⁄
2
1009 Duralife ® Gauge Tools
Description Part No.
Pointer Puller Screw/Pin (2)(3)(4) 112A381-01
Pointer Puller Body (2)(3)(4) 292A133-01
Pointer Staker (2)(4) 188A101-01
Span Wrench (2)(5) (to adjust span) 266A137-01
Ring Wrench 3 1 ⁄
2
˝ (1)(5) (for ring removal) (35 1009) 266B134-01
Ring Wrench 2 1 ⁄
2
˝ (1)(5) (for ring removal) (25 1009) 266B135-01
Nest 2 1 ⁄
2
˝ & 3 1 ⁄
2
˝ (1)(5) (to hold gauge for ring removal) (25/35 1009) 266B136-01
Ring Removal Tool (6) (25 1009) 101B221-02
Ring Removal Tool (6) (35 1009) 101B221-01
Nest 2 1 ⁄
2
˝ (6) (to hold gauge for ring removal) (25 1009) 101B220-02
Nest 3 1 ⁄
2
˝ (6) (to hold gauge for ring removal) (35 1009) 101B220-01
Type 1230 throttle plug insertion ( 1 ⁄
4
NPT) for 1009 Duralife ®) 1230
Type 1231 throttle plug insertion ( 1 ⁄
2
NPT) for 1009 Duralife ® (body only) 1231
Tool to open orifice on push-in throttle plug 101A206-01

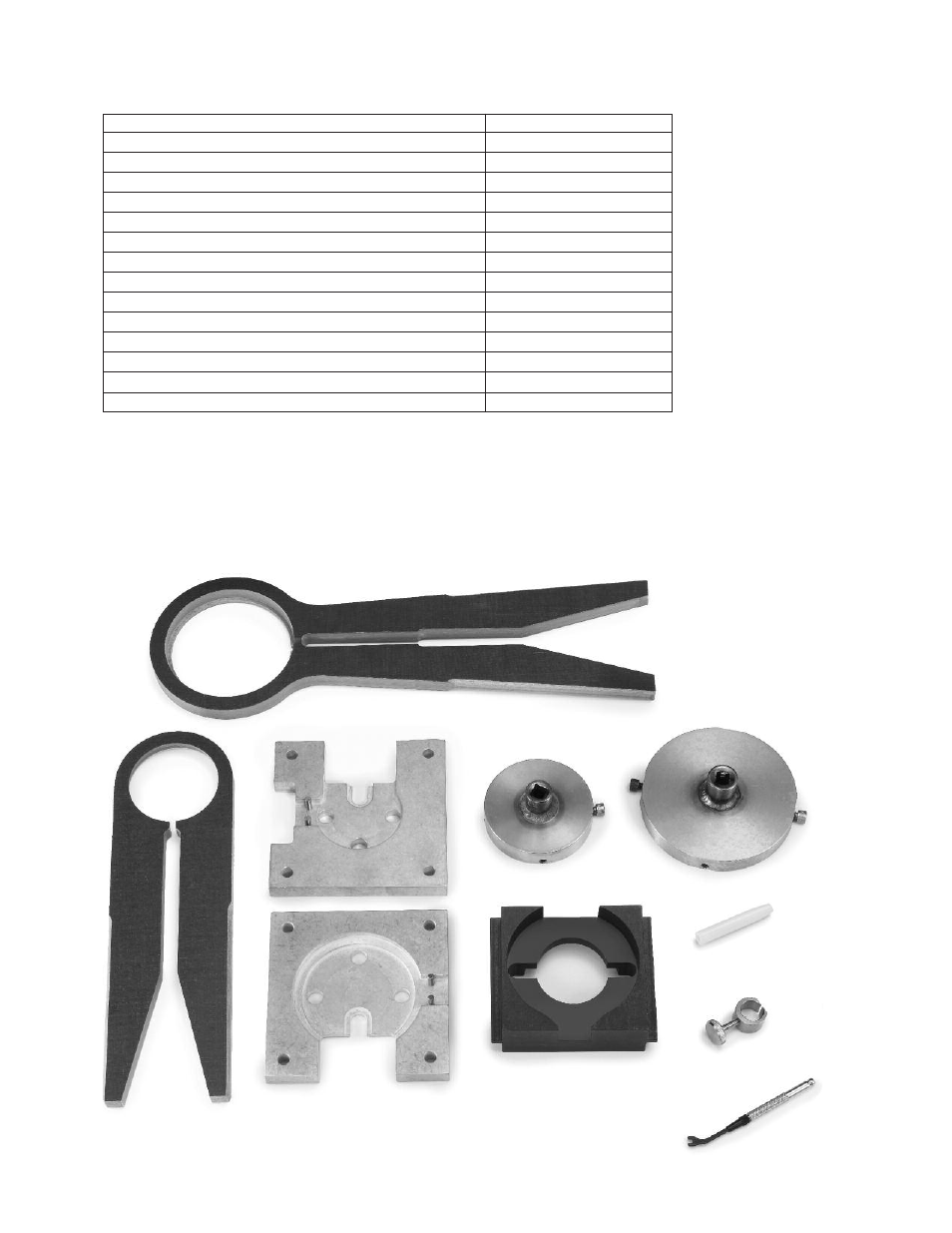

RING WRENCH
266B134-01
RING
WRENCH
266B135-01
RING REMOVAL TOOL
101B221-02
RING REMOVAL TOOL
101B221-01
NEST
266B136-01
SPAN WRENCH
266A137-01
POINTER STAKER
188A101-01
POINTER PULLER
SCREW/PIN 112A381-01
and
POINTER PULLER BODY
292A133-01
NEST
101B220-02
NEST
101B220-01
