9.4 Environment
Indoor / Outdoor
Operating temperature: -25°C / +60°C (-13°F / +140°F)
9.5 Compliance to
IP66 according to EN60529
9 Technical data
9.1 General
Box in die-cast aluminium
Epoxy powder painting
9.2 Mechanical
Dimensions: 290x255x90mm (11.4x10x3.5in)
Unit weight: 6kg / 13.2lb
9.3 Electrical
IN 120Vac, 50/60Hz - OUT 24Vdc, 8A
Consumption: 200W (powering two spots on maximum
power)
Built-in photocell for automatic ON/OFF operation
Dimensions of input cables: AWG 12-14
Dimensions of signal cables: AWG 20-26

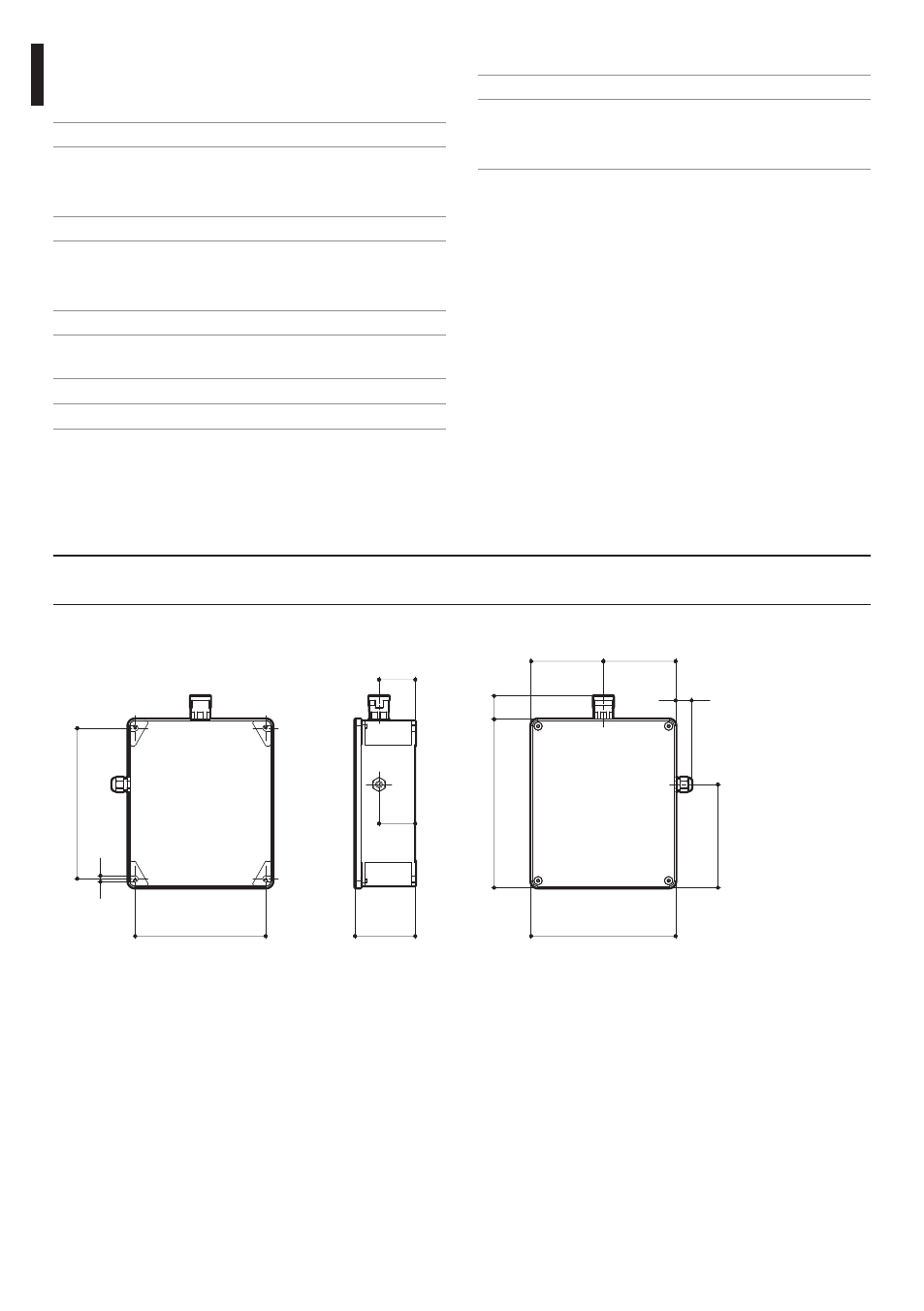

10 Technical drawings
j
The values are in millimeters.
196
90.5
54.5
108.5
217
226
253
155
35
9
54.5
108.5
24
Fig. 17
UPTIRPS120
