2 replacing the cable gland, 1 version with bracket (optional), 2 version with column support (optional) – Videotec UPTIRPS120 User Manual
Page 6: 3 sheath assembly
EN - English - I
nstruc
tions manual
4
6.1.2.2 Version with column support
(optional)
Assemble the 45 degree fitting (01) onto fitting (02)
with the gasket (03) and fix it onto the base (06) with
the gasket (04) and the nut (05) of the previously-
removed cable gland.
03
02
01
05
06
04
Fig. 10
Fig. 11
6.1.3 Sheath assembly
01. Conduit
02. Seal Cap
03. Connector
04. Oval Clip
05. Gasket
01
03
02
04
01
Fig. 12

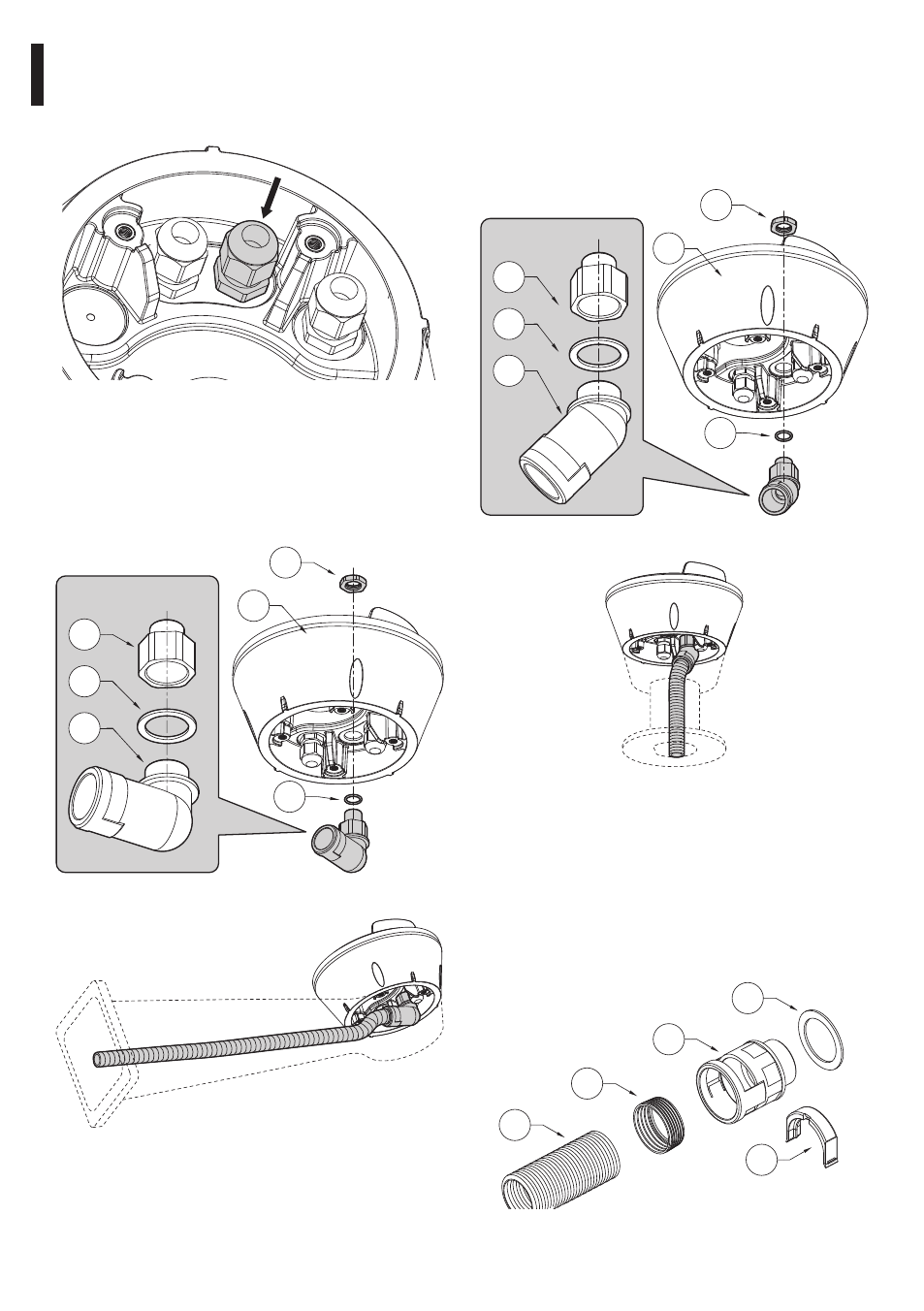

6.1.2 Replacing the cable gland
Remove the cable gland highlighted to replace it with
the relevant fitting, taking care not to damage the
fixing nut.
Fig. 07
6.1.2.1 Version with bracket (optional)
Assemble the 90 degree fitting (01) onto fitting (03)
with the gasket (02) and fix it onto the base (06) with
the gasket (04) and the nut (05) of the previously-
removed cable gland.
03
04
05
02
01
06
Fig. 08
Fig. 09
