EN - English - I
nstruc
tions manual
5
6.1.4 Configuration
The product has already been set in the factory for
optimal operation under a range of conditions, but
it can be adapted to suit the conditions where it will
actually be used.
To adjust the sensitivity of the integrated photocell,
adjust potentiometer TR1 until it reaches the desired
trip threshold. When the potentiometer is turned
clockwise, the residual light threshold for triggering
the photocell will increase, thus bringing forward
switching to night mode. When it is turned anti-
clockwise, the threshold is decreased and there will
be a longer delay in switching on the spots until
when there is less light. We recommend making the
adjustments under the actual conditions in which the
spots will be used. The switching on of the red LED on
the board stands for the activation of the night-time
mode.
7 Maintaining and cleaning
7.1 Changing the fuses
CHANGING THE FUSES
Power supply Primary (F1) Secondary (F2)
120Vac F8A L 250V
Tab. 1
8 Disposal of waste
materials
n This symbol mark and recycle system
are applied only to EU countries and not
applied to the countries in the other area of
the world.
Your product is designed and manufactured with
high quality materials and components which can be
recycled and reused.
This symbol means that electrical and electronic
equipment, at their end-of-life, should be disposed of
separately from your household waste.
Please dispose of this equipment at your local
Community waste collection or Recycling centre.
In the European Union there are separate collection
systems for used electrical and electronic products.

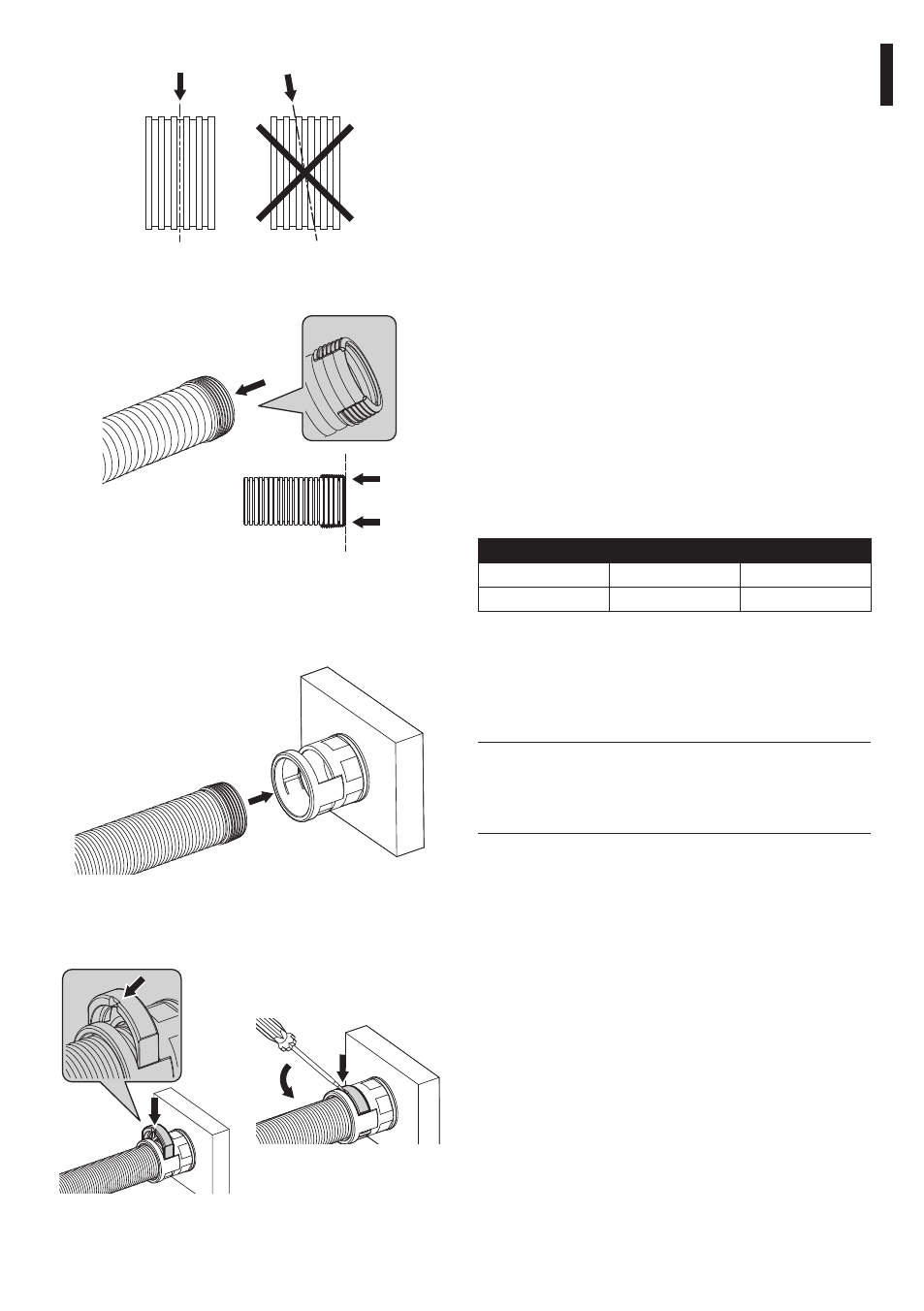

Straight cut of conduit
Fig. 13
Position the sealing plug on the sheath.
Fig. 14
Push conduit with seal cap into the fitting until seal
cap is no more visible in the oval locking element
window.
Fig. 15
Install retaining oval clip. To re-open use a
screwdriver.
Fig. 16
