10
Installation options
Getting started
3. Connect the telephone line cord
and power adapter cord to the jacks
on the bottom of the telephone
base. Bundle the telephone cord
and power adapter cord, and secure
them with a twist tie. Plug the
power adapter and telephone line
into the wall outlets.
4. Place the bundled telephone
line cord and power adapter
cord into the cavity under the
telephone base as shown below.
Align the mounting studs on the
telephone outlet plate with the
mounting holes on the bracket.

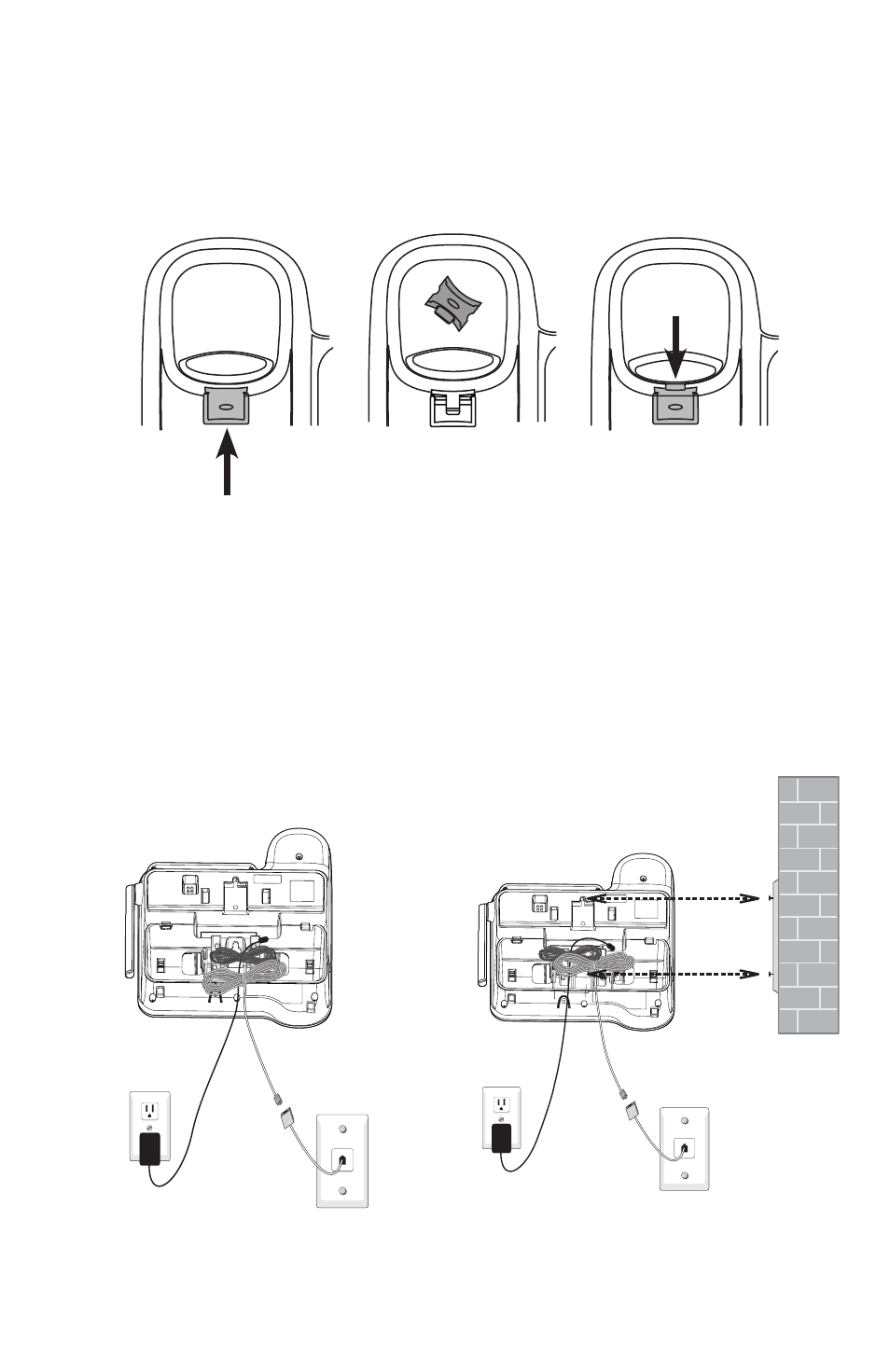

2. Remove the handset tab from the telephone base. Rotate and replace it
to hold the corded handset securely in place when the telephone base is
mounted on the wall.
