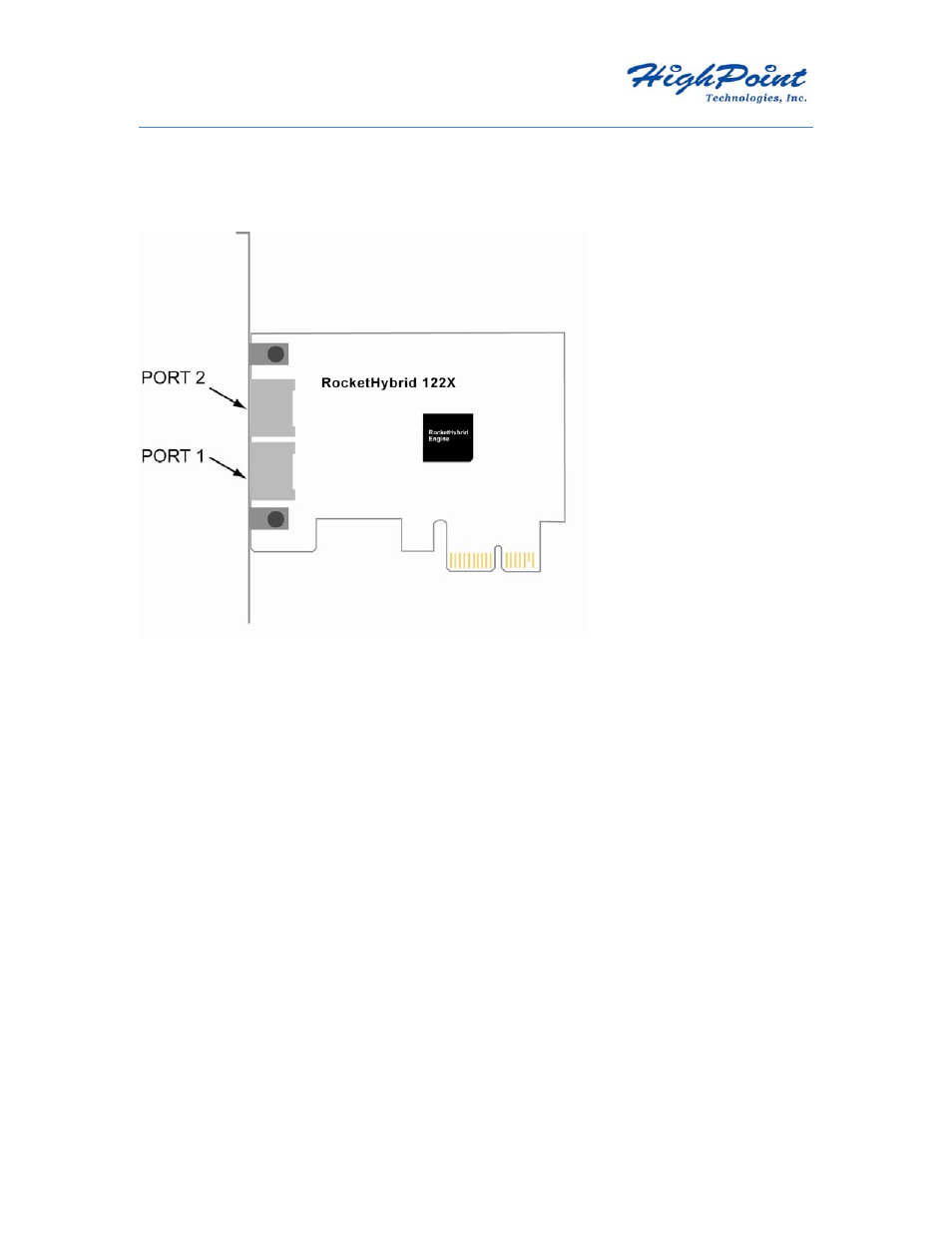

2.2 - RocketHybrid 1222
Port1, Port2,
These represent the RocketHybrid 1222’s 2 e-SATA ports.
These Ports can support up to 2 e-SATA hard disks.
2.3 - LED Connections (Figure displays the RocketHybrid 1220)
LED connectors (Drive-activity): The RocketHybrid1220 host adapter has 1 LED connector that is used to
indicate the activity status of hard drives attached to the card’s 2 SATA channels.
