4.1 Topology
As shown in Figure 1-3, the Topology pane uses a tree view to list and show the relationships between the
various physical/virtual devices attached to the system. The devices on this list include the HBA, physical
disks, and virtual disks.

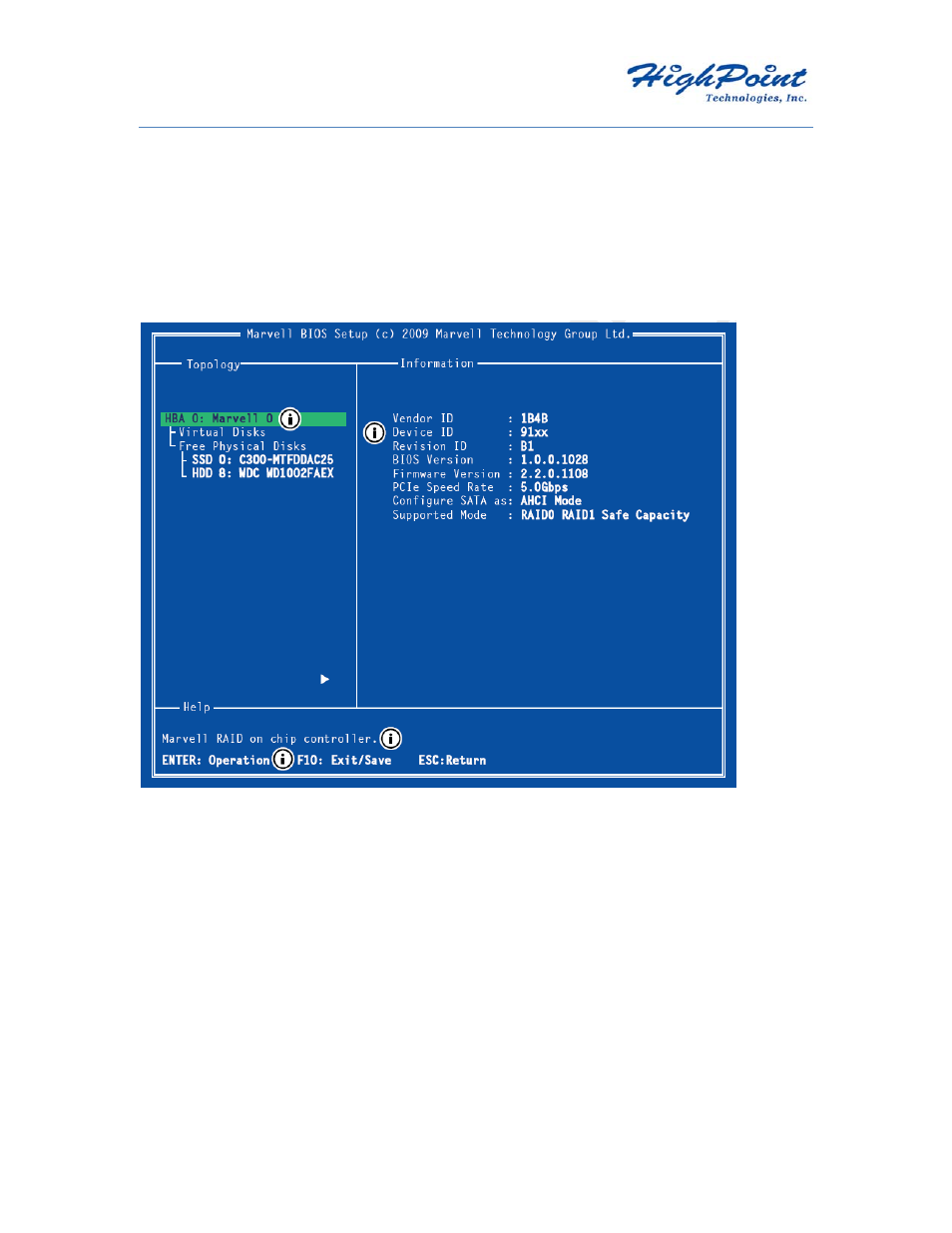

Figure 1-3 BIOS UI Example Selection
4.2 Information
The Information pane is populated based on the selection in the Topology pane. Figure 1-3
shows information relevant to the selection HBA 0: Marvell 0.
4.3 Help
The Help pane is populated based on selections in both the Topology and Information panes. The Help
pane in Figure 1-3 shows a brief description and lists keyboard controls for performing actions relevant to
the selection.
