Important:
Do not drop the Device as the impact may dam-
age it.
To connect a Logger to a vNet Device:
1
Remove protective label on the bottom or back of the Logger.
2
Slide the Logger as far right as possible towards the two tabs
before pushing down into the vNet Device bed (you should
hear a ‘click’).
Note:
If your Logger has an internal temperature channel, it
must be connected to a vNet Device with a built-in
fan mechanism.

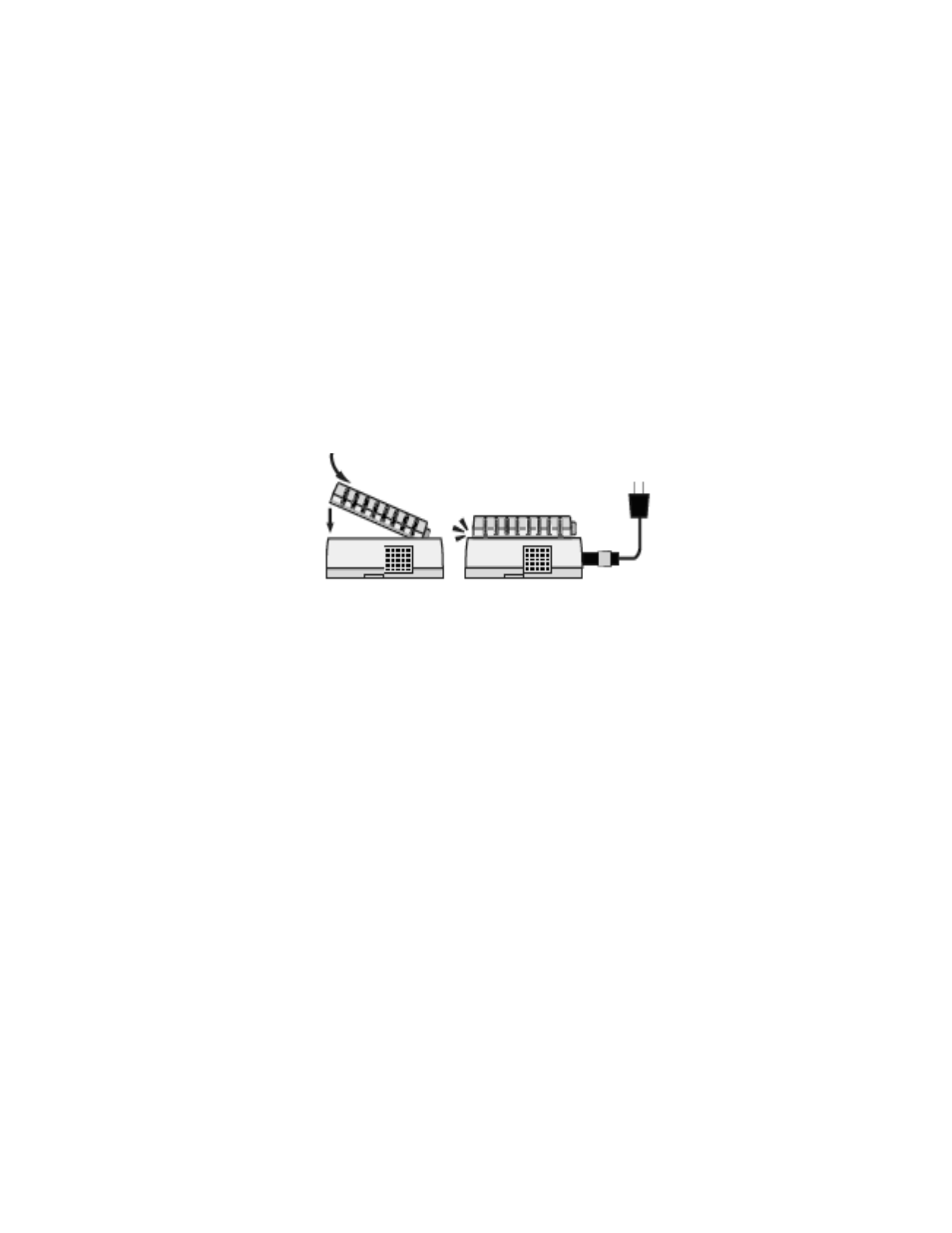

Figure 1: Connecting a Logger to a vNet Device
3
Insert the power supply, if required (if your network supports
Power over Ethernet, you do not need to connect to an
external power supply). To ensure a secure connection, insert
