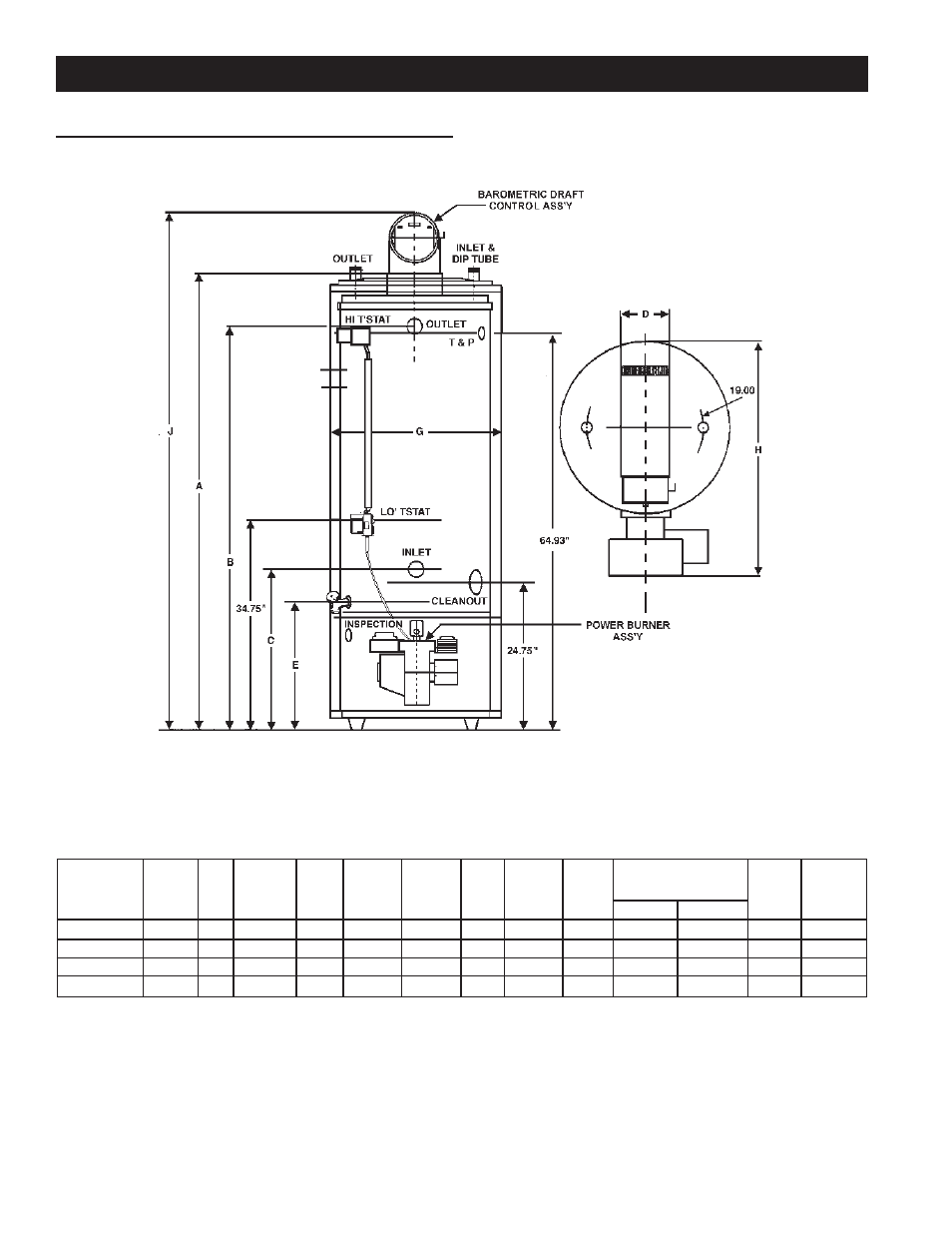

rough in dimensions
installation considerations
figure 5.
table 1 . models gpg 81-140 thru 81-370
models
a
b
c
d
e
g
h
j
gas
approX. ship. wt.
(lbs.)
in
out
asme
std.
GPG 81-140 74 3/4" 65"
26 3/4"
6"
21 3/8"
27 3/4"
38"
85 1/4"
1/2
658
556
1 1/2"
1 1/2"
GPG 81-199 74 3/4" 65"
26 3/4"
6"
21 3/8"
27 3/4"
38"
85 1/4"
1/2
635
545
1 1/2"
1 1/2"
GPG 81-270 74 3/4" 65"
26 3/4"
8"
21 3/8"
27 3/4"
38"
85 1/4"
3/4
632
547
1 1/2"
1 1/2"
GPG 81-370 74 3/4" 65"
26 3/4"
8"
21 3/8"
27 3/4"
38"
85 1/4"
3/4
731
634
1 1/2"
1 1/2"
