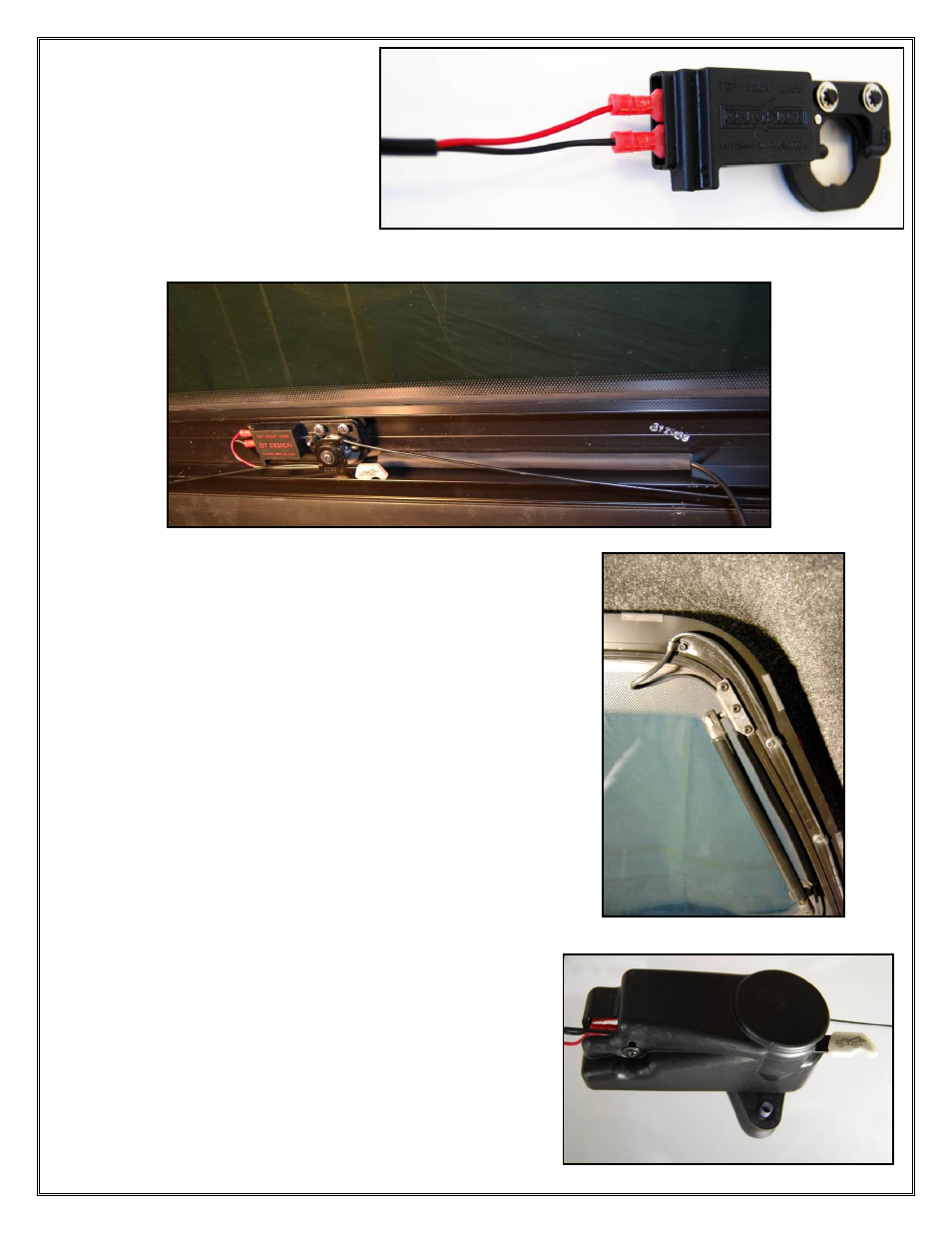

6) Install the Cap and Tonneau
Harness; insert the red female
spade ends of the harness into the
Lock Module with the red wire on
top.
7) For Cap installations fasten the Cap Harness to the
rear door glass using supplied adhesive backed foam
tubes installed on the harness. Be sure that the glass is
clean and dry then remove the adhesive backing and
stick it to the glass. Route the harness down along the
bottom and over to the driver’s side of the door then up
to the top corner making sure that it stays in the blacked
out area of the glass when possible. Leave a small loop at
the top to allow the door to fully open then route the
harness down the inside of the door frame using supplied
Cable Clamps and Clamp Screws.
8) For Tonneau installations route the Tonneau Harness
from the Lock Module over to the driver’s side Gas Prop
or Lift Arm using supplied Cable Clamps and Clamp
Screws (be sure not to screw into a thin portion of the
tonneau or the screws could penetrate the outer surface).
Fasten the Tonneau harness down the gas prop or lift arm
using the supplied foam tubes with adhesive baking, be
sure the surface is clean and dry before applying the foam
tubes. Install black cover with the two supplied screws,
one on the driver side and one in the bottom.
