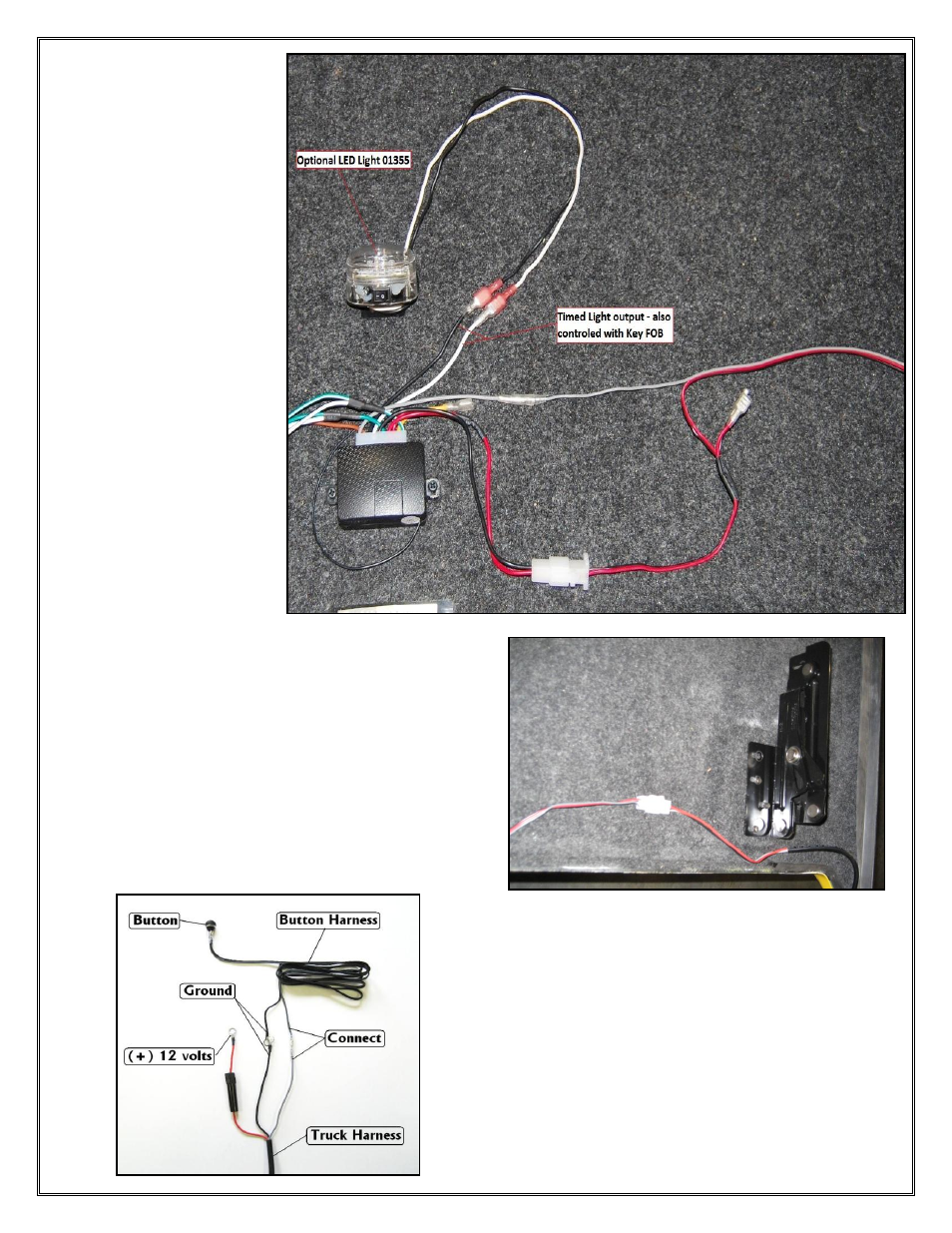

5) Connect the optional 12
volt LED light (01355) to
the timed light outputs on
the Receiver, black to
black and white to white.
Mount light where desired.
6) Attach the Truck Harness to the Tonneau Harness
with the one way plug in the front corner of the tonneau.
Route the Truck Harness down along the truck frame and up
into the engine compartment. Fasten the Truck Harness
securely with wire ties along the frame. Bundle and wire tie
any extra wire from the Truck Harness securely up under the
hood. Connect the red wire from the Truck Harness to any
constant 12 volt power supply; most trucks have an auxiliary
power terminal for such accessories. Be sure to properly
ground the black wire.
7) If using the in cab remote button option, route the
Button Harness into the cab of the truck through an
existing grommet. Drill a ½” hole in the desired
location of the button and mount it through the hole.
Attach the black wire to a good ground and plug the
gray wire from the Button Harness into the gray wire
on the Truck Harness.
