Pop & Lock PL9000 User Manual
Page 2

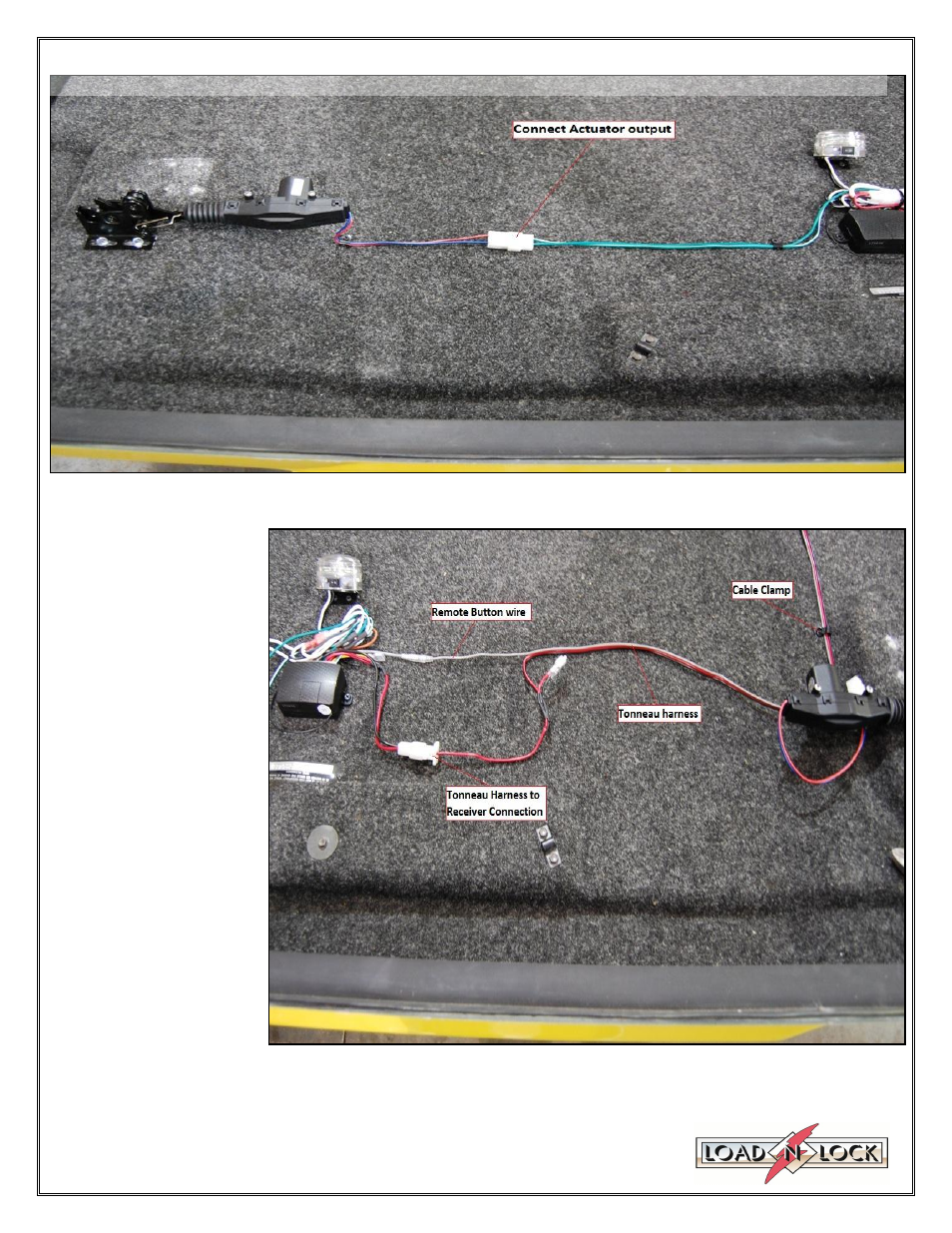

3) Connect receiver actuator outputs to the actuators and bundle up and wire tie any excess wire length.
4) Connect Tonneau
Harness to the Receiver. If
using the optional in cab
remote button, connect the
gray wire from the
Tonneau Harness to the
gray wire on the Receiver.
Route the Tonneau harness
wire up the center of the
tonneau cover then over to
the driver side front corner
of the box. Mount the
harness with
supplied Cable Clamps and
screws or under the
carpeted head liner. Leave
the end of the harness
accessible to be able to
later connect it to the
Truck Harness.
