NOTE:
It is recommended that the air filter be
replaced at least once every 6 months,
or more often as needed. If air filter
appears clogged, dirty, or damaged,
replace it.

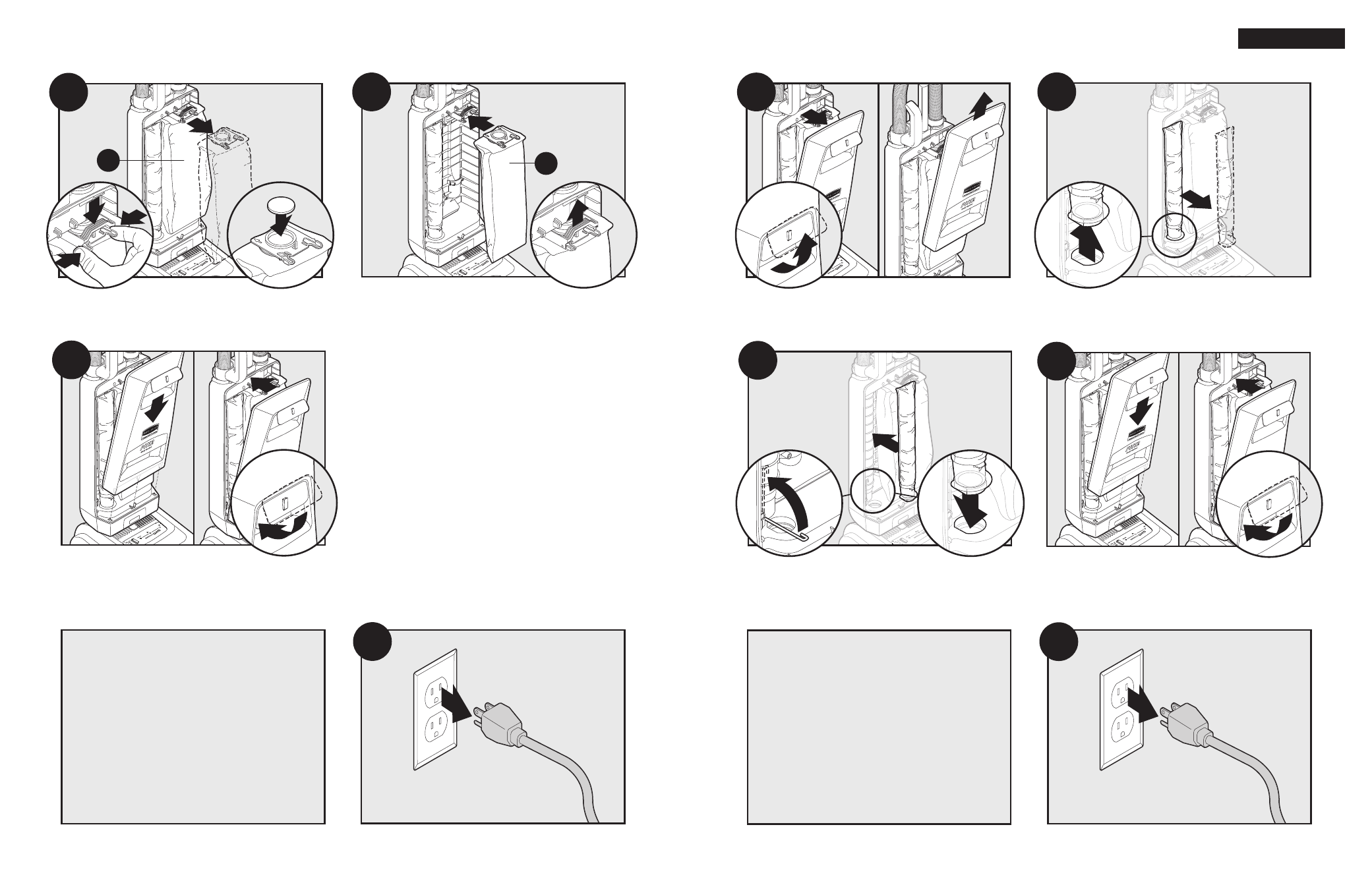

Remove cap from new paper bag plate. Slide the new paper
bag’s plate into the bag carriage. Push plate in until it snaps
into place. Then slide bag carriage up until it snaps into place.
Air Filter Replacement
Air Filter Replacement
(cont.)
Paper Bag Replacement
(cont.)
Unplug before servicing.
Pull bag door release handle forward. Tilt bag door forward,
then lift from upper structure.
Pull old air filter upward out of opening, then out of upper
structure. Dispose.
Orient new air filter so that the keyed shape of filter is aligned
with shape of opening in upper structure. While lifting spring-
loaded bale, insert filter into opening.
2
3
1
4
1
up
down
2
3
1
2
up
dow
n
2
1
3
Align tabs on bottom of bag door with slots on upper
structure. Tilt bag door inward. Lock into place by closing
bag door release handle.
up
down
up
down
2
3
5
1
Align tabs on bottom of bag door with slots on upper
structure. Tilt bag door inward. Lock into place by closing bag
door release handle.
up
down
1
up
down
2
3
5
Unplug before servicing.
NOTE:
It is recommended that the exhaust
filter be replaced at least once every 6
months, or more often as needed. If
exhaust filter appears clogged, dirty, or
damaged, replace it.
1
Exhaust Filter Replacement
up
down
1
2
4
H
Slide paper bag carriage down. Squeeze the paper bag plate clips
in, then slide old paper bag out of bag carriage and dispose.
Note: Insert cap into bag plate opening to keep dirt in.
up
down
3
2
1
2
4
3
H
