Supplemental contents
H
x3
G
(PH12)
C
D
B
E
F
G
(PH15)
G
(MH12)
OR
OR
OR
G
(MH15)
A
handle assembly
upper hose
upper structure
wand
crevice tool
nozzle – includes one (1) PH or MH nozzle
B
A
C
D
E
upholstery tool
F
G
replacement paper bags
H

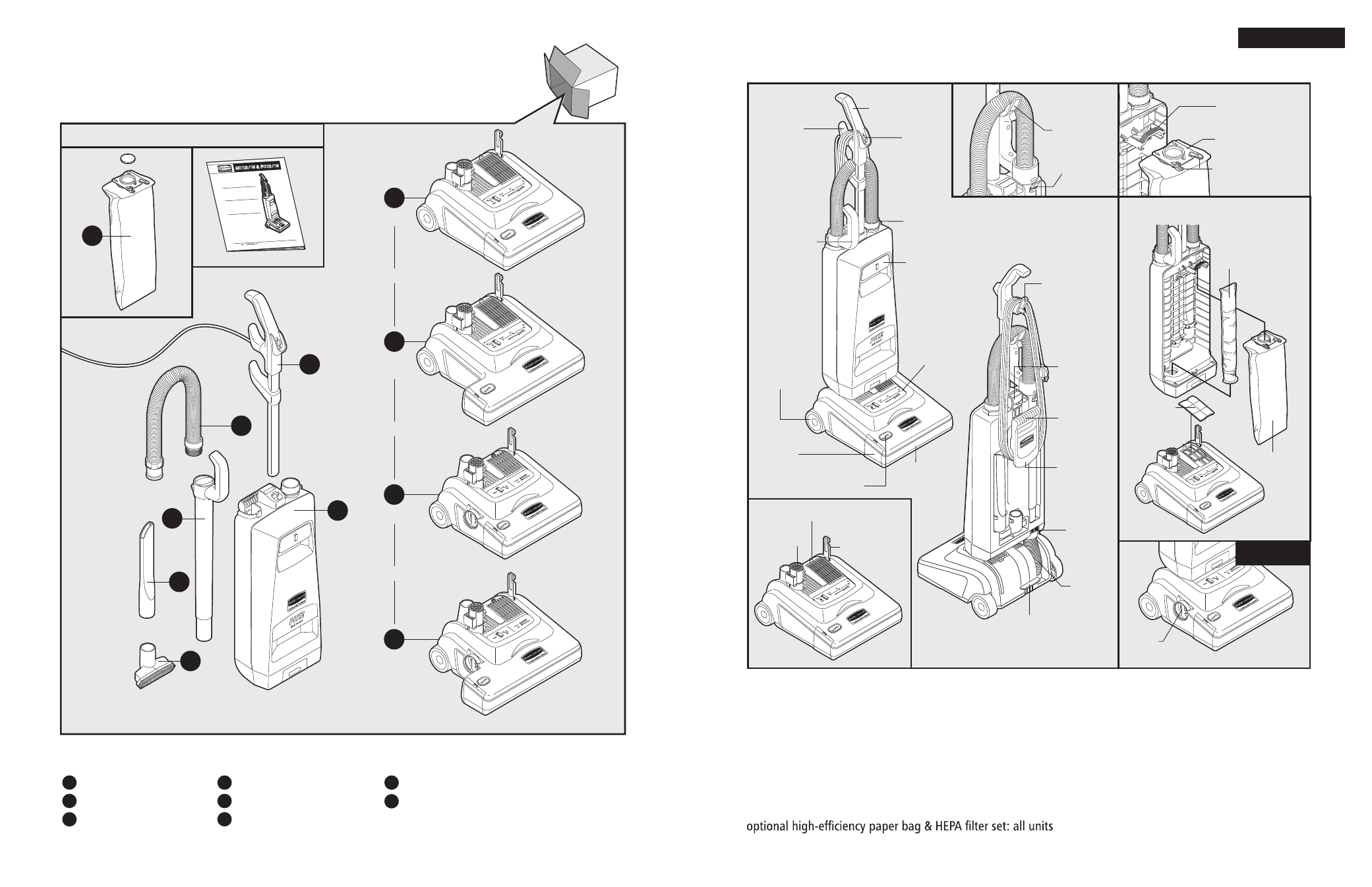

Parts List
Package Contents
Please confirm that all items shown in the image below are included in the packaging.
If any parts are missing, please call customer service at 1-866-524-5233.
Assembled Views
ENGLISH
up
down
up
down
up
down
handle grip
ON/OFF
switch
hose clips
bumper
upper
cord wrap
wand hand
grip
lower
cord
wrap
carry
handle
handle
release
button
wheels
upper cord
wrap
paper
bag
Filter & Bag Locations
Filter & Bag Locations
exhaust
filter
air filter
nozzle
hose
latch
dirt duct
lever arm
exhaust cover tab
MH only
hose hook
wand release
paper bag
carriage
paper bag
plate
paper bag
plate clips
bag door
release
handle
LED diagnostic
panel
brush roll
release button
brush roll
cover
nozzle
hose
handle
release
pedal
height
adjustment knob
Reorder Numbers
paper bag: all units ................................................................ 9VMHBA12
air filter: all units .................................................................. 9VMHMF12
exhaust filter: PH12/PH15 ....................................................... 9VPHEF12
MH12/MH15 .................................................... 9VMHEF12
brush rolls:
PH15 ............ 9VPHBR15
MH15 .......... 9VMHBR15
..... 9VMHHP
Reorder by logging on to
www.rcpworksmarter.com
or by contacting your local
distributor. Call customer
service at 1-866-524-5233 for
service and to order genuine
Rubbermaid Commercial
Products replacement parts.
9VPHBR12
PH12 ............
9VMHBR12
MH12 ..........
