Insert crevice and upholstery tools into the recesses in back of
vacuum cleaner.
When not cleaning, use carry handle to transport vacuum
cleaner.
up
down
up
down
up
down
3
Assembly Assembly (cont.)
up
down
up
down
1
C
2
1
2

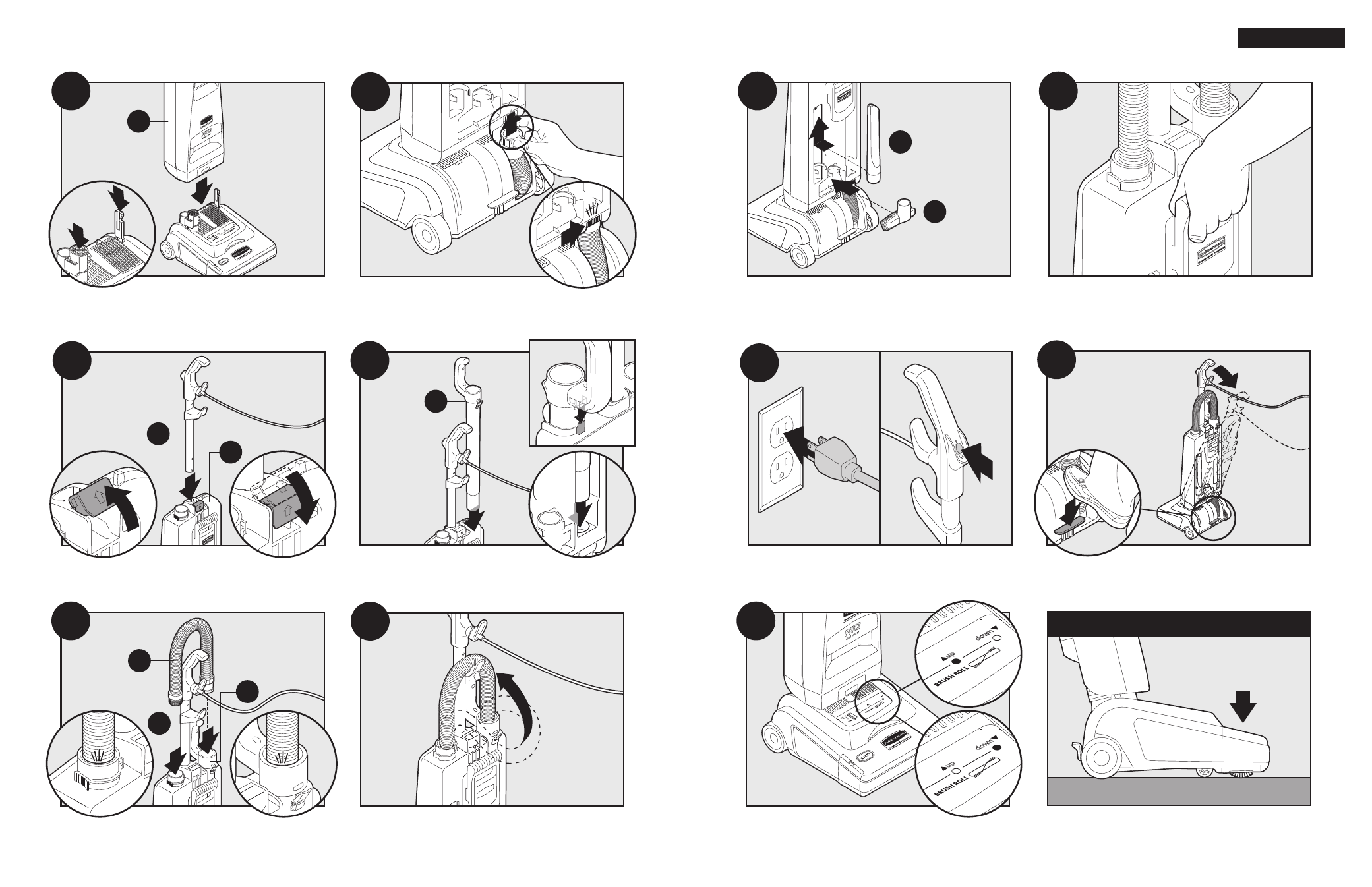

While inserting upper collar of nozzle hose into opening on
bottom of upper structure, push latch to right to ensure secure
connection.
While holding the upper structure vertically, align over dirt
duct and lever arm. Lower upper structure onto duct and lever
arm, and push down firmly to snap into place.
2
1
3
3
A
C
Lift the handle release button. Place handle assembly into opening
on top of upper structure, and push down firmly to fully insert.
Return handle release button to down position to lock into place.
Insert wand into channel on rear of vacuum cleaner. Ensure
bottom properly nests into body, and that top rests on tab.
4
D
Insert upper hose into opening on upper structure, as well as
into opening at the top of the wand. Push hose into openings
until it snaps into place.
5
B
D
C
6
7
E
F
8
Operation – PH Units
Plug power cord into outlet. Turn power switch to “on.” To release the vacuum cleaner from the upright position, press
the handle release pedal.
On hard floors, the adjustment wheel moves upward into the
nozzle base so that the brush roll is lowered.
1
2
1
Hand upper hose onto hose hook.
2
1
2
Power height adjustment motor will automatically adjust
brush roll height. LED lights indicate action. First, the “up”
light will signal, then the “down.” After nozzle lowers and the
“down” LED turns off, vacuum is ready for use.
Hard floor
