Air Ride Technologies
90º Drill
Step Bit
Front
Facto
ry
Holes
Fron
t
Four Hex
Head Bolts
Drill Template
Mark The Final
Two Holes To
Be Drilled
Reinforcement
Plate (70909)
Trunk Bar
(7090)
Seat Back
41180000
6
70-73 Camaro TigerCage
Main Hoop Installation
Step 0. Place the driver side trunk bar
Part # 7090 inside the trunk flush against
the seat back. Insert two 3/8” x 1¼” hex head
bolts and washers through the reinforcement
plate Part # 70909, seat back and trunk
bar from inside the vehicle. Secure with two
Nyloc nuts and washers. Do not tighten yet
(See Fig 11).
NOTE: Install all bars before final tightening.

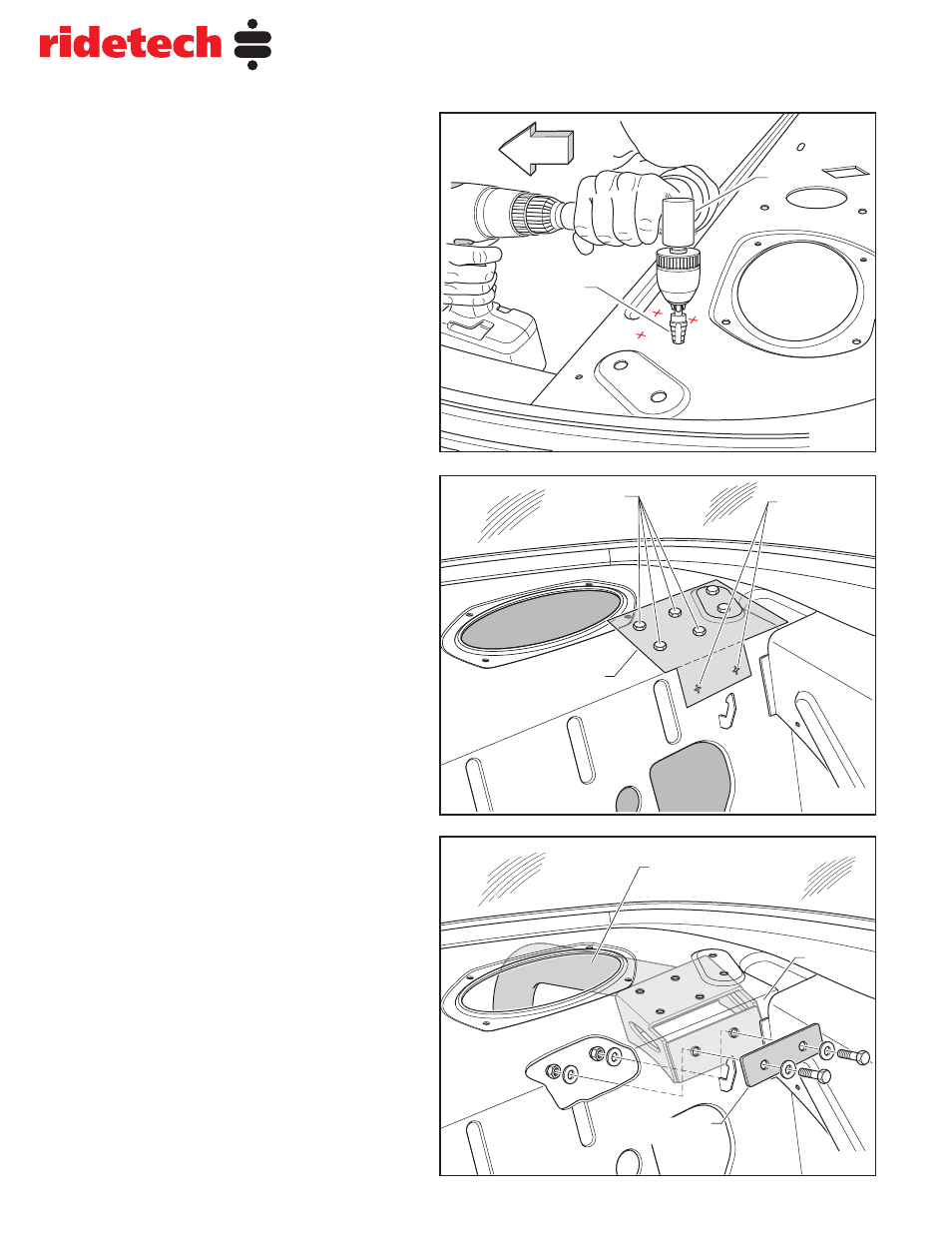

Step 8. Drill four holes to 1/2” diameter using a
90º drill or drill attachment and step bit
(See Fig 9). We suggest using a center punch
on the marks you just made to aid in drilling.
Care must be taken not to break the rear glass
while using the center punch.
NOTE: If you don’t have access to a 90º drill,
drill attachment or step bit you can pick them
up at your local auto parts store.
Step 9. Align the drill template again on the
package tray in the same manner as described
in step 7. Slip four additional 3/8” hex head
bolts through the drill template and holes you
just drilled to hold the template in place. Roll
the front edge of the template down against the
seat back sheet metal and mark the remaining
two holes to be drilled (See Fig 10). Remove
the template and drill out the two holes using a
1/2” drill or step bit.
Fig 9
Fig 0
Fig
