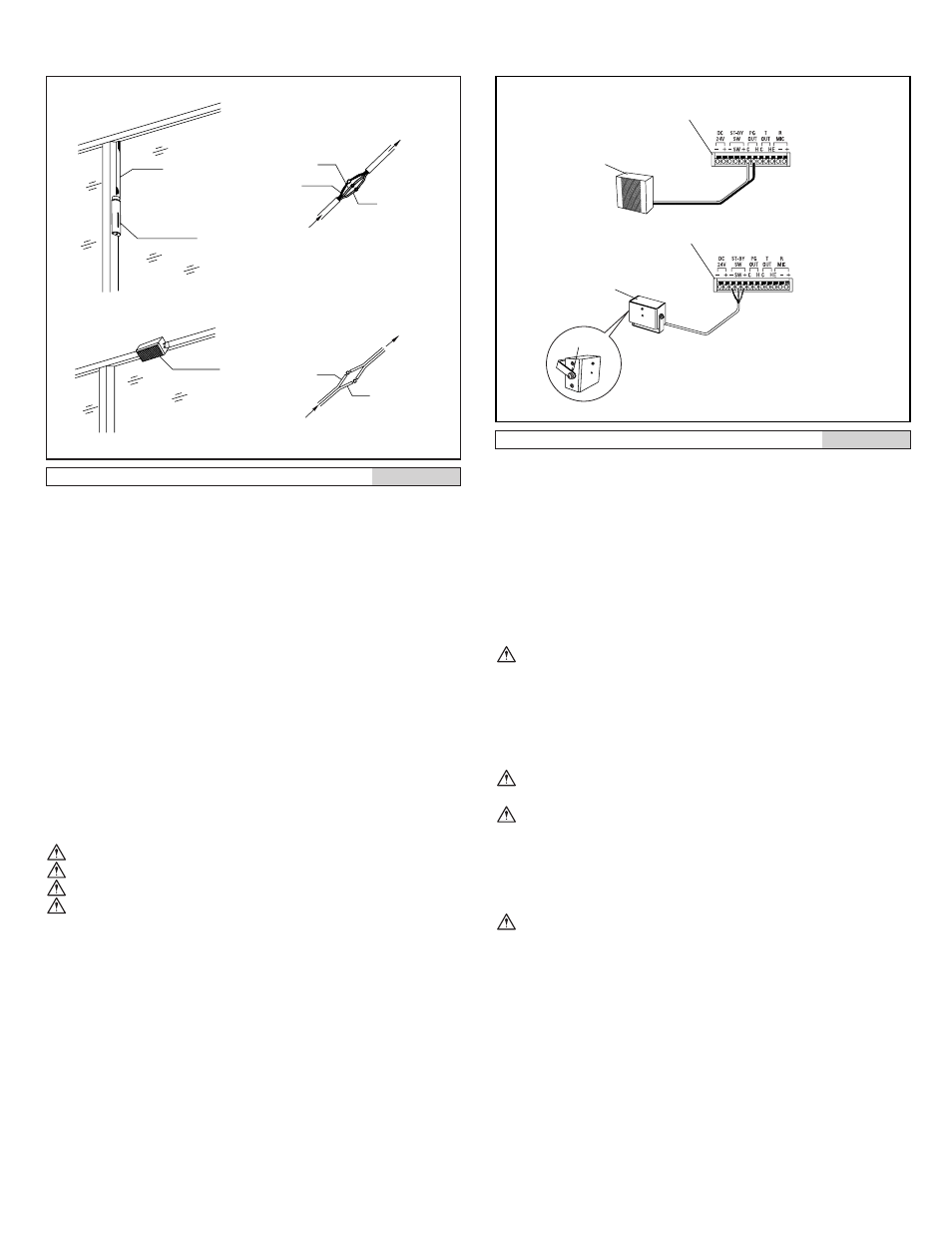

Outer microphone/speaker

[1] Raceway
[2] Optional microphone
[3] Outer speaker
1. Attach the optional microphone with double-sided tape along

the architectural sash. Clean the surface before attaching. Use a
strong industrial double-sided tape that can attach aluminum
and glass.

• Examine the wiring route in advance and determine the best

layout. The appropriate position is at the height of the customer's
head, and approximately 300mm to 400mm (12-16") to the right
or left.

2. Splice the 2-conductor shielded cable from the optional

microphone with the 2-conductor shielded cable from the main
unit.

3. The outer speaker is purchased separately. For installation,

follow the instructions provided with your speaker.

• The speaker should be above the customer's head. Select a

suitable wiring route and determine the installation position.

4. Splice the cable from the outer speaker with the cable from the

main unit.

1. Insulate the spliced wires.
2. Lay out the wires within the sash, or use a raceway.
3. Be sure to splice the cables with the correct polarity.
4. The optional microphone is not weather resistant.

Options

[1] Paging speaker
[2] Terminal block
[3] Sensor ISE-100
1. Use the instructions provided with the product when installing

the paging speakers. There are many types of speakers
available, such as wall speakers, ceiling speakers and horn
speakers. Select the type most suitable for your paging
broadcast area and your needs.
Impedance: 4 to 8

Rated input: 3 W or more
Maximum input: 6 W or more

Be sure not to short the speaker cable and the power supply

cable (24V), as it could cause a speaker malfunction.

2. Install the sensor under the counter on the customer side or on the

upper section of the wall with the 2 screws provided. There are screw
holes in the handle of the sensor. Insert the sensor output cable (2-
conductor shielded cable) into the STBY [+ SW -] terminal of the
main unit terminal block, making sure that the polarity is correct.

1. Install the sensor in a position where the customer will be

sure to enter the detection area: approximately 2m, 6'6".

2. The initial sensitivity setting for the sensor is maximum.

Turn the sensitivity volume knob counterclockwise to
reduce the sensitivity. The sensor is operating if the LED
(green) on the sensor main unit display is illuminated. After
an object stops being detected, it takes about 10 seconds for
the sensor to turn off.

3. If the lens of the sensor is dirty or dusty it could interfere with

operation. It is also possible that children may play around
with the sensor. Take preventative measures as necessary.

NOTES: The STBY [SW –] in the main unit terminal block can

be used as a communication "normally open" input
terminal. If the switch is in the closed position, the
operation is the same as if the TALK button were
pushed. Use the method most suitable for your needs.

Rated voltage: DC 30 V
Rated current: 15 mA
Contact resistance: 100

Ω or less

Cable layout length: Maximum 20m,65'(Ø0.65 mm

(22AWG) to 1.2 mm (16AWG))

For details, please contact your local distributor.

English

4-13

to Main unit

to Main unit

from

External mic.

from

External speaker

(-) White

(E) Shield

(+) Red

(+) Black

(-) White

1

2

3

4

[1]

[2]

[3]

1

2

[3]

[2]

[1]

[2]

Volume
