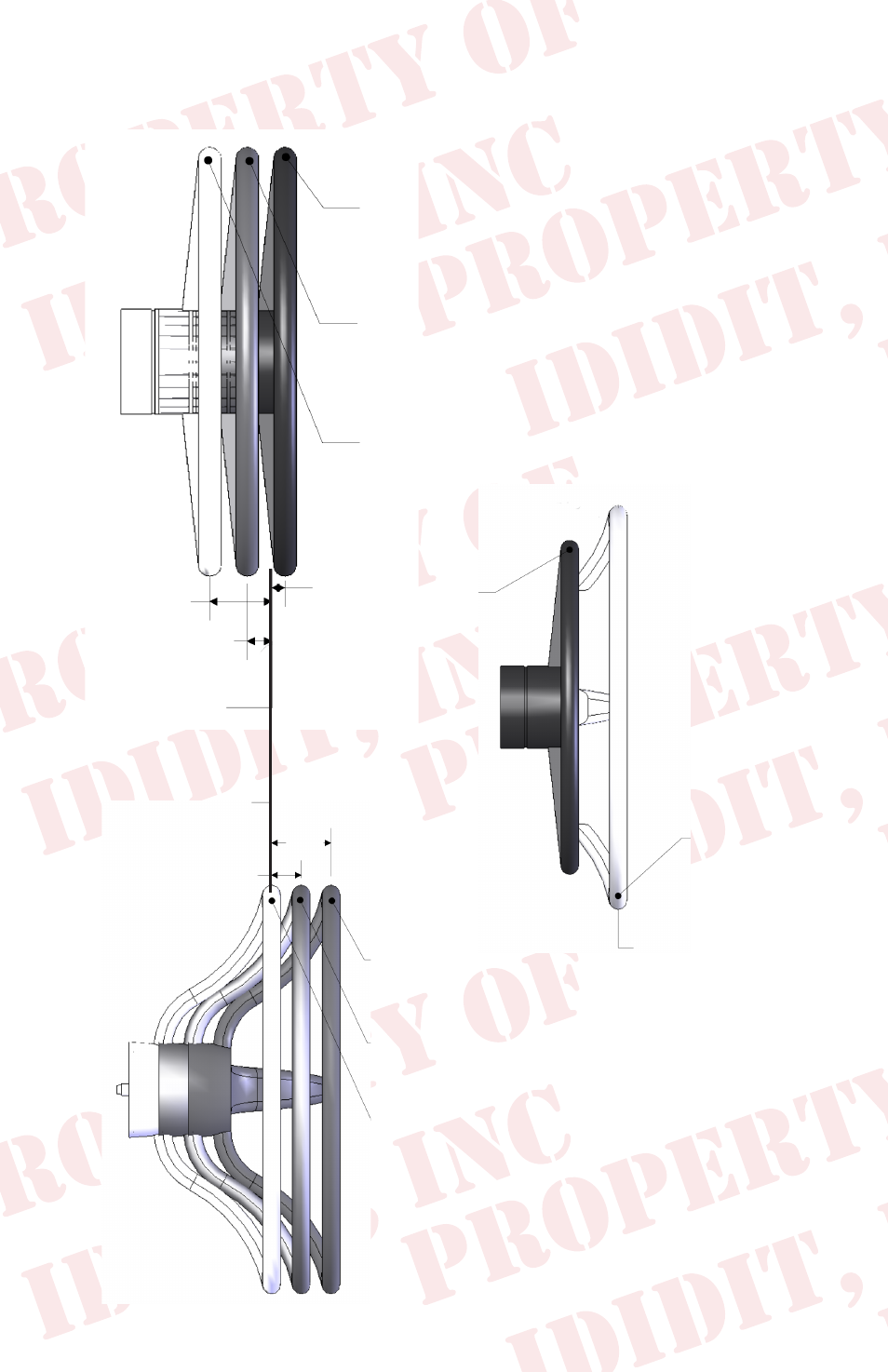

After market steering wheel with the short

adaptor on the new column with shift and tilt

After market steering wheel with the short

adaptor on the new column with tilt and no

shift

After market steering wheel with the short

adaptor on the new column with shift and no

tilt

2.063

.813

.438

After market

steering wheel

with the short

adaptor on the

original column

Original

equipment

steering wheel

center line on

the original

column

1.25

2.5

O.E. steering wheel on the

new column with shift and

tilt

O.E. steering wheel on the

new column with tilt and

no shift
O.E. steering wheel on the

new column with shift and

no tilt

O.E.

CENTER

LINE

O.E.

CENTER

LINE

O.E.

CENTER

LINE

s

teerIng

c

olumn

and

w

heel

a

daptor

c

omparIsons
