7

Electrical

(cont.):

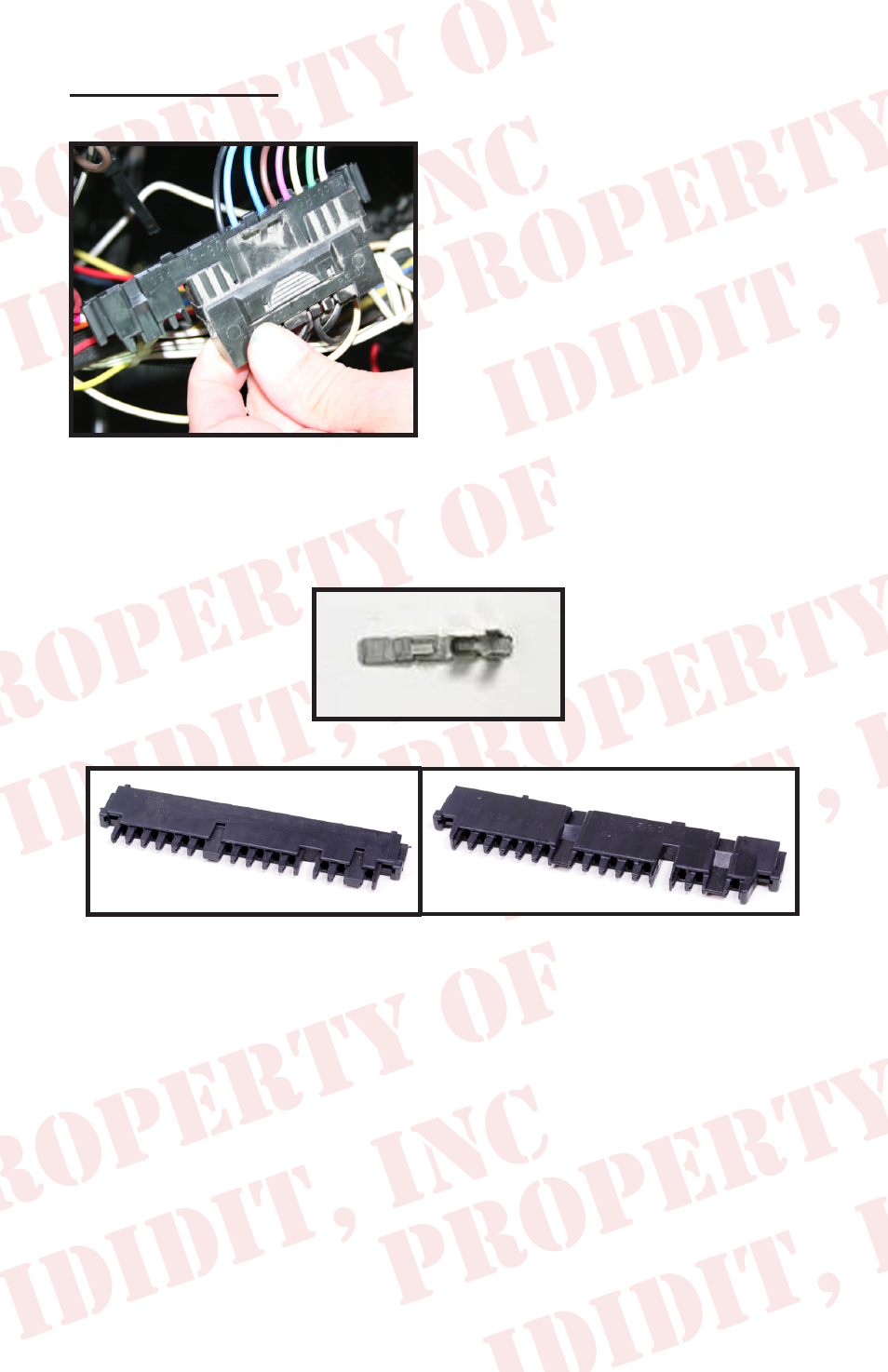

Turn signal connections:

1970-74 cars will use the

installed 3 7/8 inch wide wire

plug. (Figure 16) Just plug the

two connectors together. They

should match color for color.

1975 cars will require the

connector to be changed to the

4 ¼ inch connector (Figure 17).

Use a small regular screwdriver

or scribe to probe into the open

end of the connector and release the terminals. Then re-install the

terminal in the 4 ¼ inch plug in the same terminal location (note

the terminal locations letter P Thru G).

Test the turn signals:

1. Leave key off and push emergency flasher in. All 4 corners

and dash indicators should light and flash. (Pull for off)

2. Push brake pedal, brake lights should come on.

3. Turn key to on position.

4. Check both left and right turn signals and indicators.

(Figure 16)

(Terminal)

4 1/4

3 7/8

(Figure 15)

(Figure 17)
