for full synchronization is as follows:

1. The front wheels must be pointing straight forward with the steering

toe set reasonably close.

2. Rotate the input shaft of the gearbox or rack from lock to lock and set

the box exactly half way between. For example, if the shaft rotates

three full turns from lock to lock. The center will be at 1½ turns from

either locked position.

3. Install the steering arm and drag link, and adjust tie rod ends to get the

drag link to fit without moving either the box/rack or the front wheels.

Rotating each tie rod end the same number of turns will preserve

adjustment.

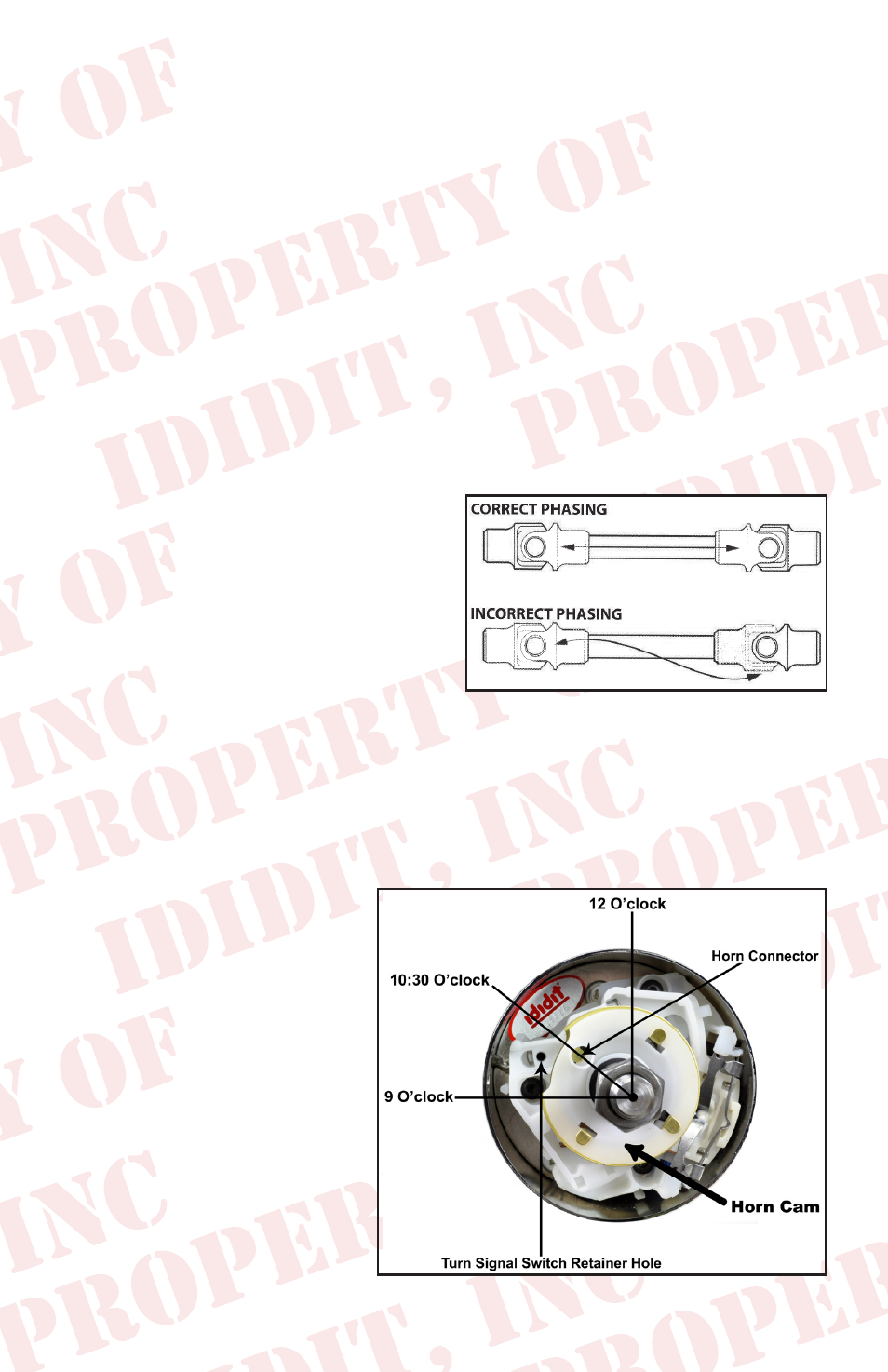

4. With the column mounted in position and two joints are used on a

shaft, the forks of the yokes

closest to each other should be

in line, or “in phase”. Premature

wear or binding can result if the

u-joints are not phased properly.

Sometimes if the u-joints are at

a severe angle, even if they are

phased correctly, a hard spot in the steering may occur for no apparent

reason. If this happens, index the u-joints two or three splines in one

direction. The hard spot should disappear or be minimized.

5. Install the shaft or joint on the gear box/rack. Leave the upper part of

the shaft unconnected for the time being.

6. Position the column

housing so that the signal

switch arm is level to the

left hand side.

7. Install the column

through firewall, into

your joint.

8. To achieve proper

synchronizing of your

column the finished

installation of your

column should look like

4

Diagram 1
