Extang Solid Fold General Installation - Manual (Page 2)

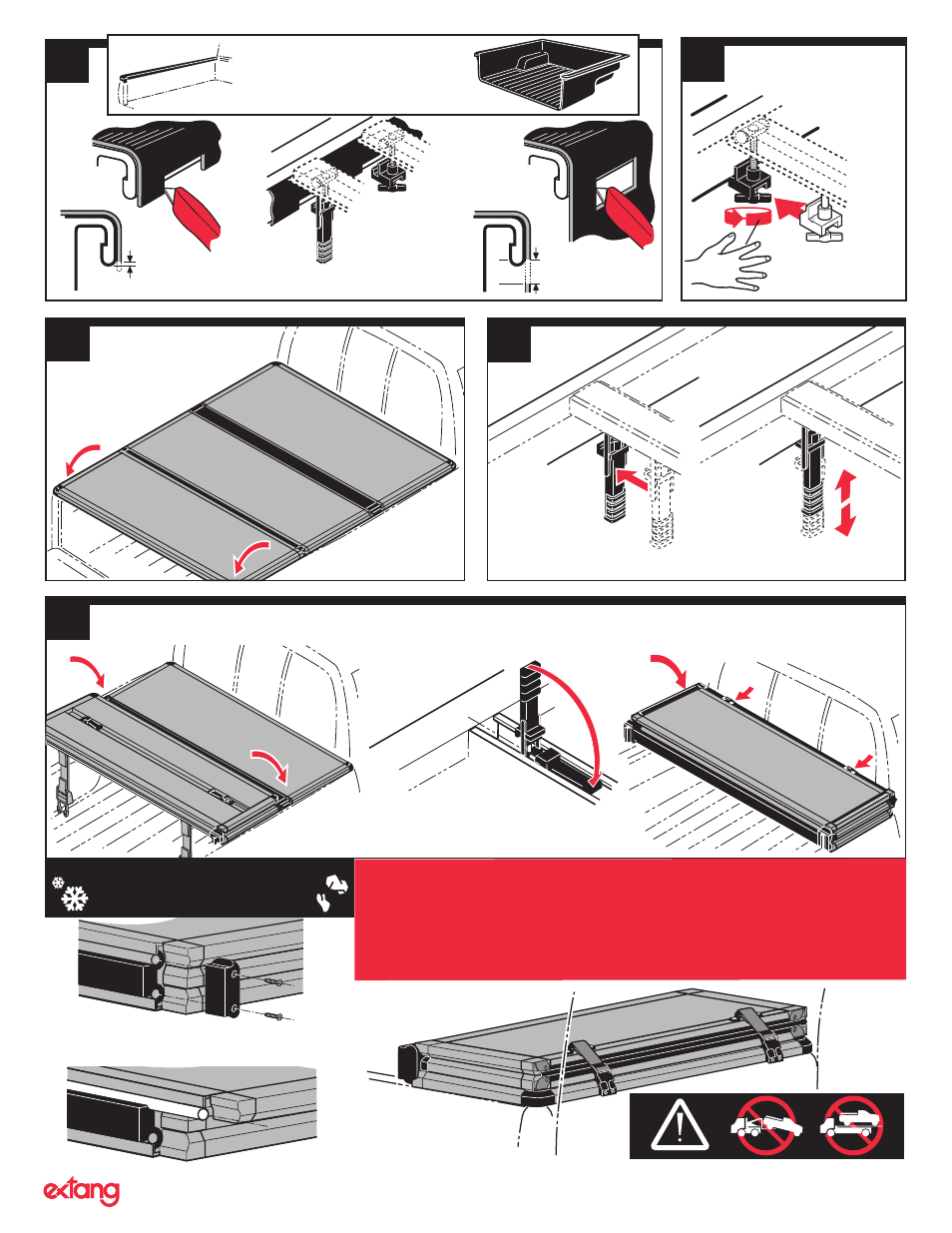

Pull rear
clamp down
and hook
under bottom
edge of bed
wall flange.
Extang Corporation, 5400 S. State Road, Ann Arbor, MI 48108, 734 677-0444, Fax: 734 677-8409 Visit us at: extang.com
Slide rear clamp
out to the bed
wall.
Ensure clamp is positioned
under bed wall flange. Hand
tighten until clamp contacts,
tighten an additional
two turns.
Trim only enough of the bed cap edge or liner wall so
clamp contacts bottom of metal flange.
Do not secure to only lip
of bedliner or wall cap.
Do Not Use Wrench
or Overtighten!
4
6
5
7
8
With tailgate open and front
clamps secure, completely
close the cover.
It is very convenient to drive with the SOLID FOLD cover
open. Release the rear clamps and fold the cover forward.
Fold the cover forward and fasten the straps in
the middle section to the front rail.
IMPORTANT: Before folding the second
section of the cover, rear clamps must
be stowed securely into rail.
100mm
If your truck has a wall cap or bedliner
that covers the metal bed wall flange,
you will need to remove enough so that
all the clamps make solid contact.
To remove foreign matter from panel hinges,
remove one end cap and slide panels apart.
Reassemble after cleaning.
IMPORTANT NOTICE
While driving, cover must be completely flat and secure with all
four clamps in the closed position or completely folded up (all
panels) and secured at the cab. DO NOT DRIVE with cover in
partially opened position.
Remove any snow or foreign matter
before folding cover.
