Extang Platinum BlackMax: Ford F150 Super Crew - Manual

PARTS INCLUDED IN YOUR KIT. You may want to lay them out in this manner for accessibility.
MISSING PARTS???
call Extang at 1-800-877-2588
Any and all needed parts will be shipped to you
directly. (DO NOT return whole kit to store).
Extang Corporation
5400 S. State Road
Ann Arbor, MI 48108
734 677-0444, Fax: 734 677-8409
Register your warranty at:
extang.com
I t e m N o . 0 0 2 3 - 1 4 0 3 R H P r i n t e d i n U . S . A .

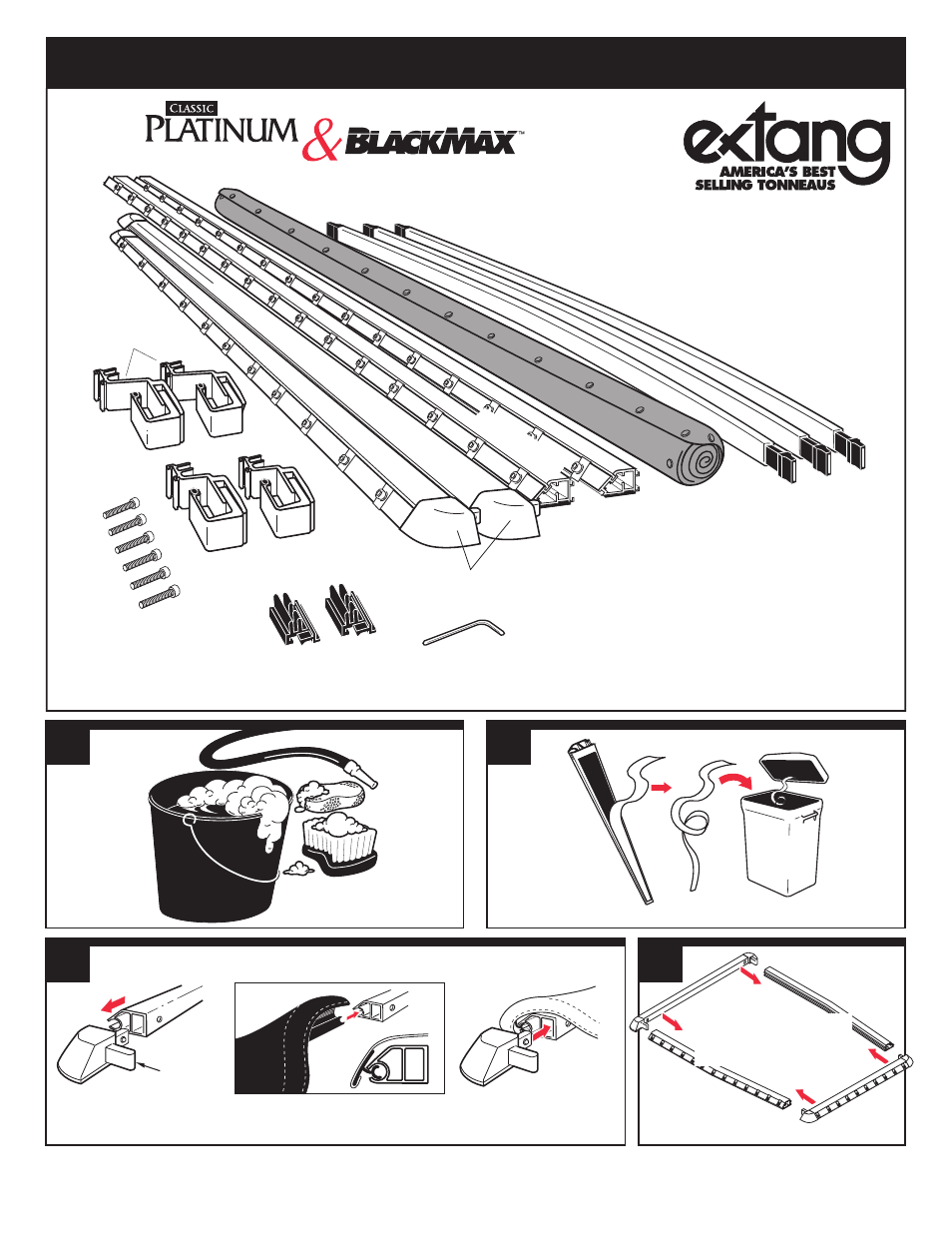

INSTALLATION SHEET
-F150 Super Crew
3
Remove paper tape from all rails. Discard properly.
Foam has NO adhesive to
touch truck finish.
Wash truck bed.
P L E A S E
D O N O T
L I T T E R
Pull back on the ClickLock TM
release and remove one
corner from cab rail.
Feed tarp dowel into cab rail.
(NOTE: For easiest feeding action, place tarp on a flat
smooth surface, and keep dowel straight while feeding
into cab rail. Caution, pavement may scuff tarp.)
Reinsert corner piece into
cab rail until it “clicks” and
locks into place.
ClickLock TM
1 2
NOTE:
B LACK M AX has snaps on all rails.
4
Allen Wrench
Clamp Bolts
Tarp
Bows
Corner Pieces
Long Neck
Side Rail Clamps
(x2)
Short Neck
Side Rail Clamps (x2)
Bow Clips (x2)
For Classic Platinum only (This step does not apply to BlackMax)
Off the truck bed, connect
the end rails to the two
side rails utilizing the
ClickLock™ corners.
Cab
Rail
(Bla
ckM
ax
inc
lud
es
sna
ps
on
this
rail
)
Tailgat
e Rail
Side R
ails
