Extang Tuff Tonno: GMC/Chevy Stepside 88-98 User Manual

Installation sheet, Gmc/chevy stepside ‘88–’98

background image

Off the truck bed,

connect the end rails to

the side rails.

Feed tarp dowel into cab rail.

(

NOTE: For easiest feeding action, place tarp on a flat

smooth surface, and keep dowel straight while feeding into

cab rail.

Caution, pavement may scuff tarp.)

PARTS INCLUDED IN YOUR KIT. You may want to lay them out in this manner for accessibility.

Extang Corporation

5400 S. State Rd.

Ann Arbor MI 48108

734-677-0444, Fax: 734-677-8409

Register your warranty at:

extang.com

I t e m N o . 0 0 0 3 - 0 11 4 R H P r i n t e d i n U . S . A .

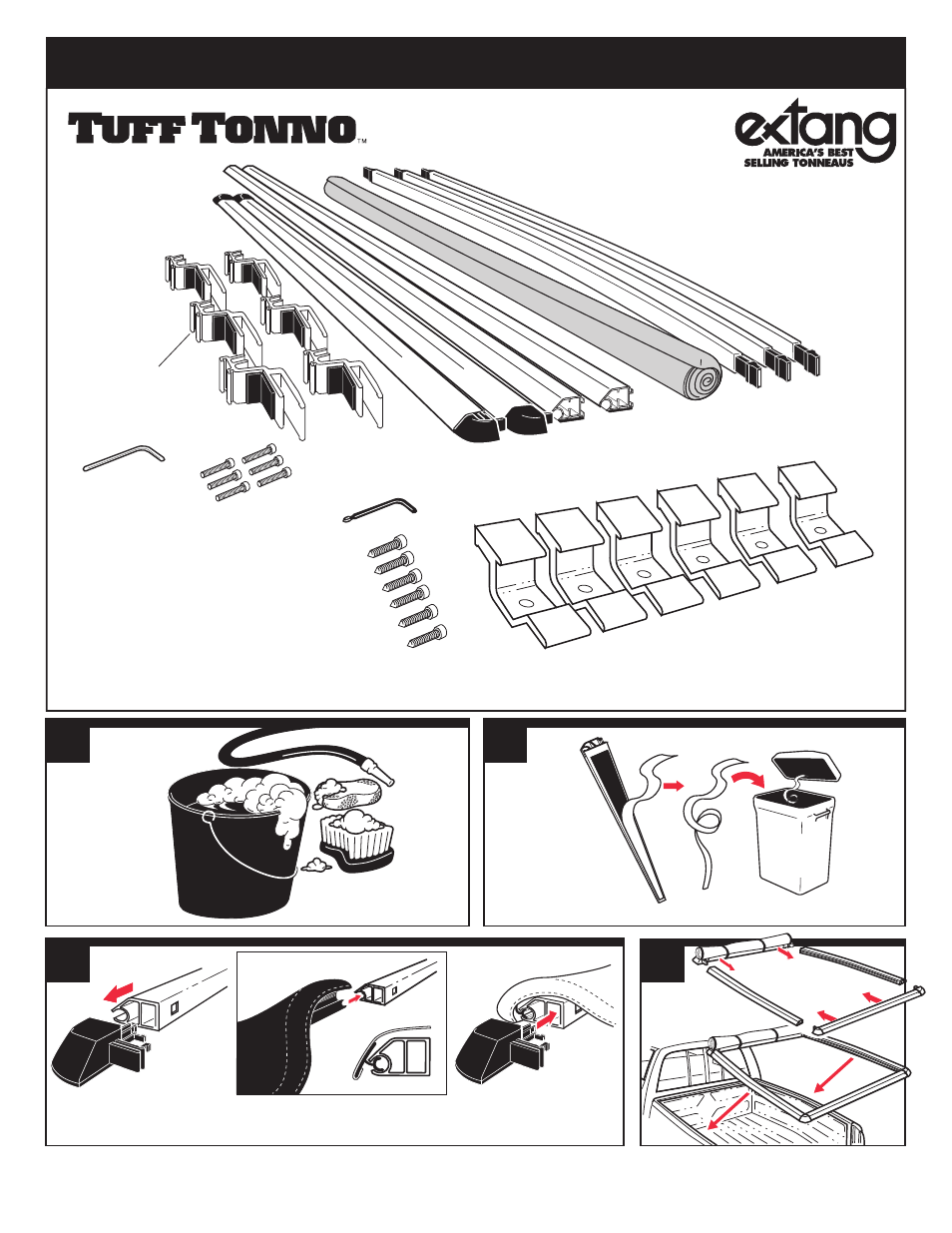

INSTALLATION SHEET

GMC/Chevy Stepside ‘88–’98

Remove paper tape from all rails. Discard properly.

Foam has NO adhesive to

touch truck finish.

Wash truck bed.

P L E A S E

D O N O T

L I T T E R

4

3

1

2

MISSING PARTS???

call Extang at

1-800-877-2588

Any and all needed parts will be shipped

to you directly.

(DO NOT return whole kit to store)

NEW Improved

“DOUBLE HOOK”

Side Rail Clamps

Side Rail

Clamps

Tarp

Bows

Side Rails

TuffKlamps™

Corner Pieces

(Saber Tonno corners are

brushed aluminum)

Clamp Bolts

Allen Wrench

Torx

Wrench

Reinsert corner piece into

cab rail until it “clicks”

and locks into place.

Depress the LeverLock

TM

mechanism,

release, and remove one corner

from cab rail.

Cab R

ail

Tailgat

e R

ail

Hex

Bolts

Place assembly

over truck box.

Center between

cab and tailgate.
