Extang Tuff Tonno: Ford F150 Super Crew - Manual

Off the truck bed,
connect the end rails to
the side rails.
Register your warranty at:
extang.com
I t e m N o . 0 0 0 2 - 0114 RH P r i n t e d i n U . S . A .
PARTS INCLUDED IN YOUR KIT. You may want to lay them out in this manner for accessibility.
Extang Corporation
5400 S. State Rd.
Ann Arbor MI 48108
734-677-0444, Fax: 734-677-8409

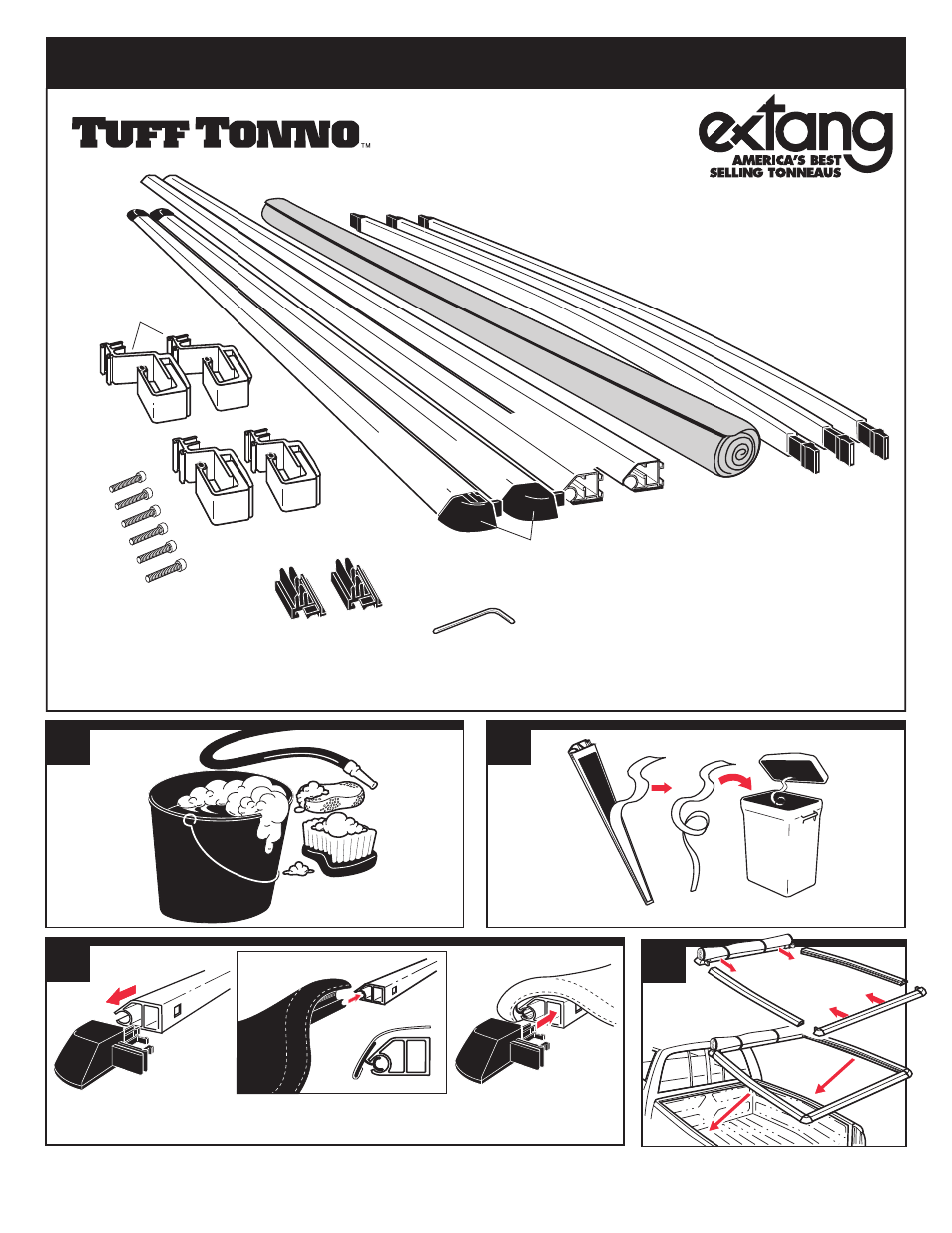

INSTALLATION SHEET
-F150 Super Crew
Remove paper tape from all rails. Discard properly.
Foam has NO adhesive to
touch truck finish.
Wash truck bed.
P L E A S E
D O N O T
L I T T E R
Feed tarp dowel into cab rail.
( NOTE: For easiest feeding action, place tarp on a flat
smooth surface, and keep dowel straight while feeding into
cab rail. Caution, pavement may scuff tarp.)
4
MISSING PARTS???
call Extang at
1-800-877-2588
Any and all needed parts will be shipped
to you directly.
(DO NOT return whole kit to store)
1 2
3
Clamp Bolts
Long Neck
Side Rail Clamps
(x2)
Short Neck
Side Rail Clamps (x2)
Bow Clips (x2)
Allen Wrench
Tarp
Bows
Reinsert corner piece into
cab rail until it “clicks”
and locks into place.
Depress the LeverLock TM mechanism,
release, and remove one corner
from cab rail.
Cab R
ail
Tailgat
e Rail
Side R
ails
Corner Pieces
(Saber Tonno corners are
brushed aluminum)
Place assembly
over truck box.
Center between
cab and tailgate.
