Extang FullTilt General Installation (Snapless style) User Manual
Installation sheet

I t e m N o . 0 1 3 0 - 1 4 0 2 R H P r i n t e d i n U . S . A .

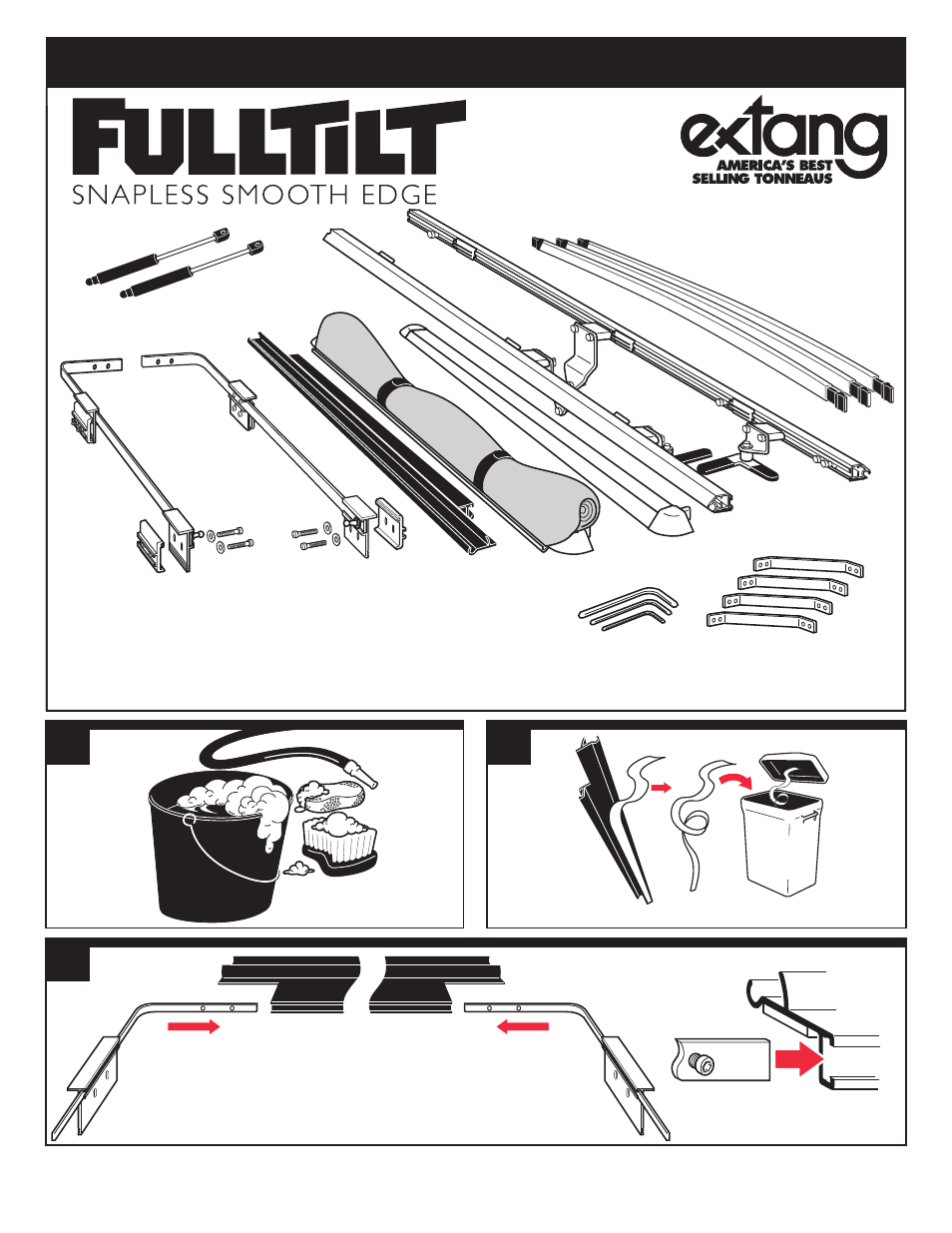

PARTS INCLUDED IN YOUR KIT. You may want to lay them out in this manner for accessibility.
Remove paper tape from lower hinge rail. Discard properly.
Foam has NO adhesive to
touch truck finish.
Wash truck bed.
P L E A S E
D O N O T
L I T T E R
Insert “L” bars into the channel in
the lower hinge rail.
Do not tighten.
Spring Bows
(x3-Short Bed)
(x4-Long Bed)
Side Rails
(L and R)
Corner Braces
(x4)
Tailgate
Rail
Lower
Hinge Rail
Gas Struts (x2)
“L” Bars
(L and R)
with clamps
included
Upper Hinge Rail
w/Tarp attached
Allen Wrenchs
(3 sizes)
INSTALLATION SHEET
MISSING PARTS???
Call Extang at
1-800-877-2588
Any and all needed parts will be shipped to you directly.
(DO NOT return whole kit to store)
Register your warranty at:
extang.com
Extang Corporation
5400 S. State Rd.
Ann Arbor MI 48108
734-677-0444, Fax: 734-677-8409
