Installation sheet, Explorer spor t trac

background image

3

Feed tarp dowel into cab rail.

(NOTE: For easiest feeding action, place tarp on a flat

smooth surface, and keep dowel straight while feeding into

cab rail. Caution, pavement may scuff tarp.)

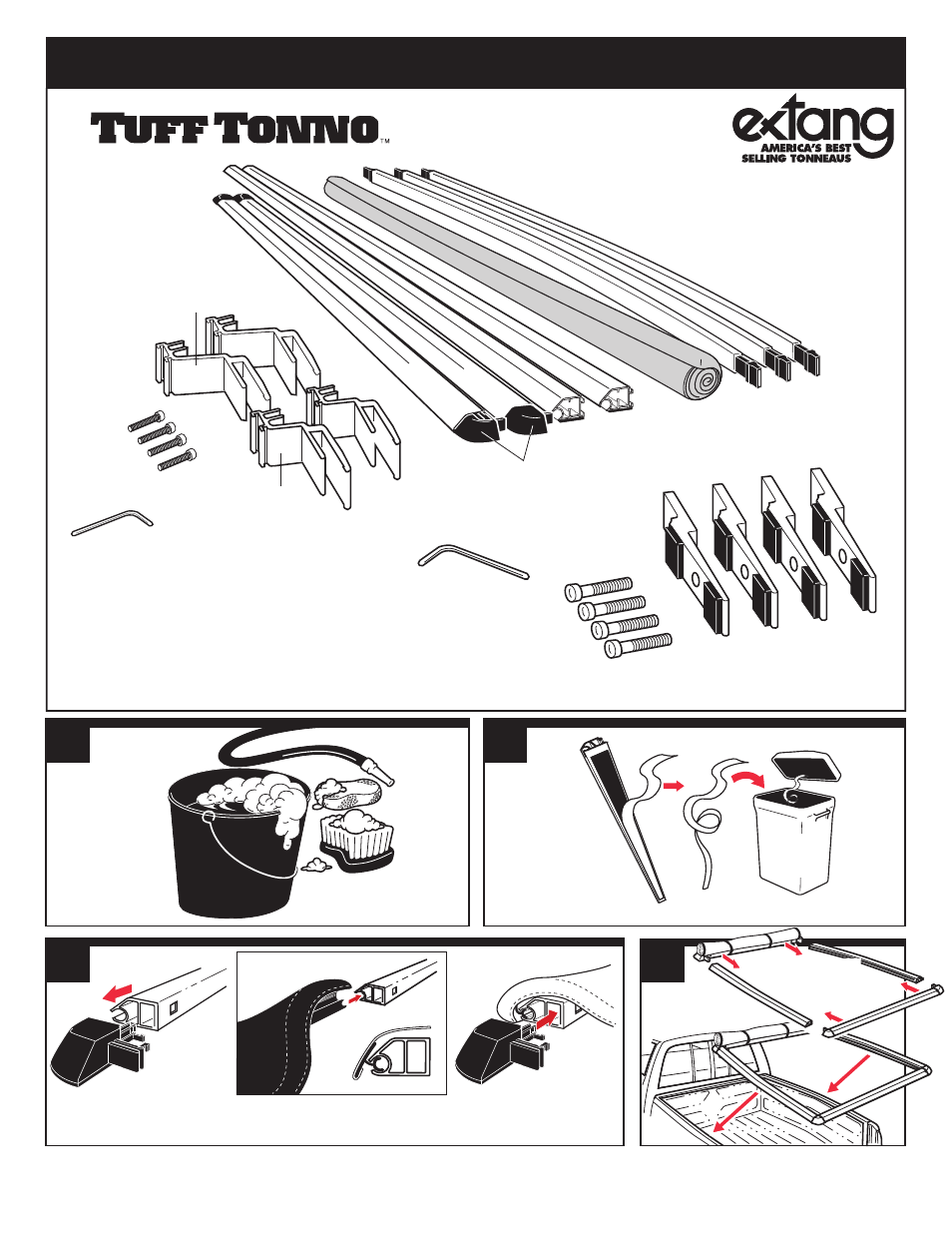

PARTS INCLUDED IN YOUR KIT. You may want to lay them out in this manner for accessibility.

MISSING PARTS???

call Extang at

1-800-877-2588

Any and all needed parts will be shipped to you

directly. (DO NOT return whole kit to store)

Extang Corporation

1901 E. Ellsworth Rd.

Ann Arbor, MI 48108

734 677-0444, Fax: 734 677-8409

Register your warranty at:

www.extang.com

I t e m N o . 0 0 0 5 - 0 7 0 8 R H P r i n t e d i n U . S . A .

INSTALLATION SHEET

-Explorer Spor t Trac

Remove paper tape from all rails. Discard properly.

Foam has NO adhesive to

touch truck finish.

Wash truck bed.

P L E A S E

D O N O T

L I T T E R

1

2

4

Clamp Bolts

Long Neck

Side Rail Clamps

(x2)

Short Neck

Side Rail Clamps

(x2)

Sport Trac

Brackets (x4)

Tarp

Bows

Side Rails

Corner Pieces

(Saber Tonno corners are

silver die-cast zinc)

Allen Wrench

(3/16")

Metric

Wrench

(5 mm)

Replacement

Metric Screws (x4)

Reinsert corner piece into

cab rail until it “clicks” and

locks into place.

Depress the LeverLock

TM

mechanism, release, and remove

one corner from cab rail.

Cab Rail

Tailgate Rail

Place assembly

over truck box. Center

between cab and tailgate.

Off the truck bed,

connect the end rails to

the two side rails.
