Extang Tuff Tonno: Ford F150 04-08 - Manual

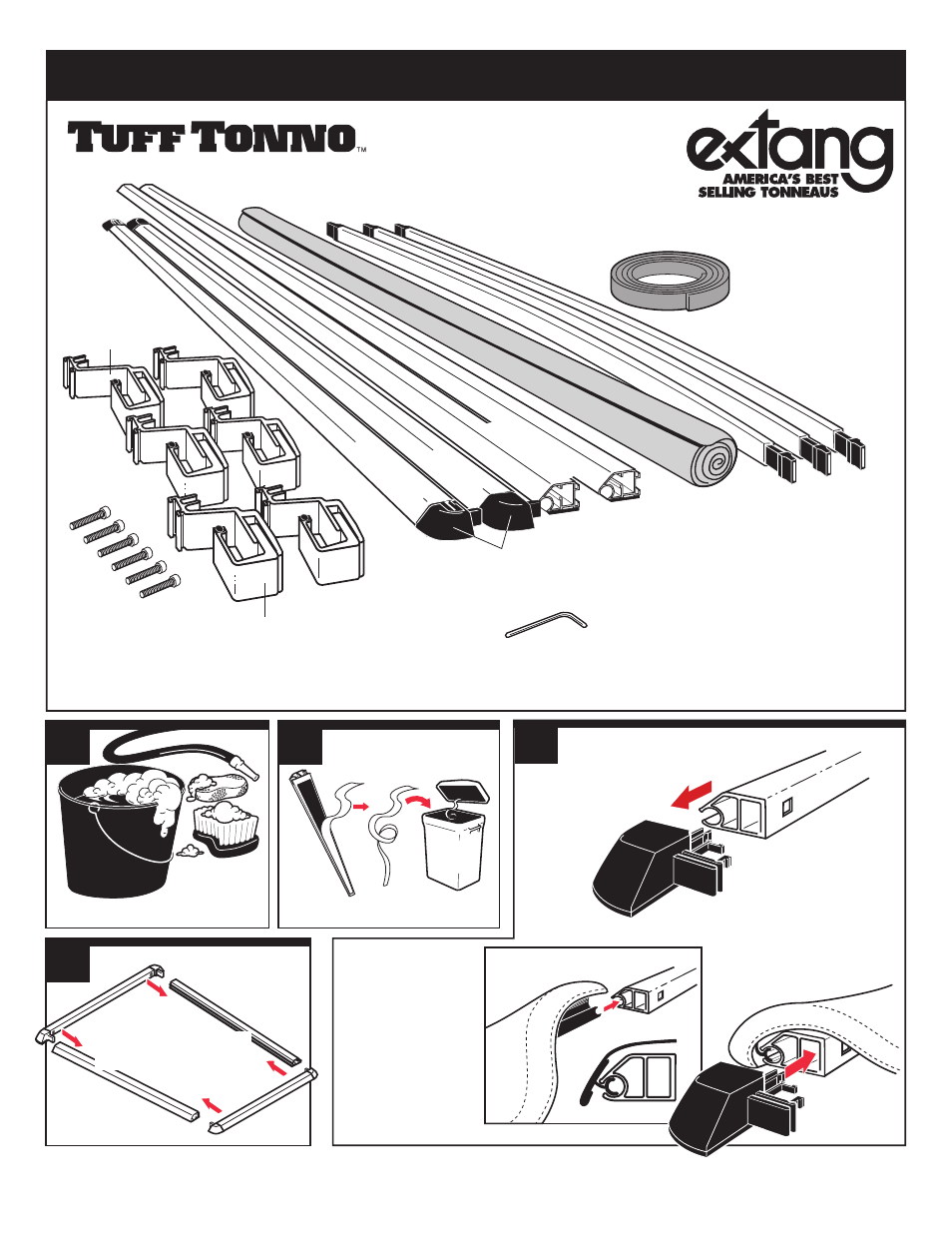

PARTS INCLUDED IN YOUR KIT. You may want to lay them out in this manner for accessibility.
MISSING PARTS???
call Extang at
1-800-877-2588
Any and all needed parts
will be shipped
to you directly.
(DO NOT return
whole kit to store)
Extang Corporation
1901 E. Ellsworth Rd.
Ann Arbor, MI 48108
734 677-0444, Fax: 734 677-8409
Register your warranty at:
www.extang.com
I t e m N o . 0 1 2 9 - 0 7 0 8 RH P r i n t e d i n U . S . A .
INSTALLATION SHEET
“U” Shaped Clamps
Note: LONG BED trucks have
8 clamps and bolts.
Remove paper tape from all rails.
Discard properly.
Foam has NO adhesive
to touch truck finish.
Wash truck bed.
4
1 2 3
Spring Bows
(x3-Short Bed)
(x4-Long Bed)
P L E A S E
D O N O T
L I T T E R
Extra Cab Seal
“DOUBLE HOOK”
Side Rail Clamps
(2 sizes)
Clamp Bolts
Ford F-150 ‘04–
Corner Pieces
(Saber Tonno corners are
silver die-cast)
Allen Wrench
Tarp
Bows
Reinsert corner piece into
cab rail until it “clicks” and
locks into place.
Feed tarp dowel into
cab rail. NOTE: For
easiest feeding action,
place tarp on a flat
smooth surface, and keep
dowel straight while
feeding into cab rail.
Caution,
pavement may
scuff tarp.
Off the truck bed, connect the
end rails to the two side rails
utilizing the ClickLock™ clips.
Depress the LeverLock TM
mechanism, release,
and remove one corner
from cab rail.
Cab Rail
Tailgate Rail
Side Rails
