Extang FullTilt General Installation (Snap style) - Manual

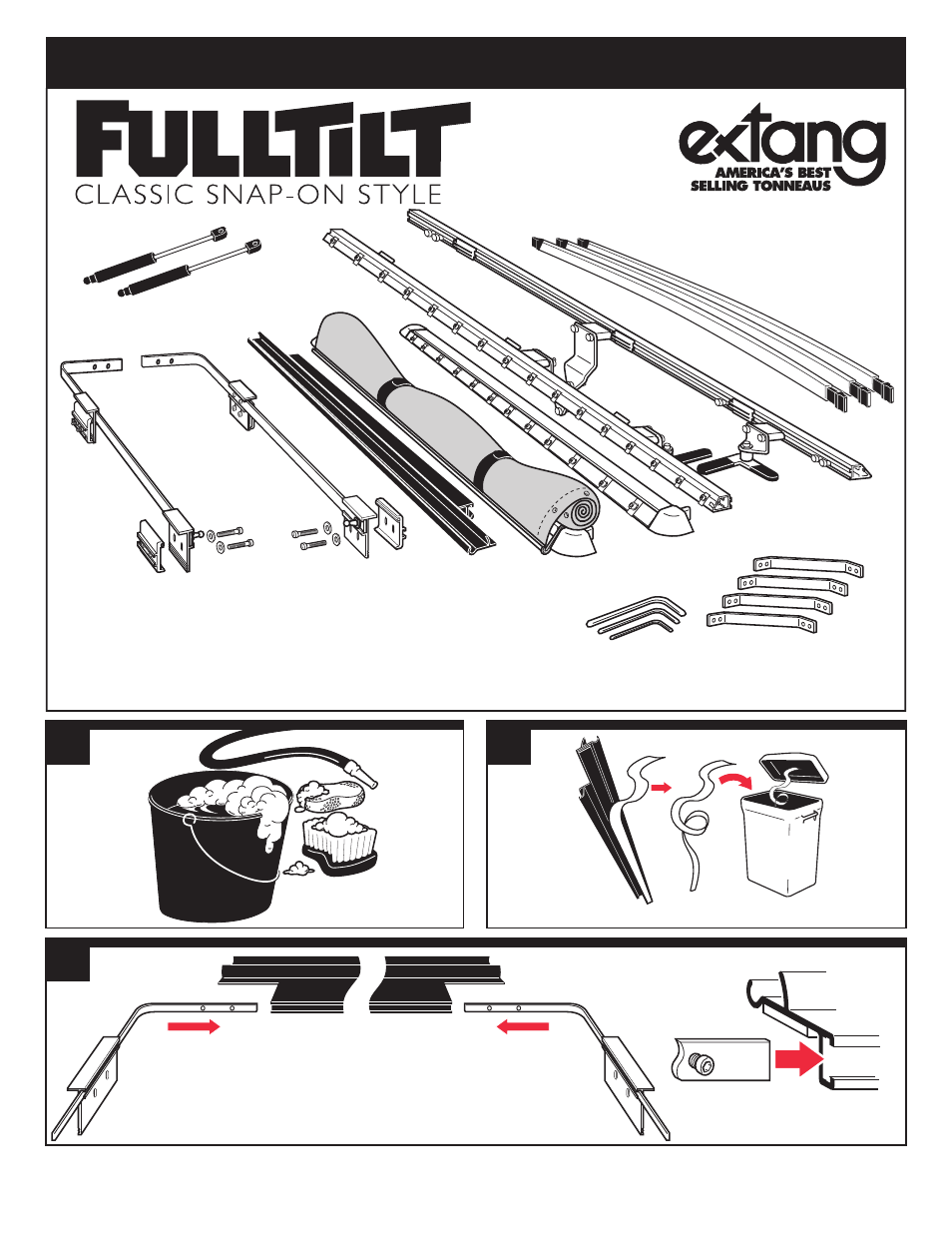

PARTS INCLUDED IN YOUR KIT. You may want to lay them out in this manner for accessibility.
Register your warranty at:
extang.com
I t e m N o . 0 0 3 5 - 1 4 0 2 R H P r i n t e d i n U . S . A .
INSTALL ATION SHEET
Remove paper tape from lower hinge rail. Discard properly.
Foam has NO adhesive to
touch truck finish.
Wash truck bed.
P L E A S E
D O N O T
L I T T E R
Insert “L” bars into the channel in the
lower hinge rail.
Do not tighten.
Spring Bows
(x3-Short Bed)
(x4-Long Bed)
Side Rails
(L and R)
Corner
Braces (x4)
Tailgate
Rail
Lower
Hinge Rail
Gas Struts (x2)
MISSING PARTS???
Call Extang at 1-800-877-2588
Any and all needed parts will be shipped to you directly.
(DO NOT return whole kit to store)
“L” Bars
(L and R)
with clamps
included
Extang Corporation
5400 S. State Road
0219
Ann Arbor, MI 48108
734 677-0444, Fax: 734 677-8409
Upper Hinge Rail
Assembly w/Tarp attached
Allen Wrenchs
(3 sizes)
