Extang Solid Fold: Dodge Rambox User Manual
Page 2

Do Not
Overtighten
Adjust tension by
moving Tension
Nut into Handle
1/2" – 5/8"
Tailgate Clamp
Hook clamp
directly into the
factory rail
STEP 4 Reinstall end plugs from the
slot in each factory side channel.

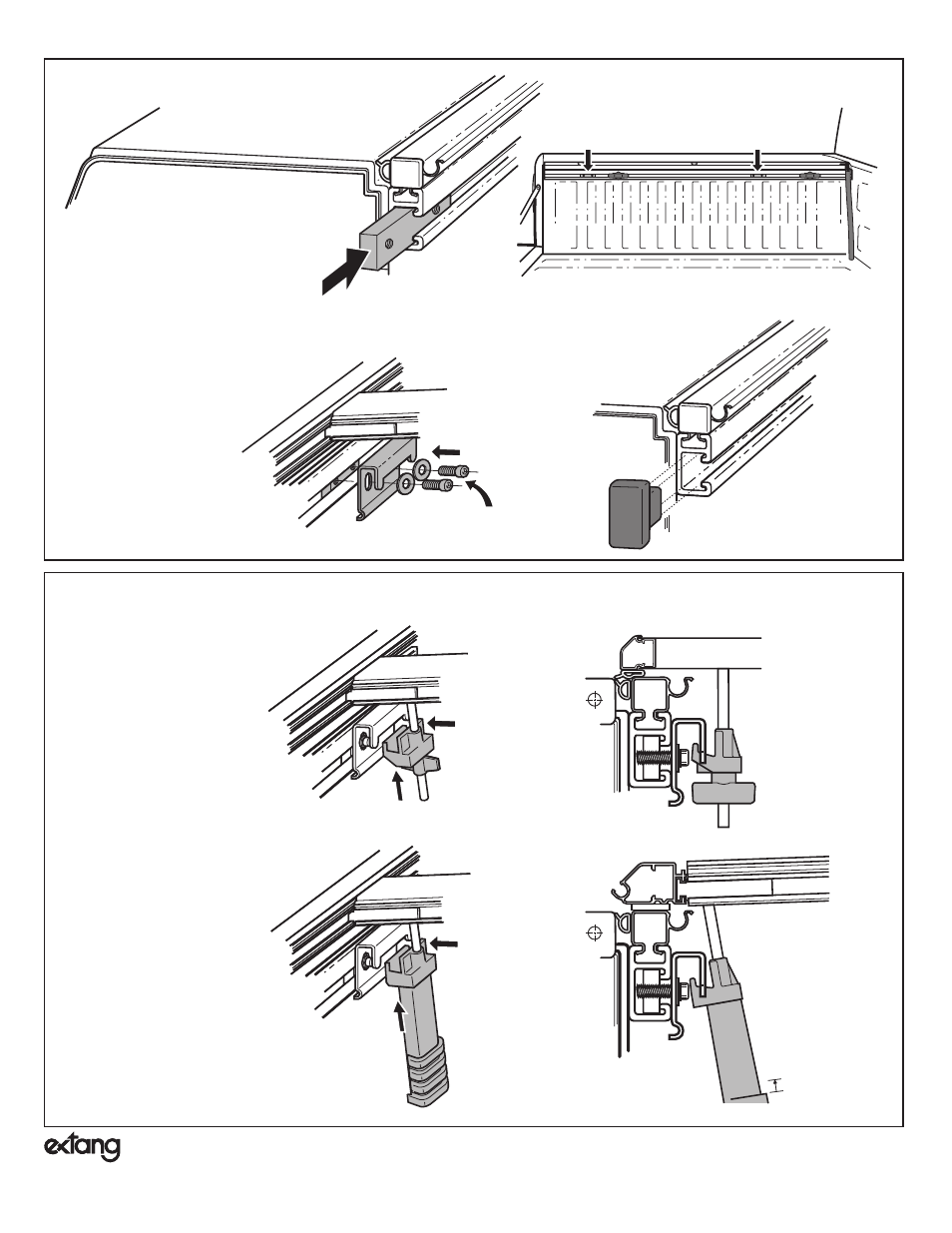

INSTALL Clamp Plates to RamBox side channels
ATTACH Tonno to the the clamp assembly.
STEP 1 Remove ONE (1) Cargo
Tie-down Cleat, insert ONE (1)
Double Slide-nut, then reinsert the
Cargo Tie-down Cleat into the
large slot into the RamBox side
channel.
Then insert the second (1) Double
Slide-nut.
STEP 2 Position the double slide nuts to
line up with the Tonno Slide Clamps.
STEP 3 Attach the Tonno Side
Clamps to the double slide
nuts and adjust position so
that they will engage the
Tonno Side Clamps.
Secure all.
Cab Clamp
Hook clamp
directly into the
factory rail
NOTE: Reposition the Cargo Tie-down Cleats as
needed to accommodate your load.
NOTE: Factory end plug
will help to hold the
RamBox rail in place.
Solid Fold
shown
Trifecta
shown
