Extang FullTilt General Installation (Snapless style) - Manual (Page 3)

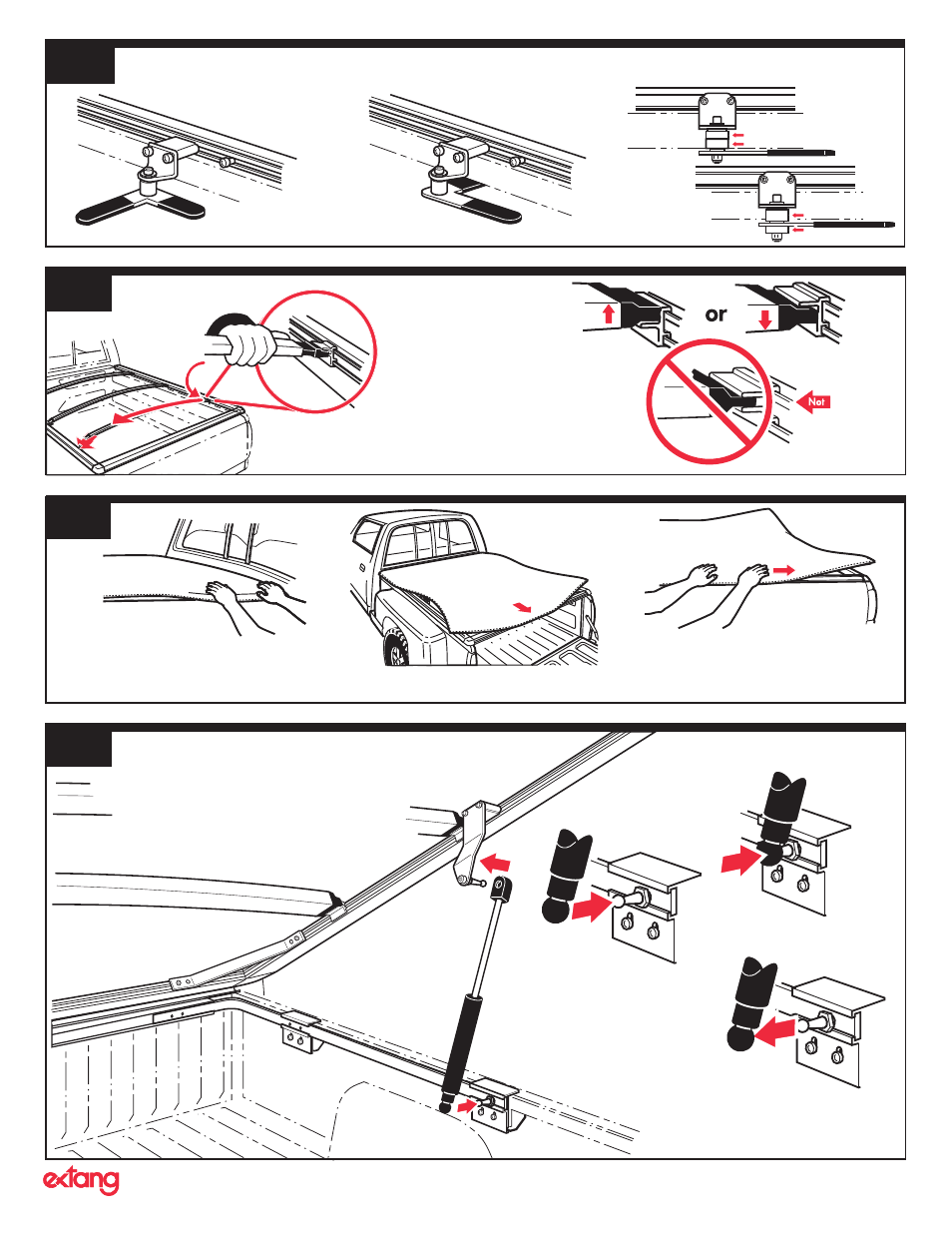

Ends are spring loaded for
easy installation. Push and
hold on spring end and let
the other end slide on with
the spring action. NOTE:
Center bow provides
support to side rails
and may seem tight
when inserting
between side rails. It
may be necessary to
pull out on side rails to
install the center bow.
Insert bow onto top or
bottom peg, (Top peg
for performance, Bottom
for good looks.)
SPECIAL FEATURE:
Two pegs offer two
height adjustments.
Note: Bow End does
not fit between pegs.
Do Not Place
Between the Pegs
Upper
Peg
Lower
Peg
Frame locking lever must be
parallel to side rail when
opening and closing tonno.
Locking lever is secure when positioned at
right angle to, and engaged with side wall.
Locking levers come from the
factory ready to fit your truck.
If lever doesnʼt fit
snugly under side, you
can restack bushing
to get a better fit.
ALWAYS latch tonno;
wind may open tonno, even when truck is stationary.
C. Finish attaching tarp along each
side by pushing down and sliding you
hand front to rear, and on tailgate
rail, by pressing out from the center.
A. Attach tarp from front corner
(12 inches) Repeat for each side.
Note: Pull tarp out while pressing down in center of the
side strip to flex hook open for easy attachement.
Push to
Lock
Pull to
Release
Place sockets of gas strut over ball joints on each
bracket (cylinder-end attaches to truck). Cylinder
(round) socket should press easily over the lower
ball. Press retainer of upper socket into the ball to
lock securely in place. To remove cover from truck,
disengage gas strut at lower joint only.
NOTE: Round socket will release with hand
pressure. Do not remove strut from tonno frame.
Extang Corporation, 5400 S. State Road, Ann Arbor, MI 48108, 734 677-0444, Fax: 734 677-8409 Visit us at: extang.com
12
13
14
15
B. Secure tarp at the middle of tailgate rail.
Secure at center of
tailgate
