Extang Tuff Tonno: Ford F150 Flareside 92-96 - Manual (Page 2)

Extang Corporation, 1901 E. Ellsworth Rd., Ann Arbor, MI 48108, 734 677-0444, Fax: 734 677-8409, Visit us at: www.extang.com
8
6

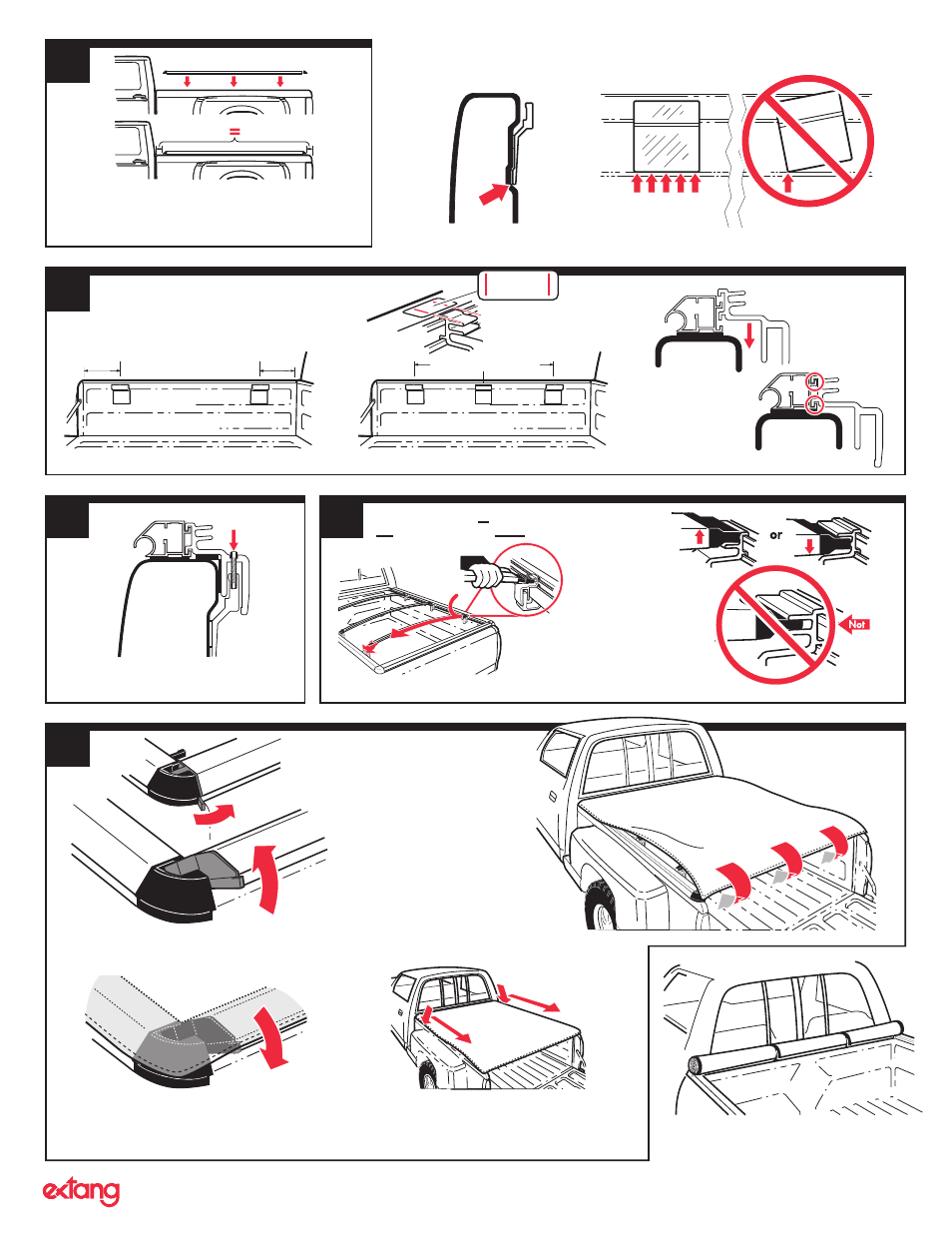

Place the rail assembly over the side of the truck box. Center
rails evenly between cab and tailgate. (NOTE: Some applications
have hard rubber risers (square rubber pad.) A riser must go toward tailgate.
Some applications will have a riser at both ends, (most have no riser).
5
Clamp Spacing (Same for each side)
See the stickers located on each side rail for clamp
position, or refer to the dimensions given below.
Note: Remove stickers after installation.
Insert clamp bolt in place.
Do Not Overtighten
Insert bow onto top or bottom peg.
(Top peg for performance, Bottom for good looks.)
Ends are spring loaded
for easy installation.
Push and hold on
spring end and let the
other end slide on with
the spring action.
SPECIAL
FEATURE:
Two pegs
offer two
height
adjustments.
Note:
Bow End does not
fit between pegs.
7
When positioning wall plates be sure that they fit correctly against the truck bed wall.
The plates must seat against the bottom of, and parallel to, the wall indentation.
12
inches
12
inches Center middle clamp
Note: Measure all distances from screw hole centers.
Press wall plate
firmly in place.
Allow wall
plates to set
over night.
9
A. Release lever on both corners of
tailgate rail and tilt rail up.
B. Attach tarp at front by pressing
down on edge of tarp with the palms
of your hands (about only 12 inches
on each side). Then hook tarp to the
tails rail’s groove and click down to
tighten tarp. See close-up.
D. Finish attaching tarp along each side by
pushing down and sliding you hand towards
each corner. You can feel the “grip” action. C. Close-up of downward rotation of rear
rail. You will feel the “snap” effect and see
it tighten snugly.
PUSH
DOWN
PRESS & SLIDE
YOUR HAND
EASY USE OF TRUCK BED
Tarp may be rolled up and secured with
Velcro® for bulk hauling
Upper
Peg
Lower
Peg
Do Not
Place
Between
the Pegs
After wall plates
have set, insert side
rail clamp all the
way into rail.
Place Clamp
Here
STICKER
