Extang Platinum BlackMax: Ford Sport Trac 07+ - Manual (Page 2)

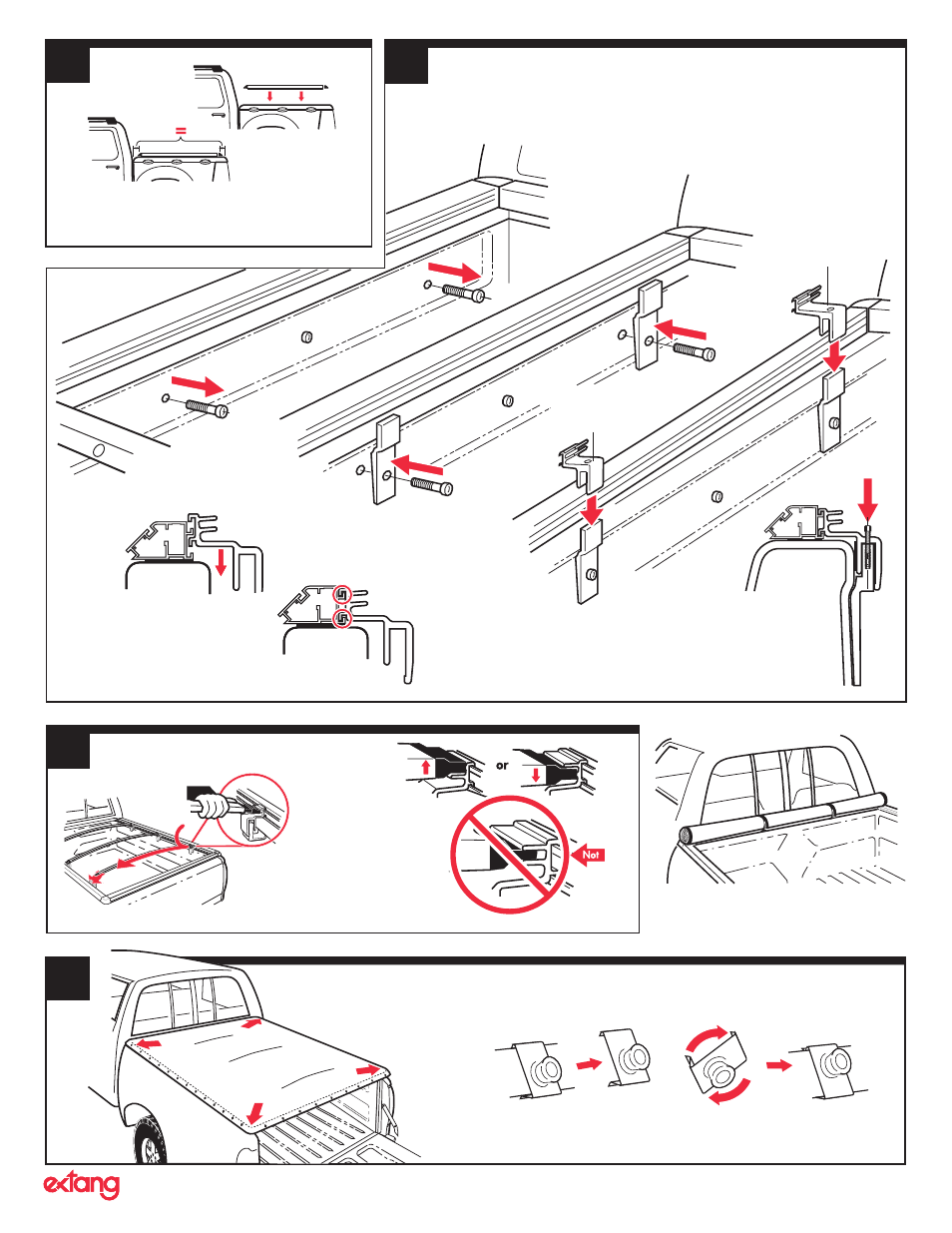

Side Rail Clamping (Same for each side)
Remove two hex socket screws from the inside of the Sport Trac payload bed.
Place Sport Trac Bracket over screw hole and replace with provided metric
screws and secure firmly into bed wall with metric wrench.
Insert bow onto top or bottom peg.
(Top peg for performance, Bottom for good looks.)
Ends are spring loaded
for easy installation.
Push and hold on
spring end and let the
other end slide on with
the spring action.
SPECIAL
FEATURE:
Two pegs
offer two
height
adjustments.
Note:
Bow End does not
fit between pegs.
Attach tarp by starting
at the corners, and
snap in place.
Studs Down
Slides Off Rotate 180�
Studs Up
SUMMER SETTING
Takes up slack in tarp
caused by warm weather.
WINTER SETTING
Allows more slack in tarp
for cold temperatures.
Upper
Peg
Lower
Peg
Do Not
Place
Between
the Pegs
Start at
Corners
TIG HTE R
LOOSER
SPECIAL FEATURE
Weather-adjustable Snaps
TIGHTER
LO OSE R
TIGHTER
LO OSE R
TIG
HT
ER
LO
OS
ER
Top each bracket with a rail
clamp, (long-neck at the cab
end, and short-neck at the
tailgate end), and secure with
a clamp bolt.
Place the rail assembly over the side of the truck box.
Center rails evenly between cab and tailgate.
EASY USE OF TRUCK BED
Tarp may be rolled up and secured with
Velcro® for bulk hauling
Note: Insert side rail
clamp all the way
into rail.
Short Neck
Clamp
Long Neck
Clamp
Extang Corporation, 5400 S. State Road, Ann Arbor, MI 48108, 734 677-0444, Fax: 734 677-8409 Visit us at: extang.com
5 6
7
8
