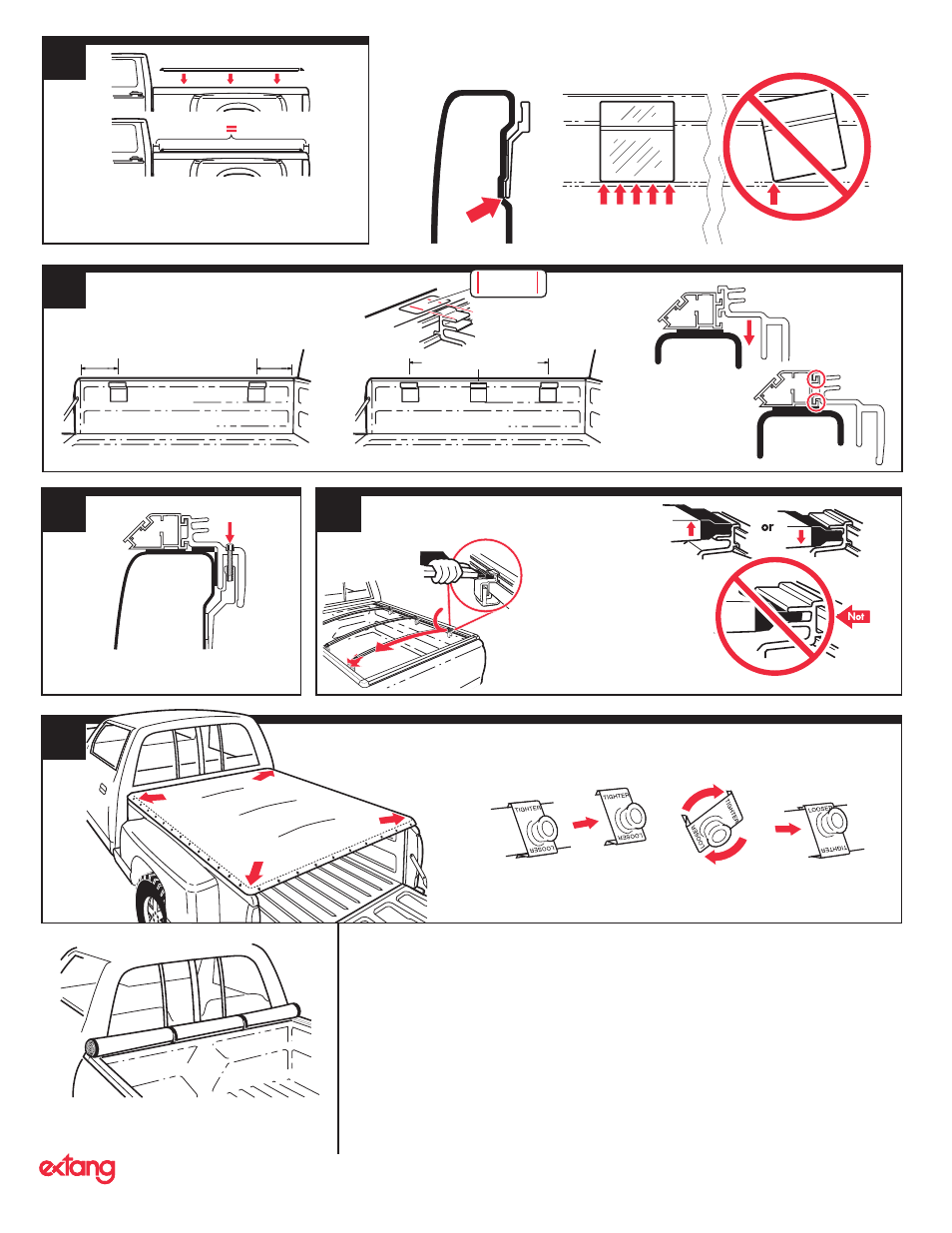

Place the rail assembly over the side of the truck box.
Center rails evenly between cab and tailgate. (NOTE:
Some applications have hard rubber risers (square rubber pad.) A riser
must go toward tailgate. Some applications will have a riser at both
ends, (most have no riser).
5 When positioning wall plates be sure that they fit correctly against the truck bed wall.
The plates must seat against the bottom of, and parallel to, the wall indentation.
Start at
Corners
8
Insert clamp bolt in place.
Do Not Overtighten!
Insert bow onto top or bottom peg.
(Top peg for performance, Bottom for good looks.)
Ends are spring
loaded for easy
installation. Push and
hold on spring end
and let the other end
slide on with the
spring action.
Attach tarp by starting
at the corners, and
snap in place.
EASY USE OF TRUCK BED
Tarp may be rolled up and secured
with Velcro® for bulk hauling
Studs Down
Slides Off Rotate 180°
Studs Up
SUMMER SETTING
Takes up slack in tarp
caused by warm weather.
WINTER SETTING
Allows more slack in tarp
for cold temperatures.
7
9
6
Clamp Spacing (Same for each side)
See the stickers located on each side rail for clamp
position, or refer to the dimensions given below.
Note: Remove stickers after installation.
12
inches
12
inches
Center middle clamp
Press wall plate
firmly in place.
Allow wall
plates to set
over night.
Place Clamp
Here
STICKER
After wall plates
have set, insert
side rail clamp all
the way into rail.
Note: Measure all distances from screw hole centers.
Extang Corporation, 5400 S. State Road, Ann Arbor, MI 48108, 734 677-0444, Fax: 734 677-8409 Visit us at: extang.com
SPECIAL
FEATURE:
Two pegs
offer two
height
adjustments.
Note:
Bow End does not
fit between pegs.
Upper
Peg
Lower
Peg
Do Not
Place
Between
the Pegs
MISSING PARTS?
call Extang at
800-877-2588
Any and all needed parts will be shipped to you directly.
(DO NOT return whole kit to store)
SPECIAL FEATURE
Weather-adjustable Snaps
